神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-027[00]) - OPERATORS CONTROLS (KAI) (CONTROL HANDLES), (YT03M00031F5 & YT03M00031F6) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
662 次

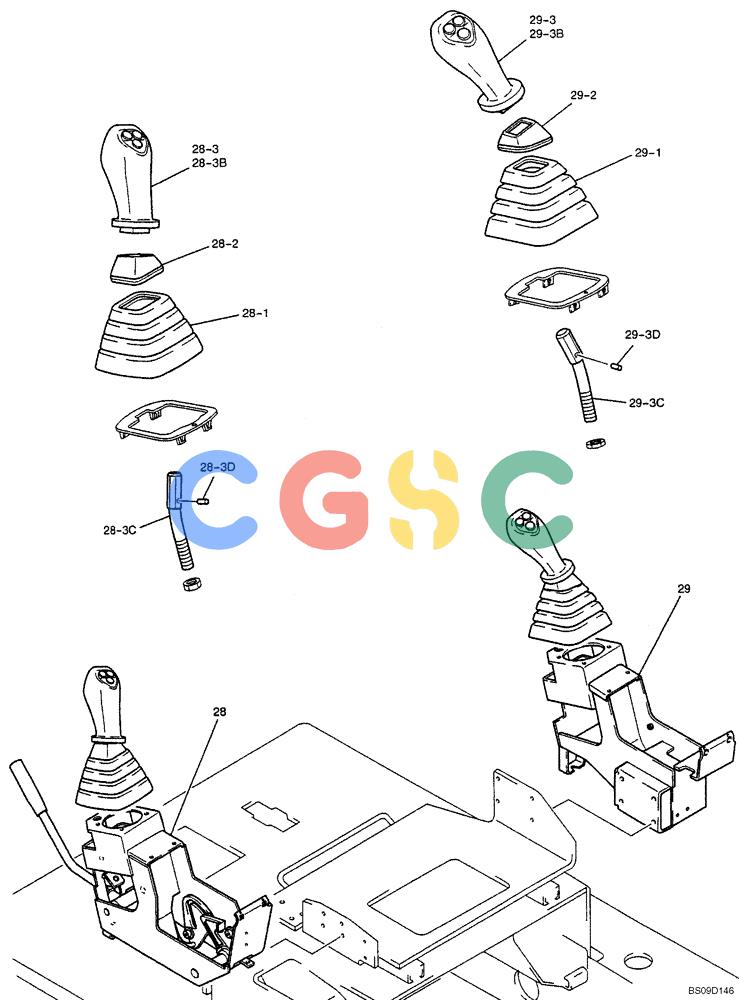

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 28. | LF03M00006F4 | [1] | BOX | KOBAssembly, Left Hand Control |
| 28-1. | LF03M01008P1 | [1] | BELLOWS | KOBBoot |
| 28-2. | LF03M01004P1 | [1] | BOOT | KOB |
| 28-3. | YB03M01003F2 | [1] | GRIP | KOBAssembly (With 3 Switches for AUX Hyd) |
| 28-3B. | LF03M01005F3 | [1] | HANDLE | KOBAssembly (Used for Nibbler Open/Close) |
| 28-3C. | YB03M01002P1 | [1] | LEVER | KOB |
| 28-3D. | ZP26D05028 | [1] | PIN,5mm OD x 28mm L, Slotted | KOBSpring |
| 29. | LF03M00005F5 | [1] | BOX | KOBAssembly, Right Hand Control |
| 29-1. | LF03M01008P1 | [1] | BELLOWS | KOBBoot |
| 29-2. | LF03M01004P1 | [1] | BOOT | KOB |
| 29-3. | YB03M01003F3 | [1] | GRIP | KOBAssembly (With 3 Switches for AUX Hyd) |
| 29-3B. | LF03M01005F3 | [1] | HANDLE | KOBAssembly (Used for Nibbler Open/Close) |
| 29-3C. | YB03M01002P1 | [1] | LEVER | KOB |
| 29-3D. | ZP26D05028 | [1] | PIN,5mm OD x 28mm L, Slotted | KOBSpring |
