沃尔沃零件查询TAMD61A; TAMD62AElectrical SystemContacts and SensorsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
566 次

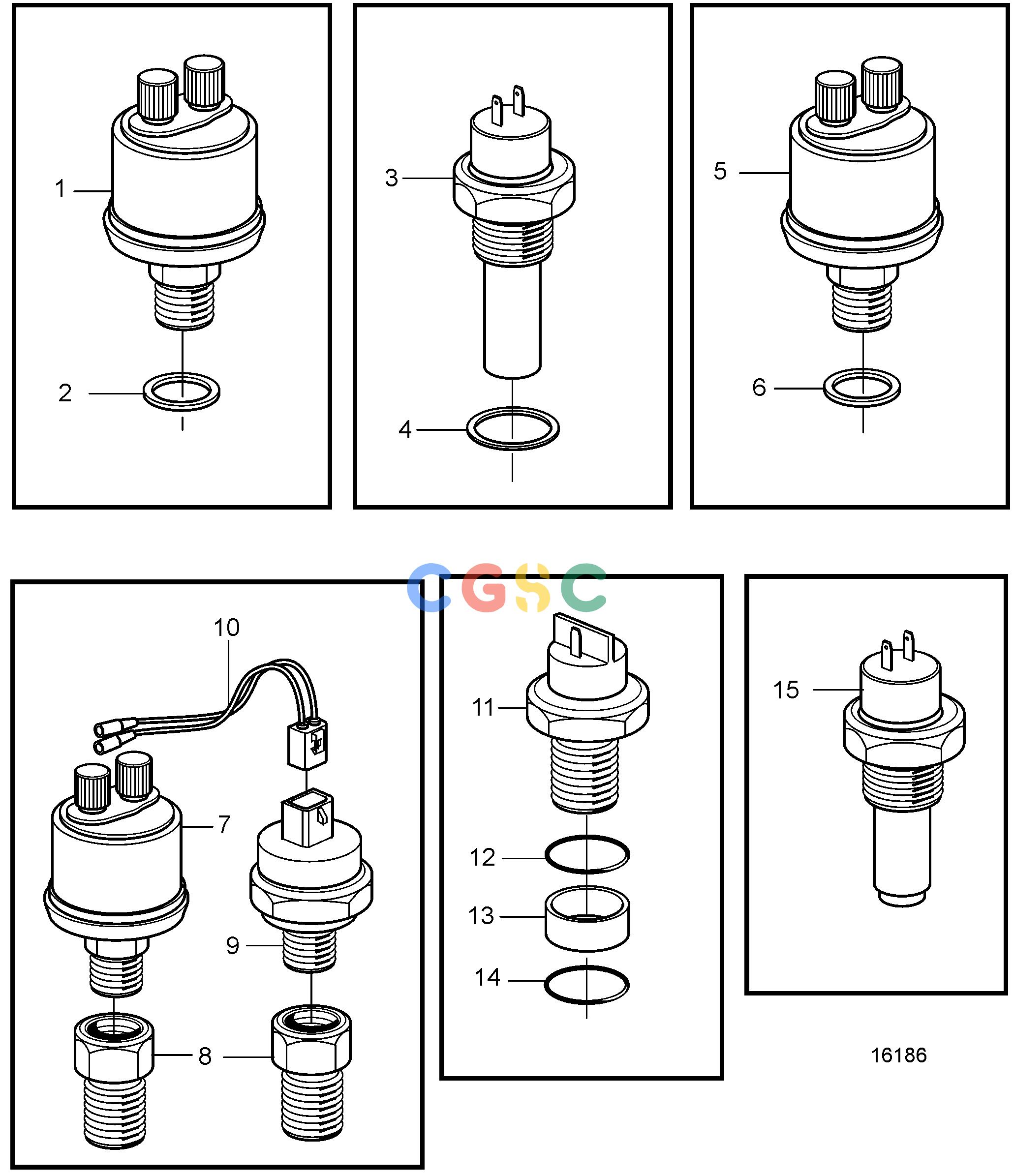

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866840
|
[1] |
Pressure sensor, reverseing gear
|
0-30bar (837781)
|
| 2. |
947624
|
[1] |
Gasket
|
|
| 3. |
843325
|
[1] |
Temperature sensor, coolant temp.
|
|
| 3. |
858596
|
[1] |
Temperature sensor, coolant temp.
|
For double steering positions.
|
| 4. |
11998
|
[1] |
Gasket
|
(947624)
|
| 5. |
866838
|
[1] |
Pressure sensor, turbo
|
Alt, 0-2bar
|
| 5. |
872196
|
[1] |
Pressure sensor, turbo
|
Alt, 0-3bar
|
| 6. |
957181
|
[1] |
Gasket
|
|
| 7. |
866833
|
[1] |
Pressure sensor, oil-engine
|
0-10bar (843231)
|
| 7. |
866834
|
[1] |
Pressure sensor, oil-engine
|
For double steering positions., 0-10bar (843232)
|
| 8. |
862109
|
[2] |
Nipple
|
|
| 9. |
863169
|
[1] |
Pressure monitor, oil
|
Stop, 0,7bar (864415)
|
| 10. |
873601
|
[1] |
Cable
|
|
| 11. |
1502028
|
[1] |
Tachometer sensor
|
|
| 12. |
949656
|
[1] |
O-ring
|
|
| 13. |
865808
|
[1] |
Spacer sleeve
|
L=11,0mm
|
| 14. |
949656
|
[1] |
O-ring
|
|
| 15. |
862177
|
[1] |
Thermo monitor, temperature
|
|
