神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-037[00]) - REMOTE CONTROL LINES (HAND CONTROL) (BREAKER), (YT68H00042F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
332 次

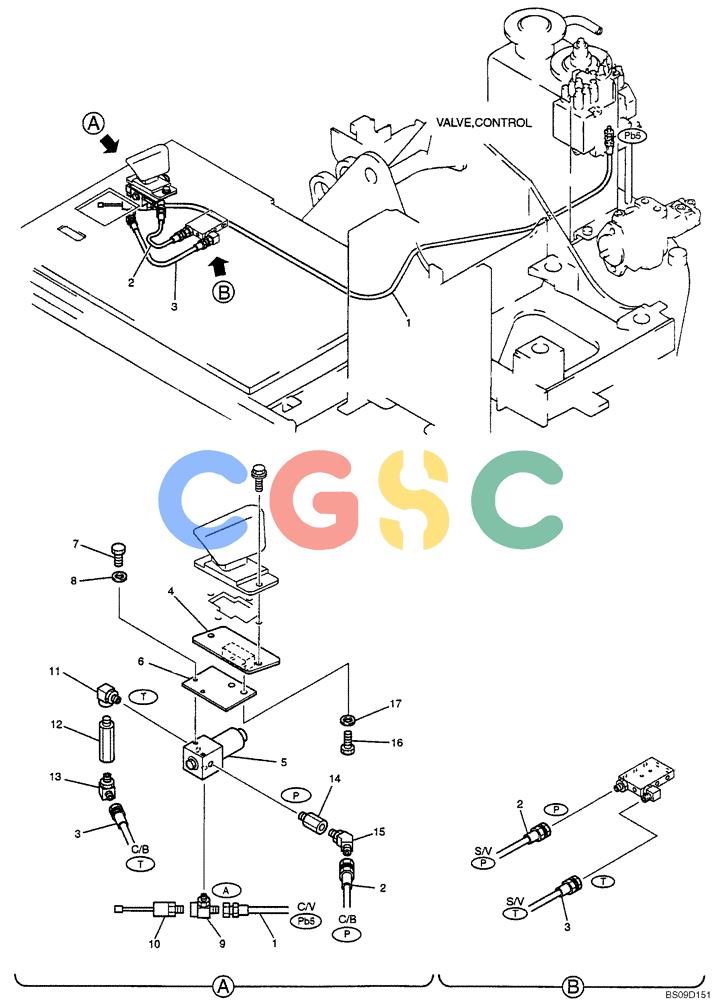

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2420R349D215 | [1] | HOSE | KOB2150mm Long (84-41/94 in) |
| 2. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 3. | 2444R1120D060 | [1] | HOSE | KOB600mm Long (23-5/8 in) |
| 4. | YT68H01015P1 | [1] | SUPPORT | KOB |
| 5. | YN35V00010F2 | [1] | VALVE | KOBAssembly, Solenoid, See Full Model Parts Catalog |
| 6. | YT68H01016P1 | [1] | Bracket | |
| 7. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 8. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 9. | 2444Z3833 | [1] | ELBOW | KOB |
| 10. | GB50S00049F2 | [1] | SWITCH | KOBPressure (Low Pressure) |
| 11. | 2444Z2894 | [1] | 90 ELBOW | KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 12. | 2444Z4101 | [1] | HYD CONNECTOR | KOB1/4"PFx1/4"PFx63mm Long (Incls. O-Ring ZD12P01100) |
| 13. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (PF 1/4)(Incls. O-Ring 237-6004) |
| 14. | HH25R04004G5 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 15. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 16. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 17. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
