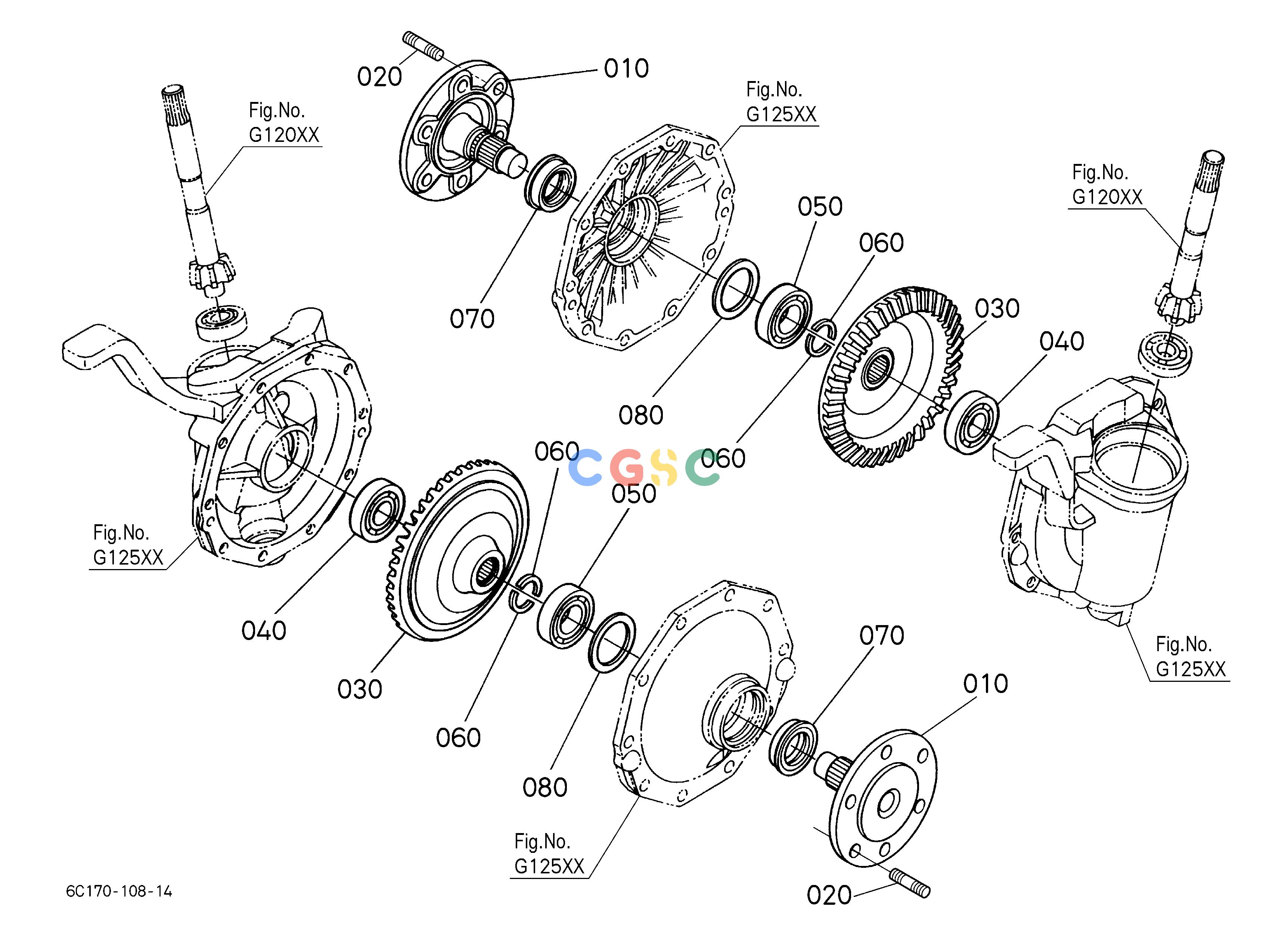

久保田零件查询G13000 FRONT AXLE ## NOTE:ORDER BY REF.No.010 NEW PART and REF.No.020. FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A10057300
|
[2] |
ASSY SHAFT,F.AXLE
|
3.3000(lbs); 1.500
|
| 010. |
3272157323
|
[2] |
SHAFT,FRONT AXLE
|
3.8280(lbs); 1.740
|
| 020. |
6659156565
|
[12] |
BOLT,STUD
|
0.0000(lbs); 0.000
|
| 030. |
3272157311
|
[2] |
BEVEL GEAR
|
0.0000(lbs); 0.000
|
| 030. |
6C07057310
|
[2] |
GEAR,BEVEL
|
6.9300(lbs); 3.150
|
| 040. |
0810106305
|
[2] |
BEARING,BALL
|
0.5060(lbs); 0.230
|
| 050. |
0810106206
|
[2] |
BEARING,BALL
|
0.4290(lbs); 0.195
|
| 060. |
6715656820
|
[4] |
COLLAR,SET
|
0.0088(lbs); 0.004
|
| 070. |
T043057341
|
[2] |
SEAL,OIL
|
0.0000(lbs); 0.000
|
| 070. |
3741057340
|
[2] |
SEAL,OIL
|
0.0990(lbs); 0.045
|
| 080. |
7018051201
|
[2] |
SHIM
|
0.0000(lbs); 0.000
|
| 080. |
6721114990
|
[2] |
SHIM,DIFF.GEAR SHAFT
|
0.0044(lbs); 0.002
|
| 080. |
6662115240
|
[2] |
SHIM,DIFF GEAR 1
|
0.0022(lbs); 0.001
|
