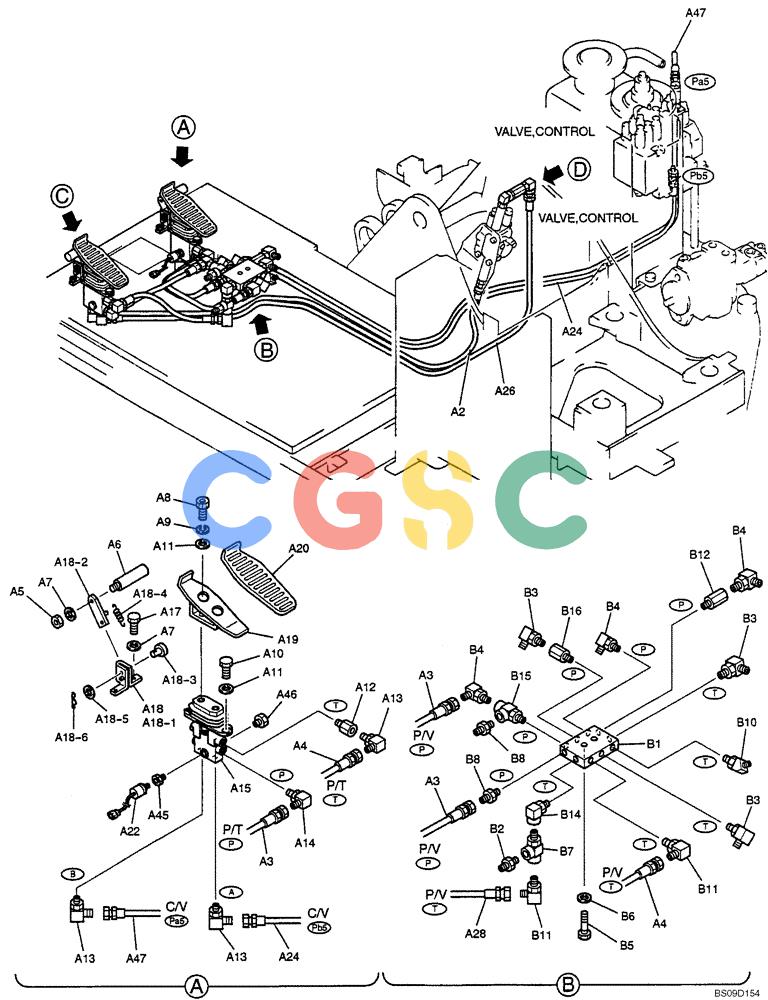

| A2. | 2420R349D200 | [1] | HOSE ASSY. | KOB2000mm Long (78-3/4 in) |
| A3. | 2420R349D040 | [2] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| A4. | 2444R1120D050 | [1] | HOSE | KOB500mm Long (19-11/16 in) |
| A5. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| A6. | PY03M01026P1 | [2] | PIN | KOBM08x1.25x115mm Long |
| A7. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| A8. | ZS28C10020 | [4] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| A9. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A10. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| A11. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A12. | 2444Z2525 | [2] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| A13. | ZH32X04000 | [7] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (PF 1/4)(Incls. O-Ring 237-6004) |
| A14. | HH35X04004G3 | [2] | 90 ELBOW | KOB90° -- 1/4"PF (Incls. O-Ring ZD12P01100) |
| A15. | YN30V00080F1 | [2] | VALVE | KOBAssembly, Pilot, See Full Model Parts Catalog |
| A17. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| A18. | YT30M01002F1 | [1] | LOCK | KOBAssembly, Right Hand |
| A18-1. | PY30M01004P1 | [1] | SUPPORT | KOB |
| A18-2. | YT30M01004P1 | [1] | LOCK | KOBLever |
| A18-3. | HP45X10022G1 | [1] | PIN | KOB Superseded by part number: PM55M01012P1 |
| A18-4. | HP26T09002G1 | [1] | SPRING | KOB |
| A18-5. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A18-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| A19. | YN03M01265P1 | [2] | PEDAL | KOB |
| A20. | YN03M01266P2 | [2] | RUBBER SLEEVE | KOB |
| A22. | GB50S00049F2 | [2] | SWITCH | KOBPressure (Low Pressure) |
| A23. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A24. | 2420R349D215 | [1] | HOSE | KOB2150mm Long (84-41/94 in) |
| A26. | 2420R349D230 | [1] | HOSE ASSY. | KOB2300mm Long (90-1/2 in) |
| A28. | 2444R1120D042 | [1] | FLEXIBLE HOSE | KOB420mm Long (16-1/2 in) |
| A34. | YT30M01005F1 | [1] | LOCK | KOBAssembly, Left Hand |
| A34-1. | PY30M01003P1 | [1] | SUPPORT | KOB |
| A34-2. | YT30M01004P1 | [1] | LOCK | KOBLever |
| A34-3. | HP45X10022G1 | [1] | PIN | KOB Superseded by part number: PM55M01012P1 |
| A34-4. | HP26T09002G1 | [1] | SPRING | KOB |
| A34-5. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A34-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| A43. | 2444Z2894 | [1] | 90 ELBOW | KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| A44. | 2444T2524 | [1] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| A45. | 2444Z3322D2 | [2] | CONNECTION | KOB1/4"PF x 1/8"PT x 27mm Long (Incls. O-Ring ZD12P01100) |
| A46. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| A47. | 2420R349D280 | [1] | HOSE | KOBPF 1/4 Superseded by part number: HX21E04280DX |
| B1. | 2416N6141 | [1] | BLOCK | KOB |
| B2. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| B3. | ZH32X06000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring 237-6006) |
| B4. | ZH32X04000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (PF 1/4)(Incls. O-Ring 237-6004) |
| B5. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| B6. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B7. | HH55Q06006G1 | [1] | TEE | KOB3/8" PF (Incls. O-Ring ZD12P01400) |
| B8. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| B10. | ZH42X06000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| B11. | ZH32X04006 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- (Incls. O-Ring 237-6006) |
| B12. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| B14. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1 |
| B15. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB1/4" PF (Incls. O-Ring ZD12P01100) |
| B16. | 2444Z2891 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
