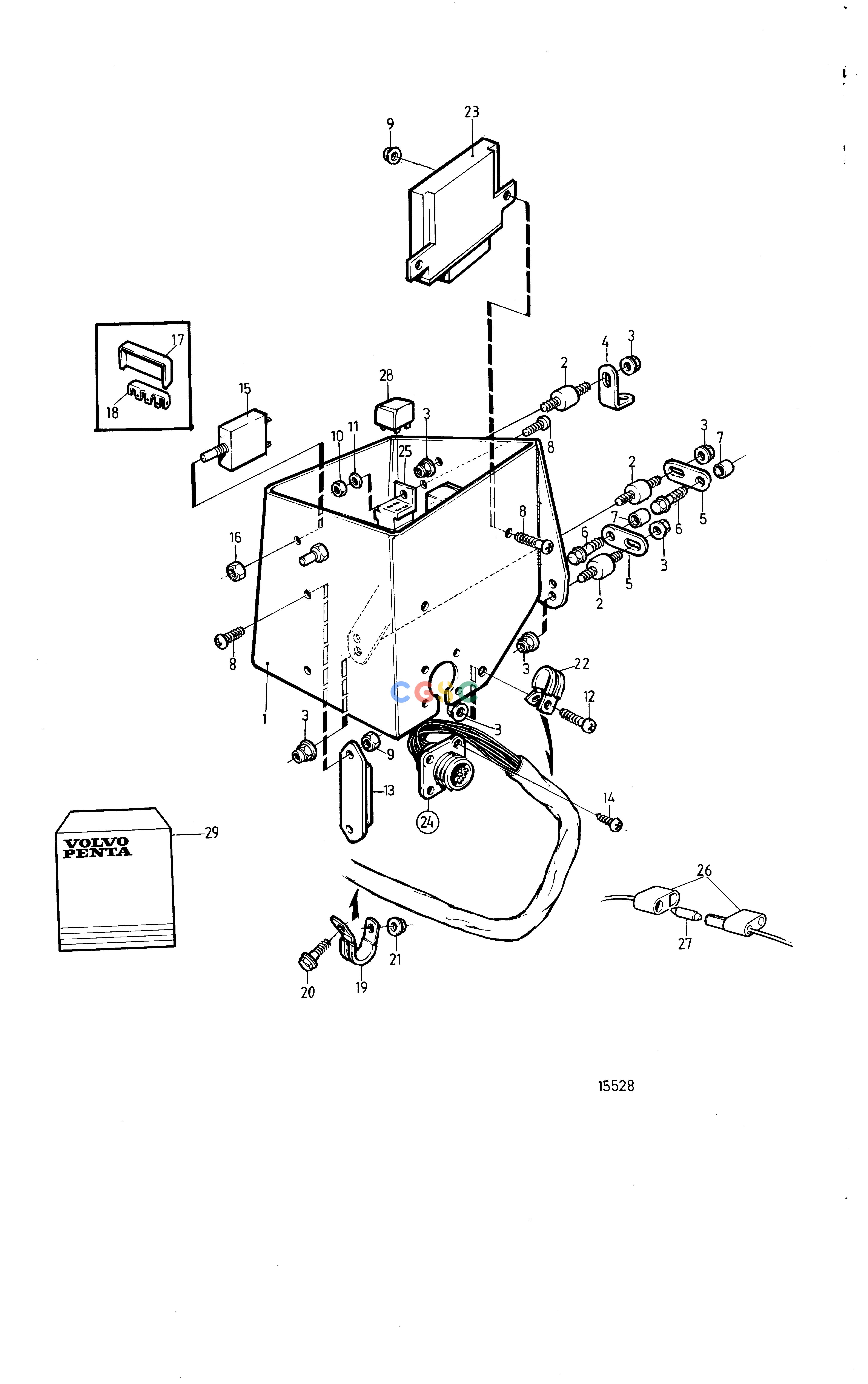

沃尔沃零件查询TAMD61A; TAMD62AElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
312 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866128
|
[1] |
Cover
|
Included in kit 876679.
|
| 2. |
3574797
|
[3] |
Vibration damper
|
Included in kit 876679.
|
| 3. |
945407
|
[7] |
Flange nut
|
Included in kit 876679., M6
|
| 4. |
965555
|
[1] |
Bracket
|
Included in kit 876679.
|
| 5. |
965534
|
[2] |
Bracket
|
Included in kit 876679.
|
| 6. |
948217
|
[2] |
Flange screw
|
Included in kit 876679.
|
| 7. |
821539
|
[2] |
Spacer sleeve
|
Included in kit 876679.
|
| 8. |
967378
|
[6] |
Cross recessed screw
|
Included in kit 876679., M5x10mm
|
| 9. |
965483
|
[4] |
Flange nut
|
Included in kit 876679., M5
|
| 10. |
955780
|
[2] |
Hexagon nut
|
Included in kit 876679., M5
|
| 11. |
941905
|
[4] |
Spring washer
|
Included in kit 876679.
|
| 12. |
967390
|
[1] |
Cross recessed screw
|
Included in kit 876679., M6x12mm
|
| 13. |
1234048
|
[1] |
Bottom section
|
Included in kit 876679.
|
| 14. |
945761
|
[4] |
Cross recessed screw
|
Included in kit 876679.
|
| 15. |
966689
|
[2] |
Fuse
|
|
| 16. |
|
|
|
|
| 17. |
1234264
|
[1] |
Upper section
|
|
| 18. |
1234263
|
[1] |
Pin
|
|
| 19. |
949747
|
[1] |
Clamp
|
|
| 20. |
946440
|
[1] |
Flange screw
|
|
| 21. |
955781
|
[1] |
Hexagon nut
|
|
| 22. |
952630
|
[1] |
Clamp
|
|
| 23. |
863481
|
[1] |
Timer relay
|
|
| 24. |
862860
|
[1] |
Cable block
|
|
| 25. |
977184
|
[2] |
Housing
|
|
| 26. |
966334
|
[1] |
Fuse holder
|
|
| 27. |
942785
|
[1] |
Fuse
|
12V, 16A
|
| 27. |
11433
|
[1] |
Fuse
|
24V, 8A
|
| 28. |
876037
|
[2] |
Relay kit
|
12V, Start-Stop
|
| 28. |
8153600
|
[2] |
Relay
|
24V, Start-Stop, (1504951)
|
| 29. |
876679
|
[1] |
Conversion kit
|
|
