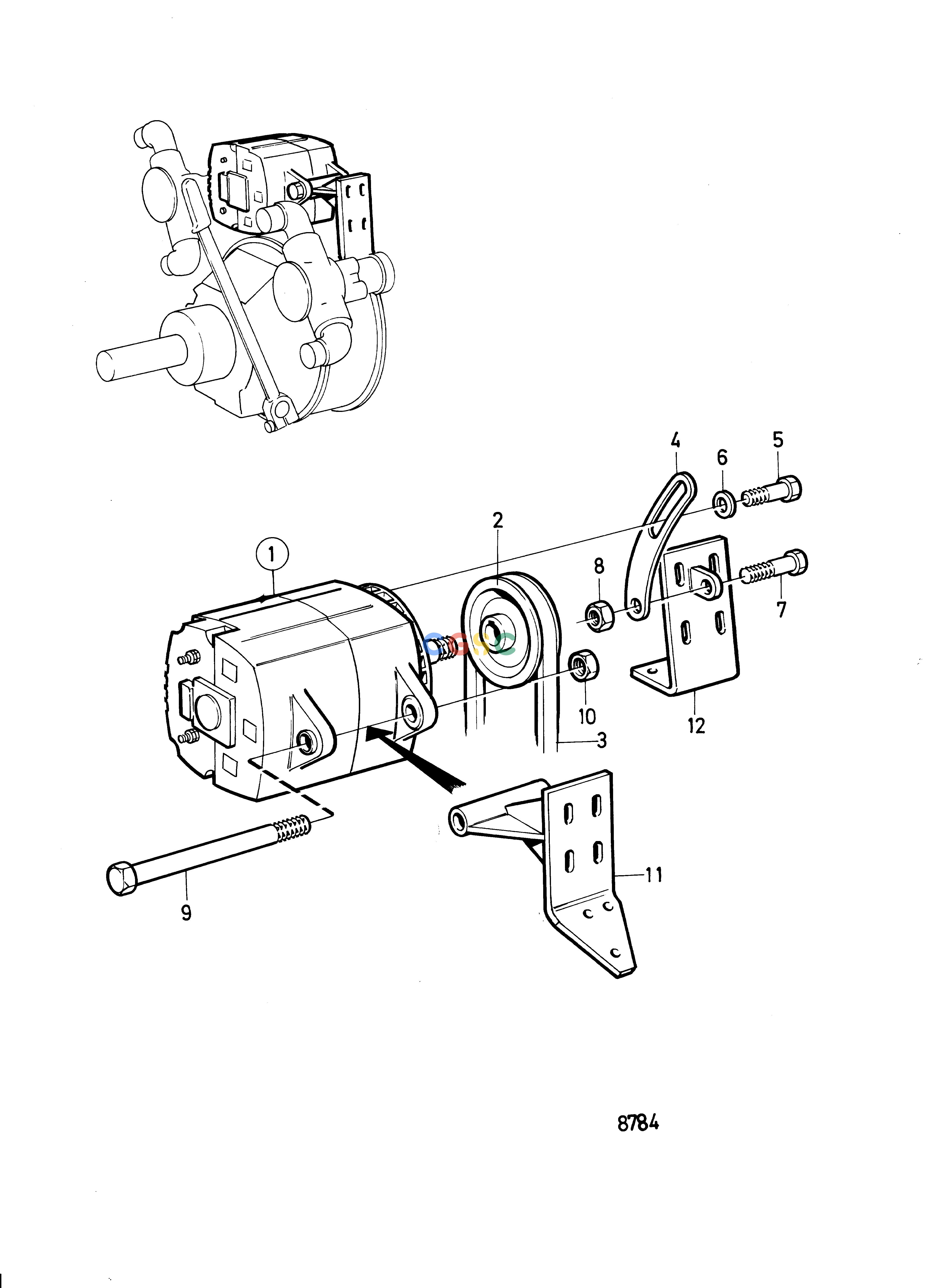

沃尔沃零件查询TAMD61A; TAMD62AElectrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849747
|
[1] |
Alternator
|
14V 130A
|
| 1. |
3803577
|
[1] |
Alternator
|
14V 130A
|
| 1. |
|
|
|
|
| 1. |
849748
|
[1] |
Alternator
|
28V 100A
|
| 1. |
3803499
|
[1] |
Alternator, exch
|
28V 100A
|
| 2. |
862355
|
[1] |
Pulley
|
|
| 3. |
966858
|
[1] |
V-belt
|
L=1300
|
| 4. |
848492
|
[1] |
Tensioner
|
|
| 5. |
955560
|
[1] |
Hexagon screw
|
|
| 6. |
955898
|
[1] |
Washer
|
|
| 7. |
973083
|
[1] |
Flange screw
|
|
| 8. |
971095
|
[1] |
Flange nut
|
|
| 9. |
970987
|
[1] |
Hexagon screw
|
|
| 10. |
971096
|
[1] |
Flange nut
|
|
| 11. |
849377
|
[1] |
Bracket
|
|
| 12. |
849378
|
[1] |
Bracket
|
|
