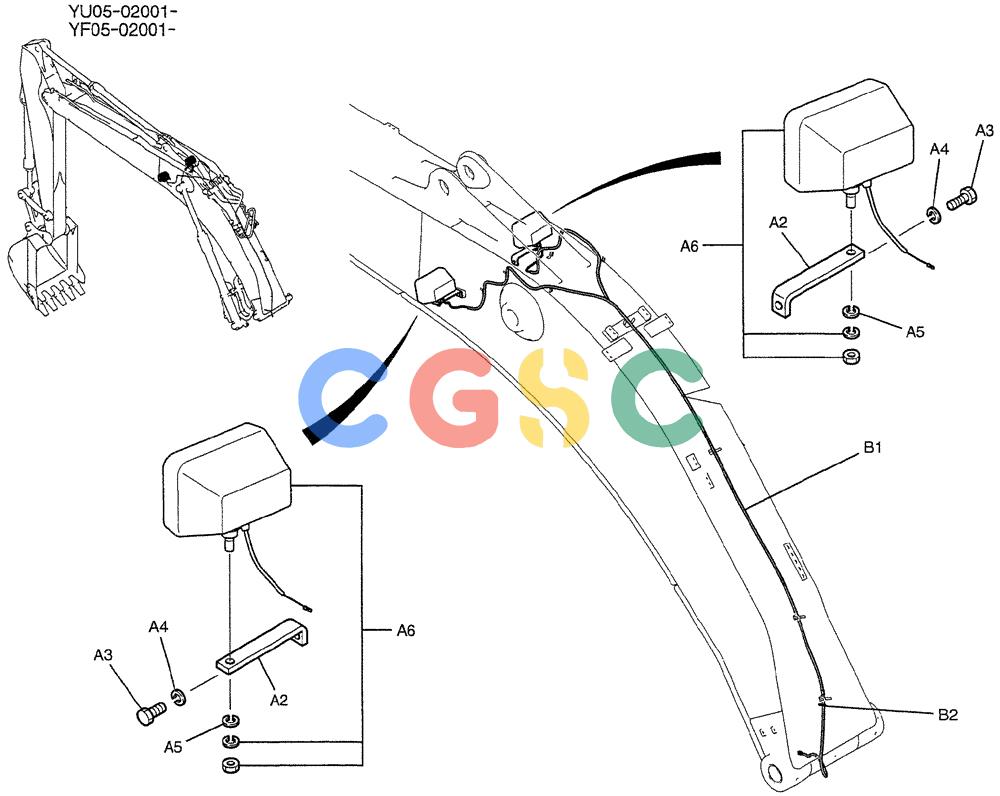

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (03-004) - LIGHT INSTAL (BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
986 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC80E00004F1 | [1] | LIGHT | KOBINSTAL, BOOM |
| A2. | 2416T13056 | [2] | BRACKET | KOB |
| A3. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBCap |
| A4. | 2418R323D11 | [2] | WASHER | KOB |
| A5. | 2418R323D13 | [2] | LOCK WASHER | KOB |
| A6. | YN80S00012F1 | [2] | LIGHT | KOBASSY, SEE FIG. 03-005 Superseded by part number: 2456R442F1 |
| . . | YB15E00006F1 | [1] | HARNESS | KOBASSY, BOOM |
| B1. | YB15E01002P1 | [1] | HARNESS | KOBHARNESS |
| B2. | PY01P01043D3 | [1] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
