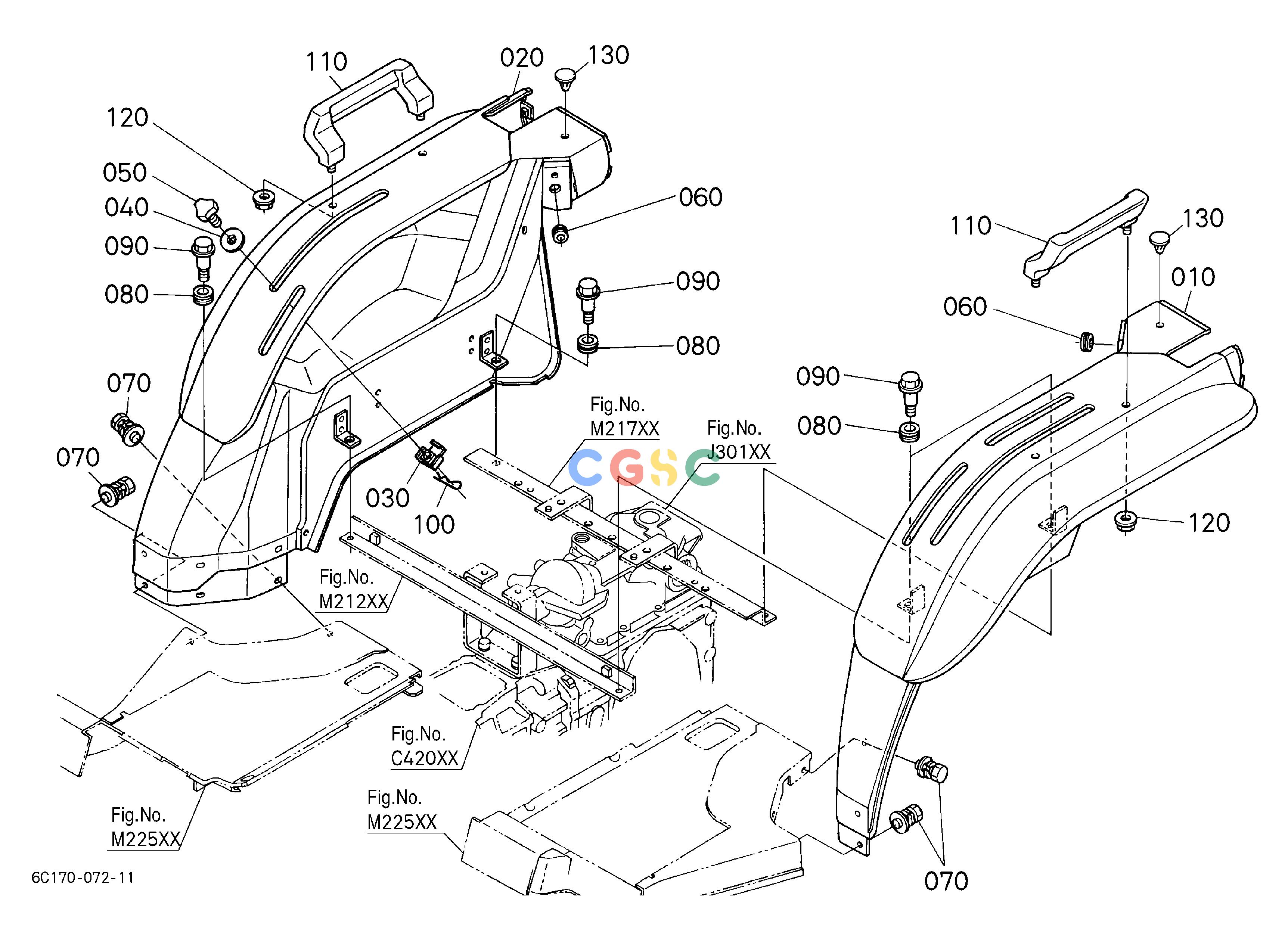

久保田零件查询M21002 FENDER [AU] [NZ] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07052710
|
[1] |
COMP.FENDER LH
|
15.1140(lbs); 6.870
|
| 020. |
6C07052720
|
[1] |
COMP.FENDER RH
|
10.9340(lbs); 4.970
|
| 030. |
6C07052140
|
[1] |
HOLDER
|
0.0418(lbs); 0.019
|
| 030. |
6C07052142
|
[1] |
HOLDER
|
0.0418(lbs); 0.019
|
| 040. |
0401560080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 050. |
0182050815
|
[1] |
BOLT KNOB
|
0.0572(lbs); 0.026
|
| 050. |
6C07052150
|
[1] |
BOLT KNOB
|
0.0572(lbs); 0.026
|
| 060. |
3215029180
|
[2] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
| 070. |
0112560816
|
[6] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
0112550818
|
[6] |
BOLT
|
0.0330(lbs); 0.015
|
| 080. |
6A10051380
|
[4] |
CUSHION
|
0.0066(lbs); 0.003
|
| 090. |
6C04051342
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
| 100. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 100. |
0552560600
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 110. |
6C07052170
|
[2] |
HANDRAIL
|
0.5500(lbs); 0.250
|
| 120. |
0213150100
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 130. |
3824029570
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
