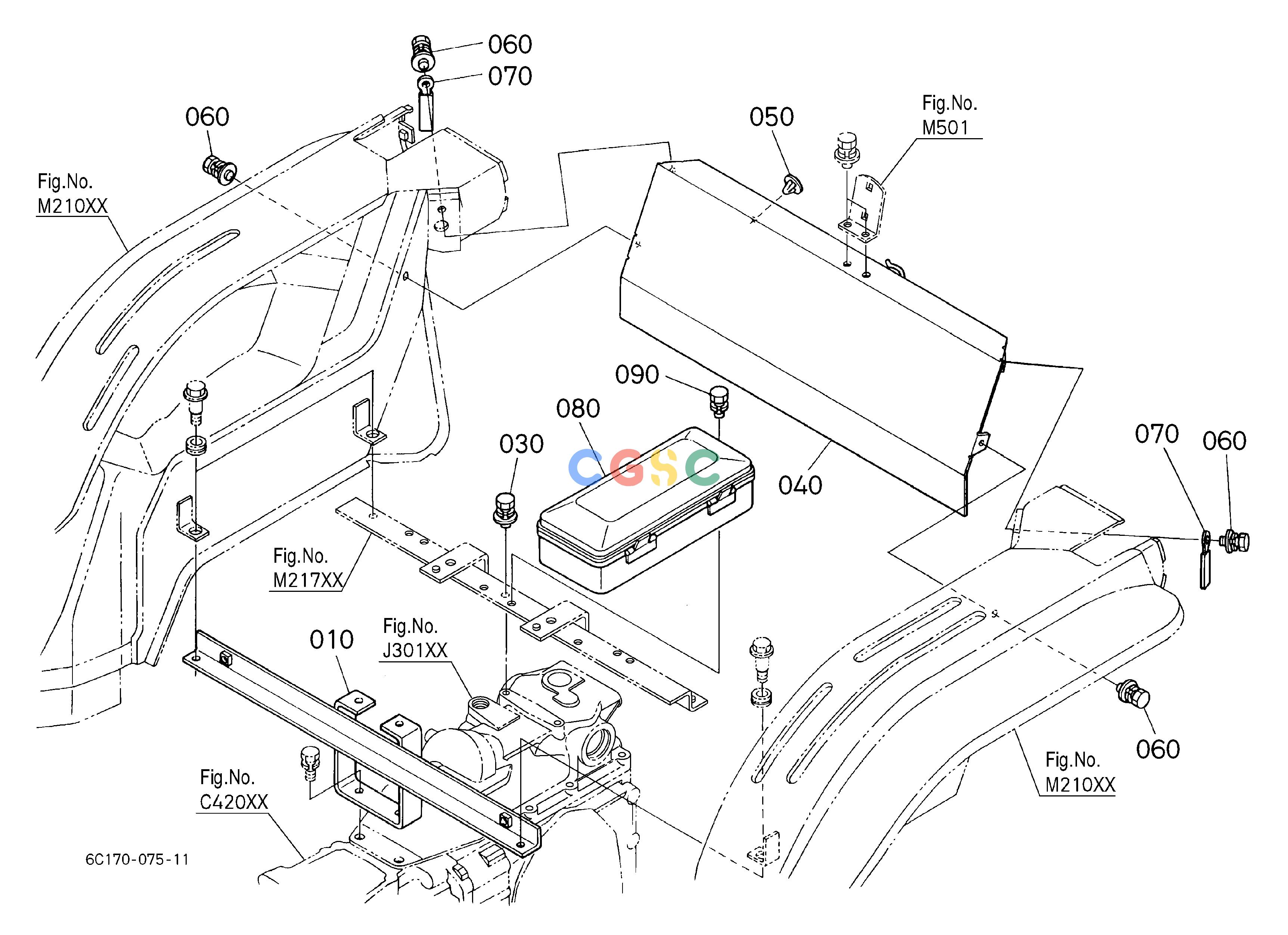

久保田零件查询M21203 FENDER STAY [NZ] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
566 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07052730
|
[1] |
STAY FENDER
|
2.9480(lbs); 1.340
|
| 030. |
0112551020
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 040. |
6C07052752
|
[1] |
STAY FENDER
|
5.6320(lbs); 2.560
|
| 050. |
3824029570
|
[1] |
PLUG
|
0.0022(lbs); 0.001
|
| 060. |
0112560816
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
1382467580
|
[2] |
CLAMP CORD
|
0.0132(lbs); 0.006
|
| 080. |
6C04052790
|
[1] |
CASE TOOLS
|
0.5060(lbs); 0.230
|
| 090. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
