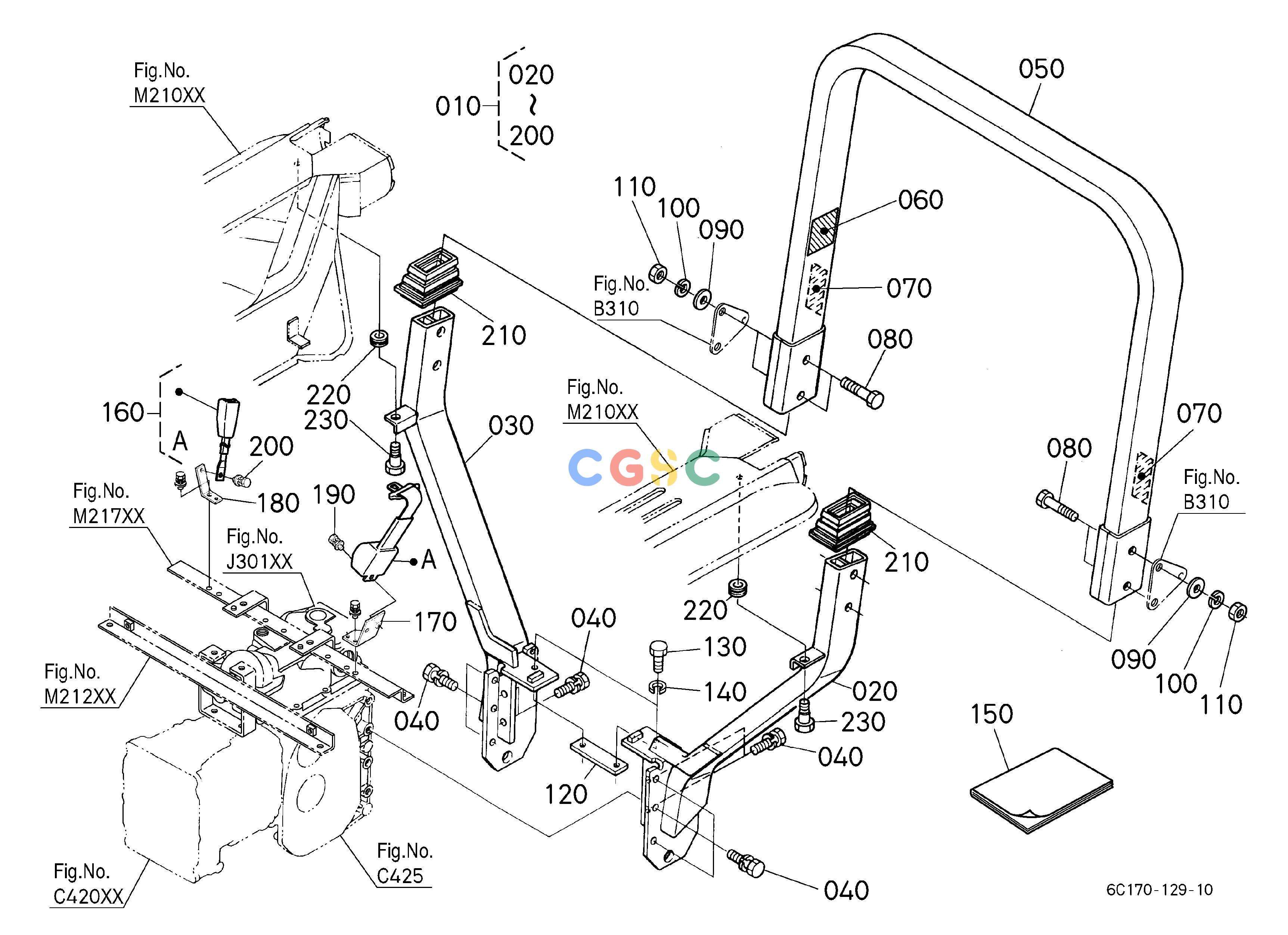

久保田零件查询M30103 ROPS(RIGID TYPE) ## S.No.>=53227 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
317 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9999999999
|
[1] |
ASSY ROPS
|
0.0000(lbs); 0.000
|
| 020. |
9999999999
|
[1] |
FRAME LOWER LH
|
0.0000(lbs); 0.000
|
| 030. |
9999999999
|
[1] |
ASSY FRAME LOWER RH
|
0.0000(lbs); 0.000
|
| 040. |
0112351235
|
[10] |
BOLT
|
0.0902(lbs); 0.041
|
| 050. |
9999999999
|
[1] |
FRAME UPPER
|
0.0000(lbs); 0.000
|
| 060. |
6C14047460
|
[1] |
LABEL ROPS WARNING
|
0.0022(lbs); 0.001
|
| 060. |
6C14147460
|
[1] |
LABEL ROPS WARNING
|
0.0022(lbs); 0.001
|
| 070. |
6C14054990
|
[2] |
REFLECTOR LABEL
|
0.0066(lbs); 0.003
|
| 080. |
0Y10950944
|
[4] |
BOLT
|
0.2200(lbs); 0.100
|
| 090. |
0401360140
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 100. |
0Y45050090
|
[4] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 110. |
0Y20550090
|
[4] |
NUT
|
0.0528(lbs); 0.024
|
| 120. |
9999999999
|
[1] |
PLATE CONNECTOR
|
0.0000(lbs); 0.000
|
| 130. |
0Y10950616
|
[2] |
BOLT
|
0.4400(lbs); 0.200
|
| 140. |
0Y45050060
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 150. |
9999999999
|
[1] |
MANUAL ASSEMBLY
|
0.0000(lbs); 0.000
|
| 160. |
K256156850
|
[1] |
ASSY BELT SEAT
|
1.7820(lbs); 0.810
|
| 170. |
6C07052760
|
[1] |
STAY SEAT BELT LH
|
0.2530(lbs); 0.115
|
| 180. |
6C04052770
|
[1] |
STAY SEAT BELT RH
|
0.2200(lbs); 0.100
|
| 190. |
0113561020
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 200. |
0113561025
|
[1] |
BOLT
|
0.0594(lbs); 0.027
|
| 210. |
6C04072210
|
[2] |
COVER ROPS
|
0.1452(lbs); 0.066
|
| 220. |
6A10051380
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 230. |
6C04051342
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
