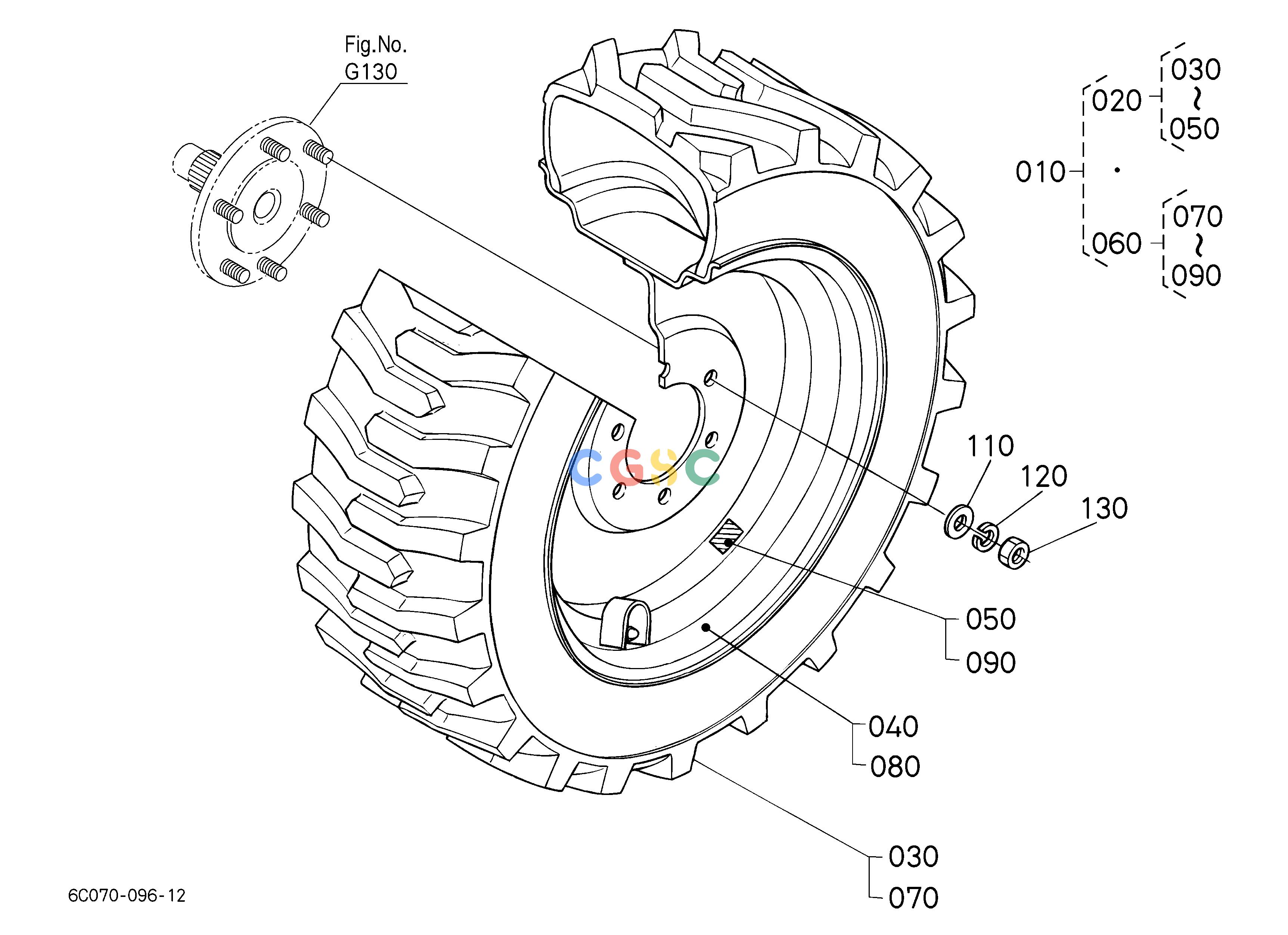

久保田零件查询R10104 FRONT WHEEL(23 8.50-14R4) [EXCEPT [AU] [NZ]] FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
632 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272150500
|
[1] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
3272150510
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 030. |
3272150530
|
[1] |
TIRE
|
24.2000(lbs); 11.000
|
| 040. |
3272150540
|
[1] |
WHEEL
|
24.2000(lbs); 11.000
|
| 050. |
3272150550
|
[1] |
LABEL LH
|
0.0000(lbs); 0.000
|
| 060. |
3272150520
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 070. |
3272150530
|
[1] |
TIRE
|
24.2000(lbs); 11.000
|
| 080. |
3272150540
|
[1] |
WHEEL
|
24.2000(lbs); 11.000
|
| 090. |
3272150560
|
[1] |
LABEL RH
|
0.0000(lbs); 0.000
|
| 110. |
0401360120
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 120. |
0451260120
|
[12] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 130. |
0217650120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
