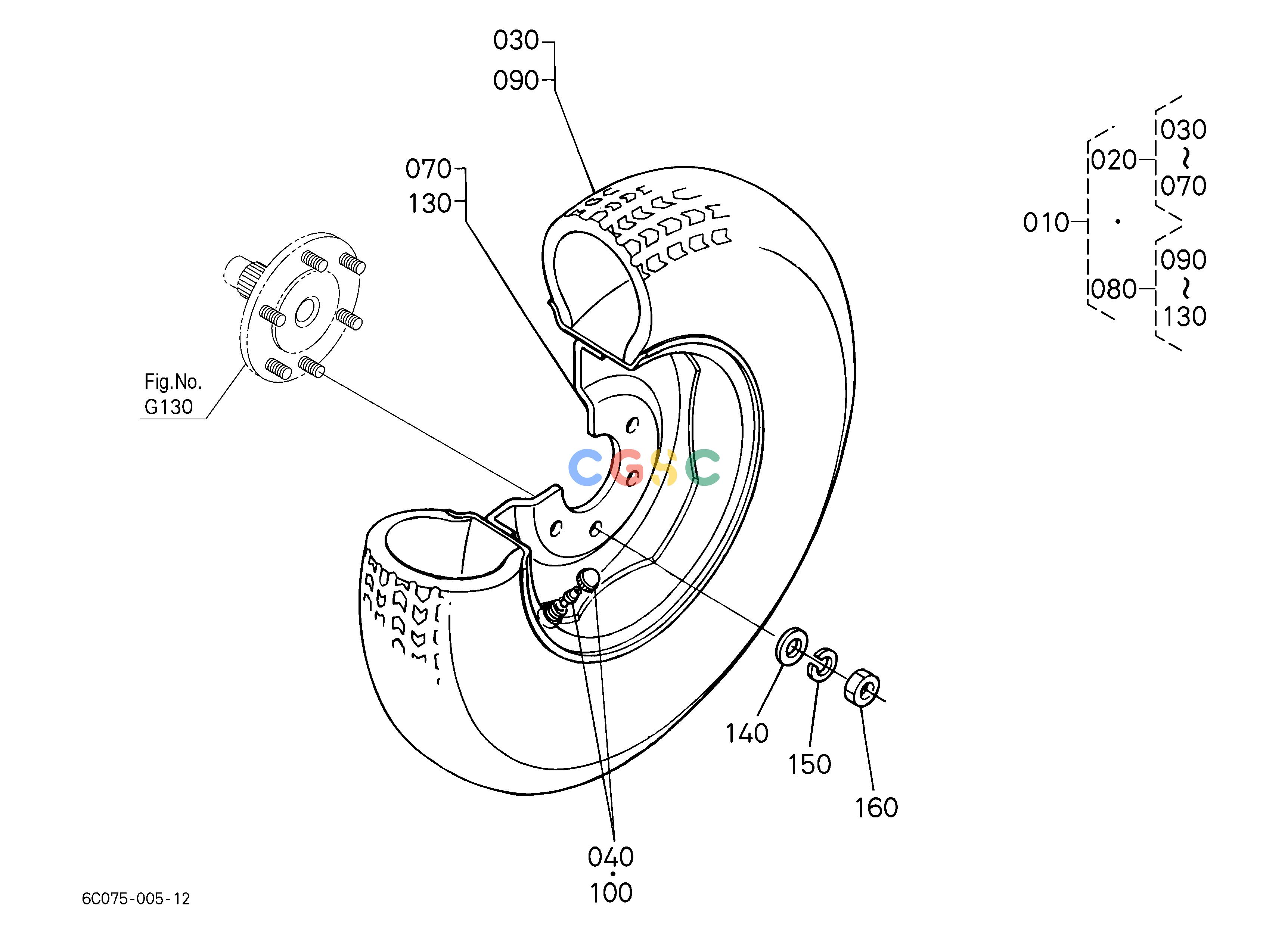

久保田零件查询R10107 FRONT WHEEL(24 8.50-12) [AU] [NZ] FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
934 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07050110
|
[1] |
ASSY TIRE
|
31.9000(lbs); 14.500
|
| 020. |
6C07050120
|
[1] |
ASSY TIRE LH
|
31.9000(lbs); 14.500
|
| 030. |
6781057530
|
[1] |
TIRE
|
16.7200(lbs); 7.600
|
| 040. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 070. |
6C04250340
|
[1] |
WHEEL
|
15.8620(lbs); 7.210
|
| 080. |
6C07050130
|
[1] |
ASSY TIRE RH
|
31.9000(lbs); 14.500
|
| 090. |
6781057530
|
[1] |
TIRE
|
16.7200(lbs); 7.600
|
| 100. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 130. |
6C04250340
|
[1] |
WHEEL
|
15.8620(lbs); 7.210
|
| 140. |
0401360120
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 150. |
0451260120
|
[12] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 160. |
0217650120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
