神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-099[00]) - ARM GROUP, 2.07M (6FT 9IN) (NIBBLER & BREAKER), (YT12B00067F4) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
930 次

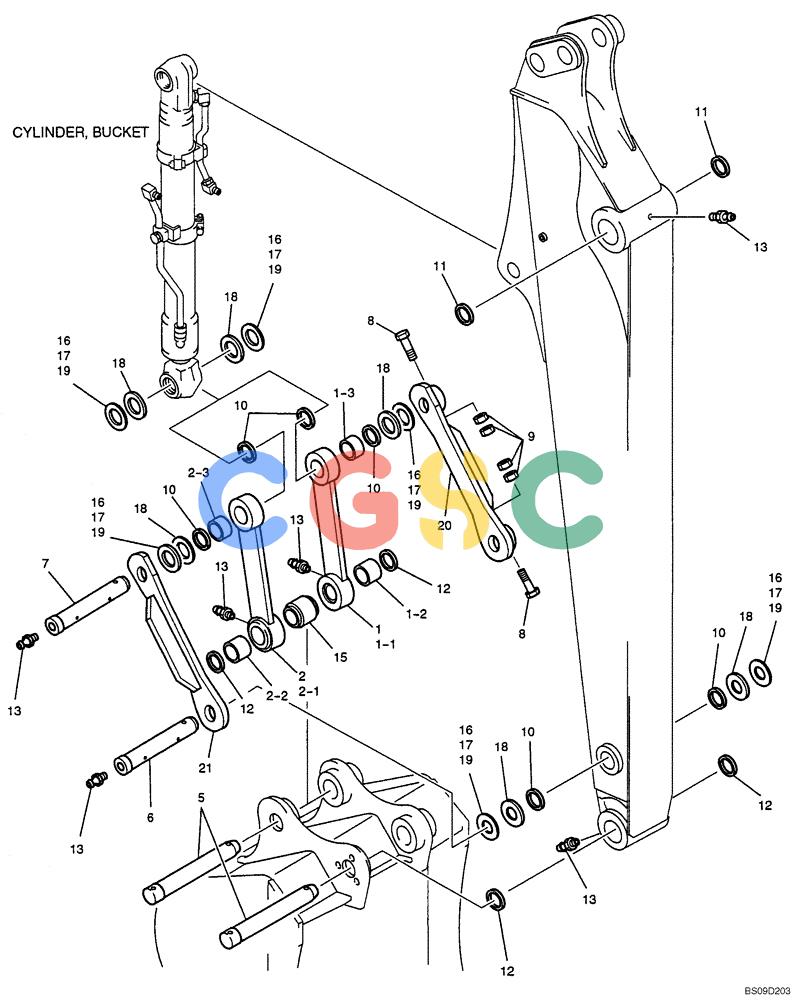

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT12B01022F1 | [1] | LINK | KOB |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONBucket Link |
| 1-2. | YR12B01079P1 | [1] | BUSHING | KOB |
| 1-3. | LE12B01055P1 | [1] | BUSHING | KOB |
| 2. | YT12B01023F1 | [1] | LINK ASSY. | KOBBucket |
| 2-1. | NSS | [1] | NOT SOLD SEPARAT | CONBucket Link |
| 2-2. | YR12B01079P1 | [1] | BUSHING | KOB |
| 2-3. | LE12B01055P1 | [1] | BUSHING | KOB |
| 5. | YT12B01113P1 | [2] | PIN | KOB Superseded by part number: |
| 6. | YT12B01018P1 | [1] | PIN | KOB Superseded by part number: YT12B01345P1 |
| 7. | YT12B01019P1 | [1] | PIN | KOB Superseded by part number: YT12B01346P1 |
| 8. | HS18C12100G2 | [2] | SCREW | KOBM12x1.75x100mm |
| 9. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 10. | 2445R138D19 | [6] | SEAL,50mm ID x 60mm OD x 4mm Thk | KOBDust -- ID 50 x OD 60 x Th 4mm |
| 11. | 2445R220D1 | [2] | SEAL,60mm ID x 75mm OD x 5mm Thk | KOBDust -- ID 60 x OD 75 x Th 5mm |
| 12. | 2445R220D5 | [4] | SEAL,50mm ID x 65mm OD x 5mm Thk | KOBDust -- ID 50 x OD 65 x Th 5mm Superseded by part number: 71436184 |
| 13. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 15. | 2418T20767 | [1] | SPACER | KOB |
| 16. | B16T0442D41 | [6] | SHIM,80mm OD x 52mm ID x 0.9mm Thk | KOBID 52 x OD 80 x Th 0.9mm |
| 17. | B16T0442D25 | [6] | SHIM,80mm OD x 52mm ID x 1.2mm Thk | KOBID 52 x OD 80 x Th 1.2mm |
| 18. | YR12B01028P1 | [6] | SHIM,2.0mm Thk | KOB(2.0) |
| 19. | B16T0442D54 | [6] | SHIM,52mm ID x 80mm OD x 0.5mm Thk | KOBID 52 x OD 80 x Th 0.5mm |
| 20. | YT12B01024P1 | [1] | LINK | KOB Superseded by part number: YT12B01348P1 |
| 21. | YT12B01025P1 | [1] | LINK | KOB |
