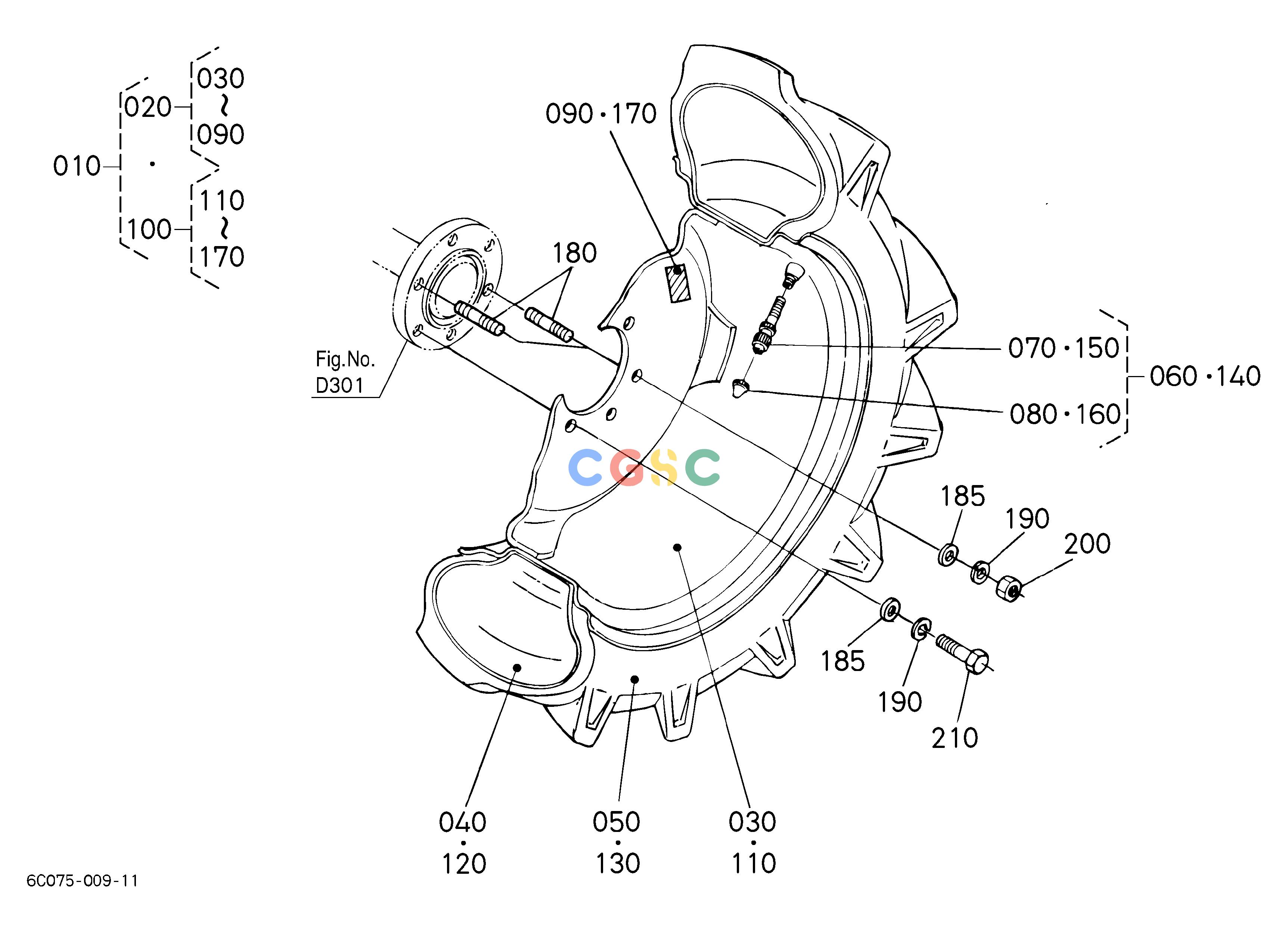

久保田零件查询R11006 REAR WHEEL(12.4-16) [AU] [NZ] REAR TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641950010
|
[1] |
ASSY REAR WHEEL
|
198.0000(lbs); 90.00
|
| 020. |
6641950100
|
[1] |
ASSY TIRE LH
|
99.0000(lbs); 45.000
|
| 030. |
6641827950
|
[1] |
WHEEL
|
30.8000(lbs); 14.000
|
| 040. |
6781050120
|
[1] |
TUBE
|
9.9000(lbs); 4.500
|
| 050. |
6781050130
|
[1] |
TIRE
|
59.4000(lbs); 27.000
|
| 060. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 070. |
3215027740
|
[1] |
VALVE
|
0.0066(lbs); 0.003
|
| 080. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 090. |
6641950140
|
[1] |
LABEL LH
|
0.0022(lbs); 0.001
|
| 100. |
6641950200
|
[1] |
ASSY TIRE RH
|
99.0000(lbs); 45.000
|
| 110. |
6641827950
|
[1] |
WHEEL
|
30.8000(lbs); 14.000
|
| 120. |
6781050120
|
[1] |
TUBE
|
9.9000(lbs); 4.500
|
| 130. |
6781050130
|
[1] |
TIRE
|
59.4000(lbs); 27.000
|
| 140. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 150. |
3215027740
|
[1] |
VALVE
|
0.0066(lbs); 0.003
|
| 160. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 170. |
6641950150
|
[1] |
LABEL RH
|
0.0044(lbs); 0.002
|
| 180. |
0151751632
|
[4] |
STUD
|
0.1672(lbs); 0.076
|
| 185. |
0401160160
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 190. |
0451260160
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 200. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 210. |
0117351635
|
[8] |
BOLT
|
0.0176(lbs); 0.008
|
