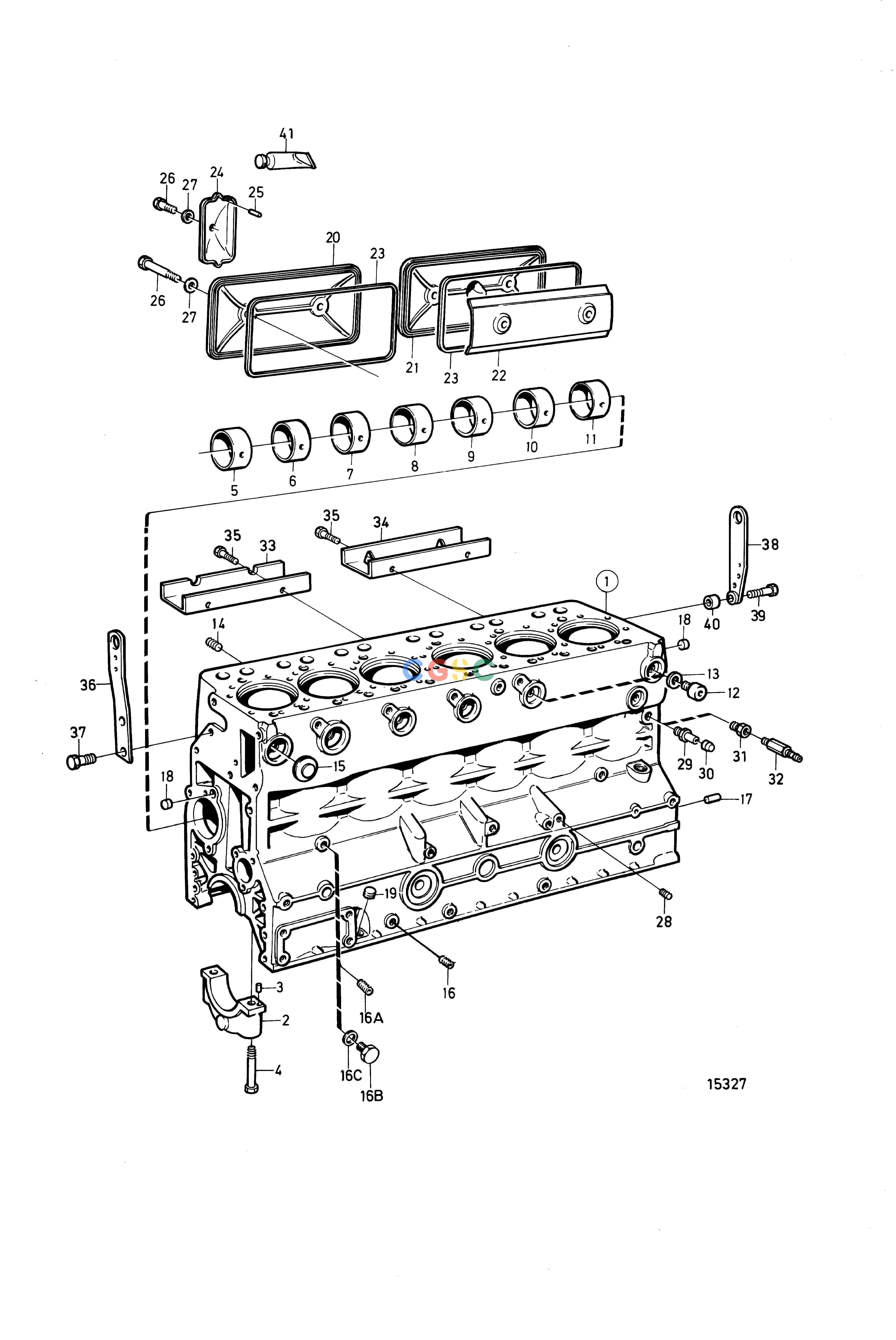

沃尔沃零件查询TAMD61A; TAMD62AEngineCylinder Block: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420580
|
[1] |
Cylinder block
|
Spare part design., Repl by 465800
|
| 1. |
465800
|
[1] |
Cylinder block
|
Spare part design., Repl by 420700
|
| 1. |
420700
|
[1] |
Cylinder block
|
Spare part design., Replaced by 1pc cylinder block 420970, 1pc oil pressure pipe (cylinder block-fue
|
| 1. |
420970
|
[1] |
Cylinder block
|
Spare part design., Repl by 420990
|
| 1. |
3801052
|
[1] |
Short block
|
Spare part design., Repl by 420990
|
| 1. |
|
|
|
SN-2061086156
|
| 1. |
420990
|
[1] |
Cylinder block
|
Spare part design., SN2061086157-
|
| 2. |
|
|
|
|
| 3. |
422426
|
[1] |
Pivot pin
|
|
| 4. |
465899
|
[14] |
Flange screw
|
|
| 5. |
422076
|
[1] |
Bushing
|
|
| 6. |
422077
|
[1] |
Bushing
|
|
| 7. |
422078
|
[1] |
Bushing
|
|
| 8. |
422079
|
[1] |
Bushing
|
|
| 9. |
422080
|
[1] |
Bushing
|
|
| 10. |
422081
|
[1] |
Bushing
|
|
| 11. |
422082
|
[1] |
Bushing
|
|
| 12. |
467367
|
[2] |
Plug
|
|
| 13. |
469328
|
[2] |
Gasket
|
|
| 14. |
422369
|
[2] |
Plug
|
|
| 15. |
968955
|
[4] |
Expansion plug
|
(1542263)
|
| 16. |
952075
|
[2] |
Plug
|
|
| 16A. |
952075
|
[1] |
Plug
|
SN-XXXXXXXXXX/78664
|
| 16B. |
965768
|
[1] |
Plug
|
SNXXXXXXXXXX/78665-
|
| 16C. |
18665
|
[1] |
Gasket
|
SNXXXXXXXXXX/78665-
|
| 16. |
|
|
|
(947281)
|
| 17. |
191171
|
[2] |
Pin
|
|
| 18. |
955082
|
[6] |
Cap plug
|
|
| 19. |
955082
|
[2] |
Cap plug
|
|
| 20. |
420120
|
[1] |
Inspection cover
|
|
| 21. |
420121
|
[1] |
Inspection cover
|
|
| 22. |
471858
|
[1] |
Splash plate
|
|
| 23. |
421121
|
[2] |
Gasket
|
|
| 24. |
471854
|
[1] |
Cover
|
|
| 25. |
951974
|
[1] |
Spring pin
|
|
| 26. |
471855
|
[5] |
Shoulder screw
|
|
| 27. |
|
|
|
|
| 28. |
968145
|
[1] |
Plug
|
|
| 29. |
946121
|
[1] |
Hose nipple
|
Replaced by 1 pc nipple 479954 and 1 pc cock 947893., Early type
|
| 30. |
476279
|
[1] |
Protecting cap
|
Early type
|
| 31. |
479954
|
[1] |
Nipple
|
Later prod
|
| 32. |
947893
|
[1] |
Shut-off cock
|
Later prod
|
| 33. |
848085
|
[1] |
Bracket
|
|
| 34. |
849626
|
[1] |
Bracket
|
|
| 35. |
959220
|
[1] |
Hex. socket screw
|
|
| 36. |
|
|
|
|
| 37. |
965191
|
[2] |
Flange screw
|
|
| 38. |
848533
|
[1] |
Lifting eye
|
|
| 39. |
965225
|
[2] |
Flange screw
|
|
| 40. |
847237
|
[1] |
Spacer sleeve
|
|
| 41. |
1161231
|
[1] |
Sealant
|
|
