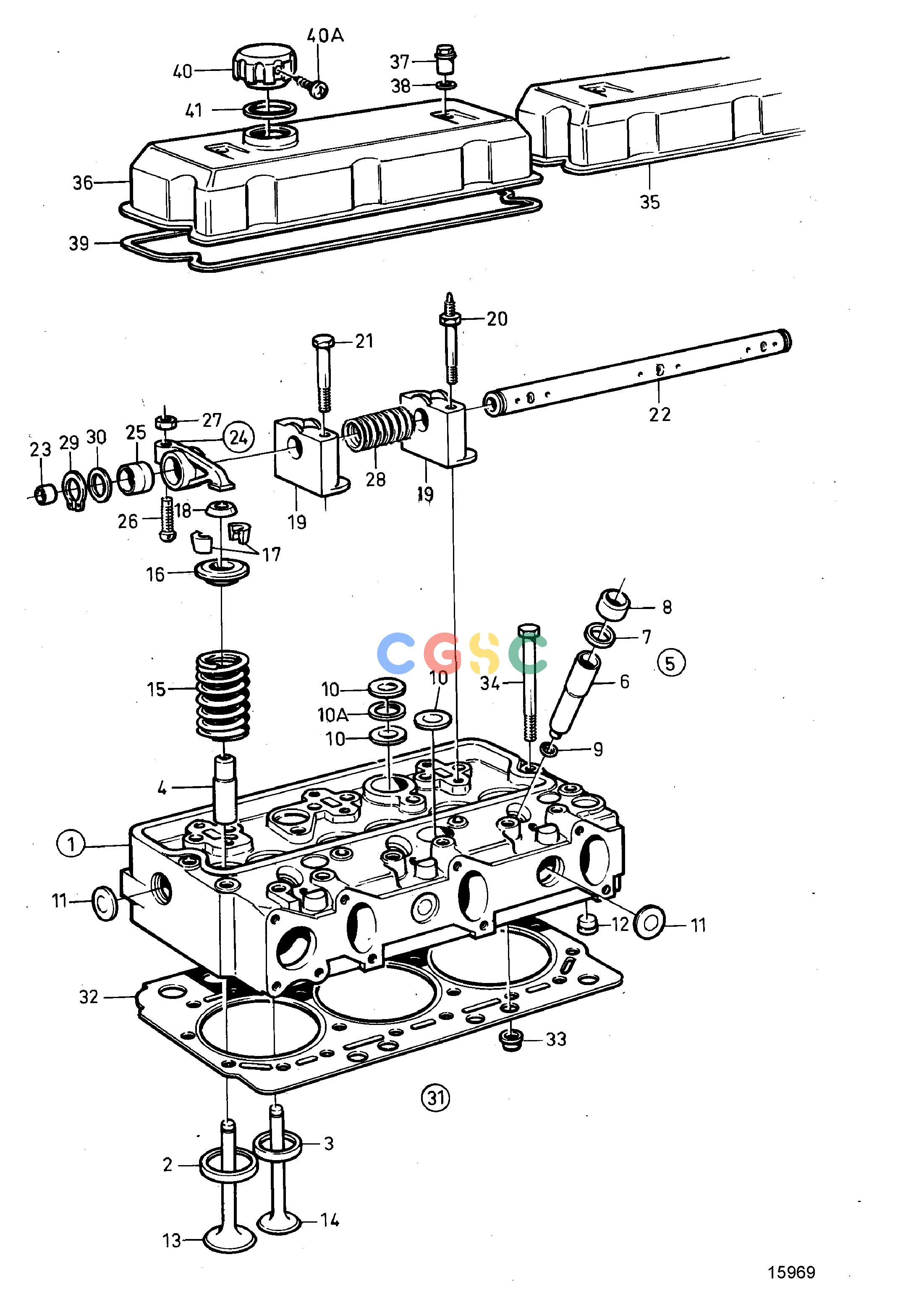

沃尔沃零件查询TAMD61A; TAMD62AEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
153 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803099
|
[2] |
Cylinder head
|
(465780)
|
| 2. |
465158
|
[6] |
Valve seat, intake
|
|
| 2. |
465238
|
[6] |
Valve seat, intake
|
|
| 3. |
465155
|
[6] |
Valve seat, exhaust
|
|
| 3. |
465236
|
[6] |
Valve seat, exhaust
|
|
| 4. |
477792
|
[12] |
Valve guide
|
(465157)
|
| 5. |
270575
|
[6] |
Copper sleeve kit
|
|
| 6. |
466404
|
[6] |
Nozzle sleeve
|
|
| 7. |
466405
|
[6] |
Sealing ring
|
|
| 8. |
466420
|
[6] |
Ring
|
|
| 9. |
466922
|
[6] |
O-ring
|
|
| 10. |
477026
|
[14] |
Expansion plug
|
D=26mm
|
| 10A. |
947626
|
[4] |
Gasket
|
|
| 11. |
477024
|
[8] |
Expansion plug
|
D=35mm
|
| 12. |
465420
|
[4] |
Jet
|
|
| 13. |
3825723
|
[6] |
Inlet valve, intake
|
(864467)
|
| 14. |
465549
|
[6] |
Exhaust valve, exhaust
|
|
| 15. |
465233
|
[12] |
Valve spring
|
|
| 16. |
465550
|
[12] |
Valve spring washer
|
|
| 17. |
1677875
|
[24] |
Valve collet
|
|
| 18. |
465551
|
[12] |
Ring
|
|
| 19. |
1665204
|
[6] |
Bearing bracket
|
|
| 20. |
471512
|
[4] |
Stud
|
|
| 21. |
471513
|
[8] |
Flange nut
|
|
| 22. |
465790
|
[2] |
Rocker arm shaft
|
|
| 23. |
955083
|
[4] |
Cap plug
|
|
| 24. |
420132
|
[6] |
Rocker arm, exhaust
|
|
| 24. |
420129
|
[6] |
Rocker arm, intake
|
|
| 25. |
420125
|
[12] |
Bushing
|
|
| 26. |
422993
|
[12] |
Ball stud
|
|
| 27. |
940175
|
[12] |
Hexagon nut
|
|
| 28. |
411139
|
[4] |
Compression spring
|
|
| 29. |
914456
|
[4] |
Snap ring
|
|
| 30. |
400722
|
[4] |
Shim
|
|
| 31. |
276821
|
[2] |
Cylinder head gasket
|
See group 99
|
| 32. |
|
|
|
Included in gasket kit.
|
| 33. |
465784
|
[12] |
Sealing ring
|
I.D=26mm
|
| 33. |
466421
|
[16] |
Sealing ring
|
I.D=16mm
|
| 33. |
422413
|
[2] |
Sealing ring
|
I.D=11mm
|
| 34. |
465840
|
[40] |
Flange screw
|
|
| 35. |
465951
|
[1] |
Valve cover
|
|
| 36. |
465950
|
[1] |
Valve cover
|
|
| 37. |
465961
|
[4] |
Cap nut
|
|
| 38. |
471856
|
[4] |
Sealing ring
|
|
| 39. |
465952
|
[2] |
Gasket
|
|
| 40. |
421753
|
[1] |
Oil filler cap
|
|
| 40A. |
955126
|
[3] |
Cross recessed screw
|
|
| 41. |
940096
|
[1] |
Gasket
|
|
