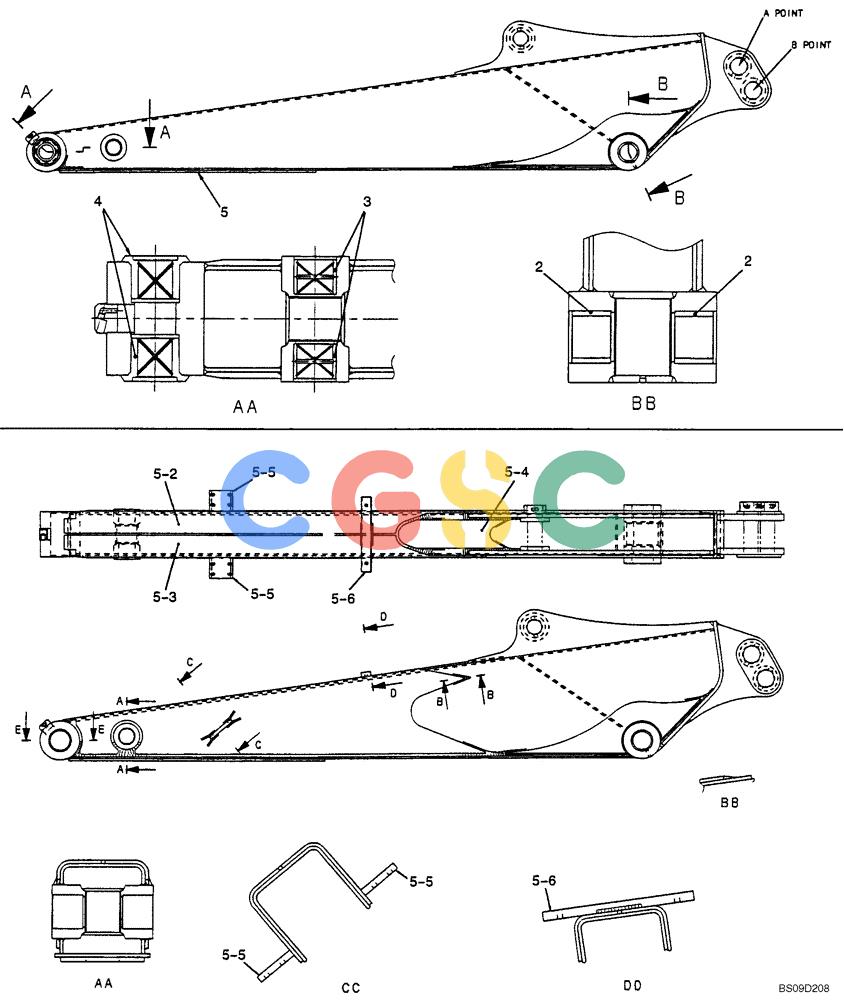

神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-111[00]) - ARM, LONG 2.07M (6FT 9IN) (NORWAY) (BREAKER), (YT12B00083F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
273 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YT12B01010P2 | [2] | BUSHING | KOB |
| 3. | LE12B01054P1 | [2] | BUSHING | KOB |
| 4. | YT12B01118P1 | [2] | BUSHING | KOB |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONLong Arm |
| 5-2. | YT12B01121P1 | [1] | PLATE | KOB Superseded by part number: YT12B01121P2 |
| 5-3. | YT12B01122P1 | [1] | PLATE | KOB Superseded by part number: YT12B01122P2 |
| 5-4. | YT12B01110P1 | [1] | PLATE | KOB |
| 5-5. | 2416T24666 | [2] | BRACKET | KOB |
| 5-6. | YT12B01095P1 | [1] | BLOCK | KOBTapped |
