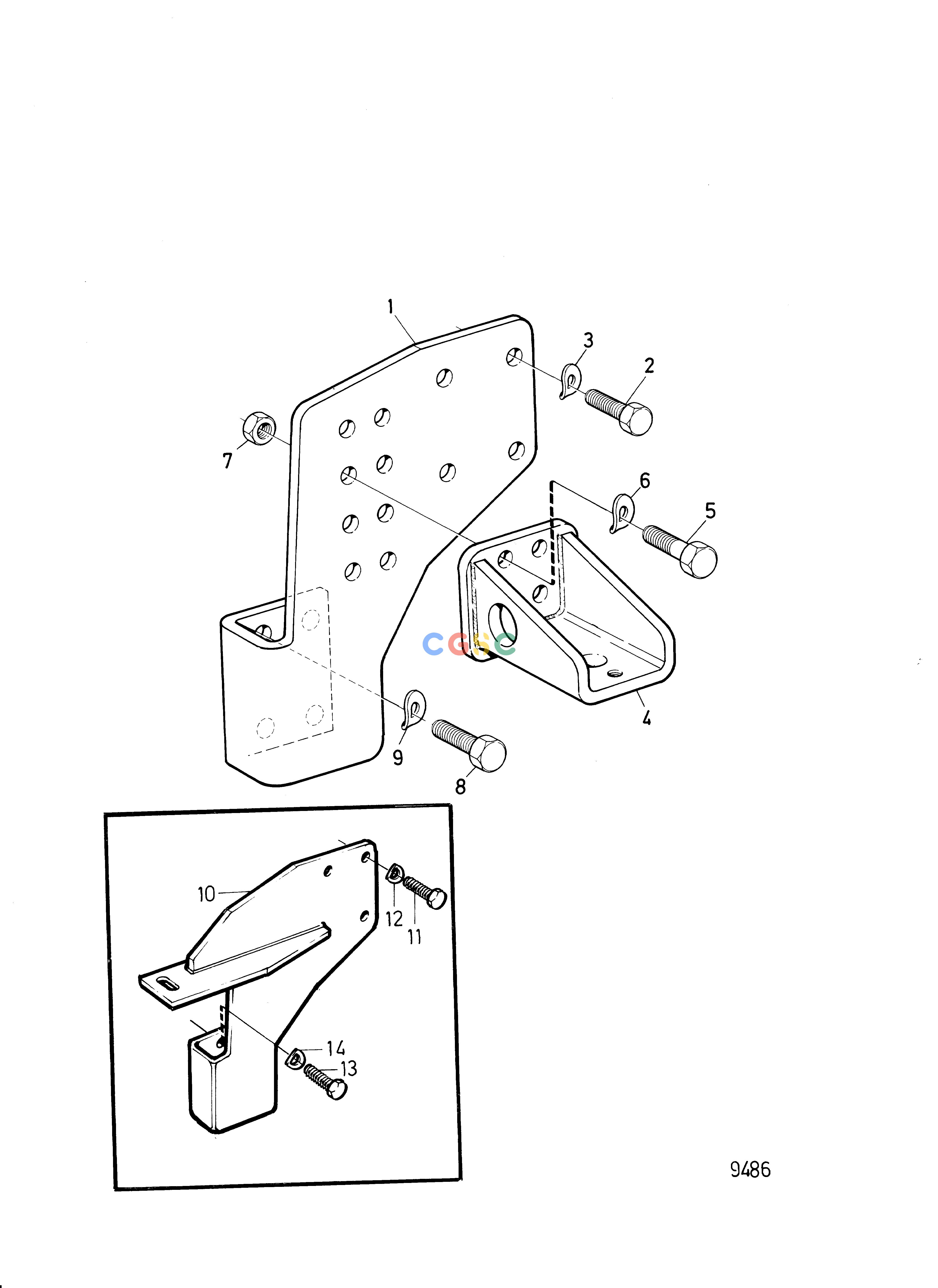

沃尔沃零件查询TAMD61A; TAMD62AEngineEngine Suspension for Reverse Gear MG 506AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
410 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849128
|
[1] |
Bracket
|
P 28
|
| 1. |
849129
|
[1] |
Bracket
|
BB 28
|
| 2. |
970900
|
[8] |
Hexagon screw
|
(963267)
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
848369
|
[2] |
Bracket
|
28
|
| 5. |
970900
|
[8] |
Hexagon screw
|
(963267)
|
| 6. |
940280
|
[8] |
Spring washer
|
|
| 7. |
963108
|
[8] |
Lock nut
|
|
| 8. |
955562
|
[4] |
Hexagon screw
|
|
| 9. |
940280
|
[4] |
Spring washer
|
|
| 10. |
863265
|
[1] |
Bracket
|
SB 22,5
|
| 10. |
863266
|
[1] |
Bracket
|
P 22,5''
|
| 11. |
970900
|
[8] |
Hexagon screw
|
(963267)
|
| 12. |
940280
|
[8] |
Spring washer
|
|
| 13. |
955562
|
[4] |
Hexagon screw
|
|
| 14. |
940280
|
[4] |
Spring washer
|
|
