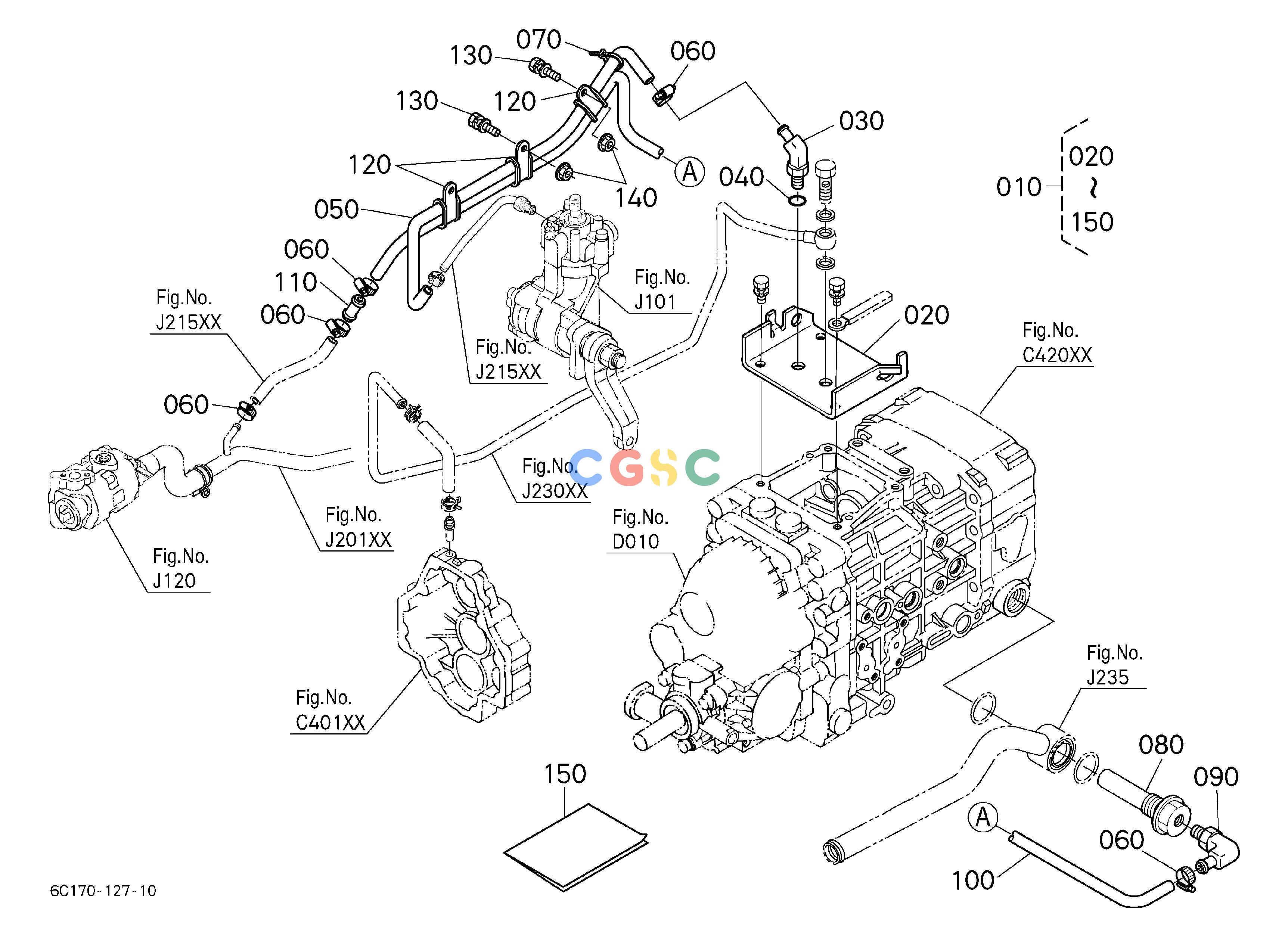

久保田零件查询U83601 POWER STEERING HOSE KIT [OPTION] ## S.No.<=15496 OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
440 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07099600
|
[1] |
KIT P/S HOSE
|
4.8400(lbs); 2.200
|
| 020. |
6C07099610
|
[1] |
COVER UPPER
|
1.8480(lbs); 0.840
|
| 030. |
RP42161740
|
[1] |
JOINT PIPE
|
0.1430(lbs); 0.065
|
| 040. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481600110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
6C15099620
|
[1] |
HOSE
|
0.6600(lbs); 0.300
|
| 060. |
6C05058750
|
[5] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 070. |
5358164150
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 080. |
6C07099620
|
[1] |
FILTER OIL
|
0.3520(lbs); 0.160
|
| 090. |
5563137350
|
[1] |
ELBOW
|
0.2200(lbs); 0.100
|
| 100. |
5H13027750
|
[1] |
HOSE
|
0.8800(lbs); 0.400
|
| 110. |
6C07099630
|
[1] |
JOINT
|
0.0506(lbs); 0.023
|
| 120. |
T027050230
|
[3] |
CLAMP HOSE
|
0.0462(lbs); 0.021
|
| 130. |
0112560820
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 140. |
0275150080
|
[2] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 150. |
6C07099640
|
[1] |
MANUAL
|
0.0176(lbs); 0.008
|
