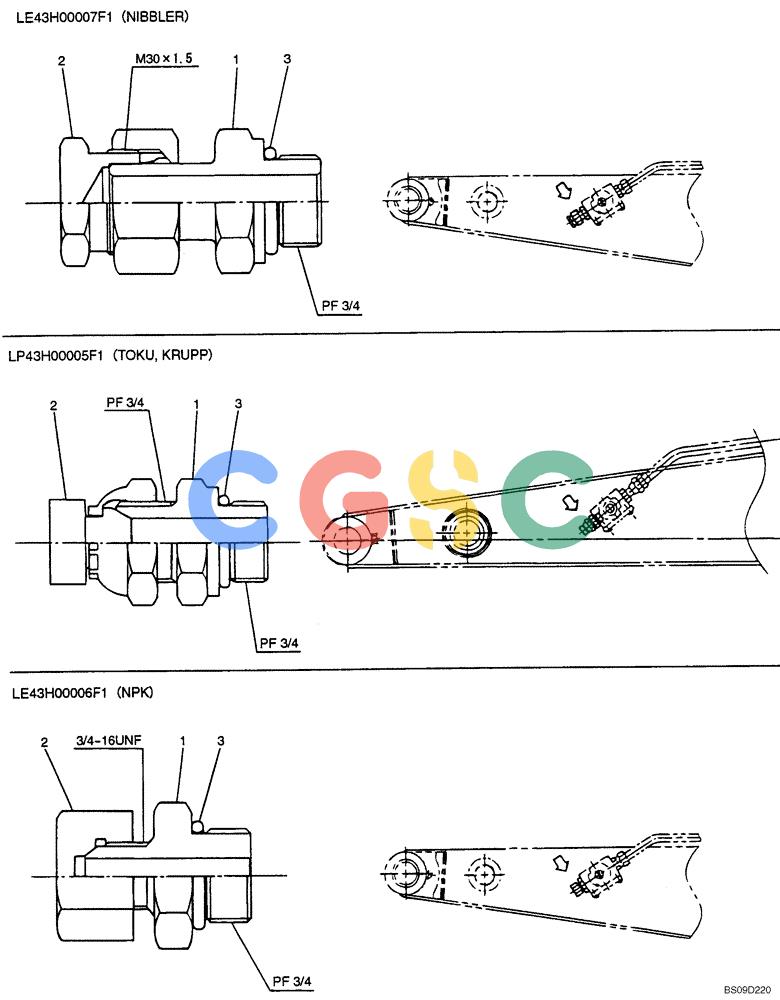

神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-133[00]) - CONNECTOR ASSEMBLY, (LE43H00007F1, LE43H00005F1 & LE43H00006F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
438 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZA23H22012 | [1] | HYD CONNECTOR | KOB |
| 2. | ZA82P22000 | [1] | PLUG | KOB |
| 3. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 1. | 2444P1745D2 | [1] | CONNECTION | KOB |
| 2. | 2420Z1228D4 | [1] | PLUG | KOB |
| 1. | 2444P1744D1 | [1] | CONNECTION | KOB(No O-Ring supplied) |
| 2. | 2420T4405 | [1] | PLUG | KOB3/4"-16UNF x 22mm Long |
