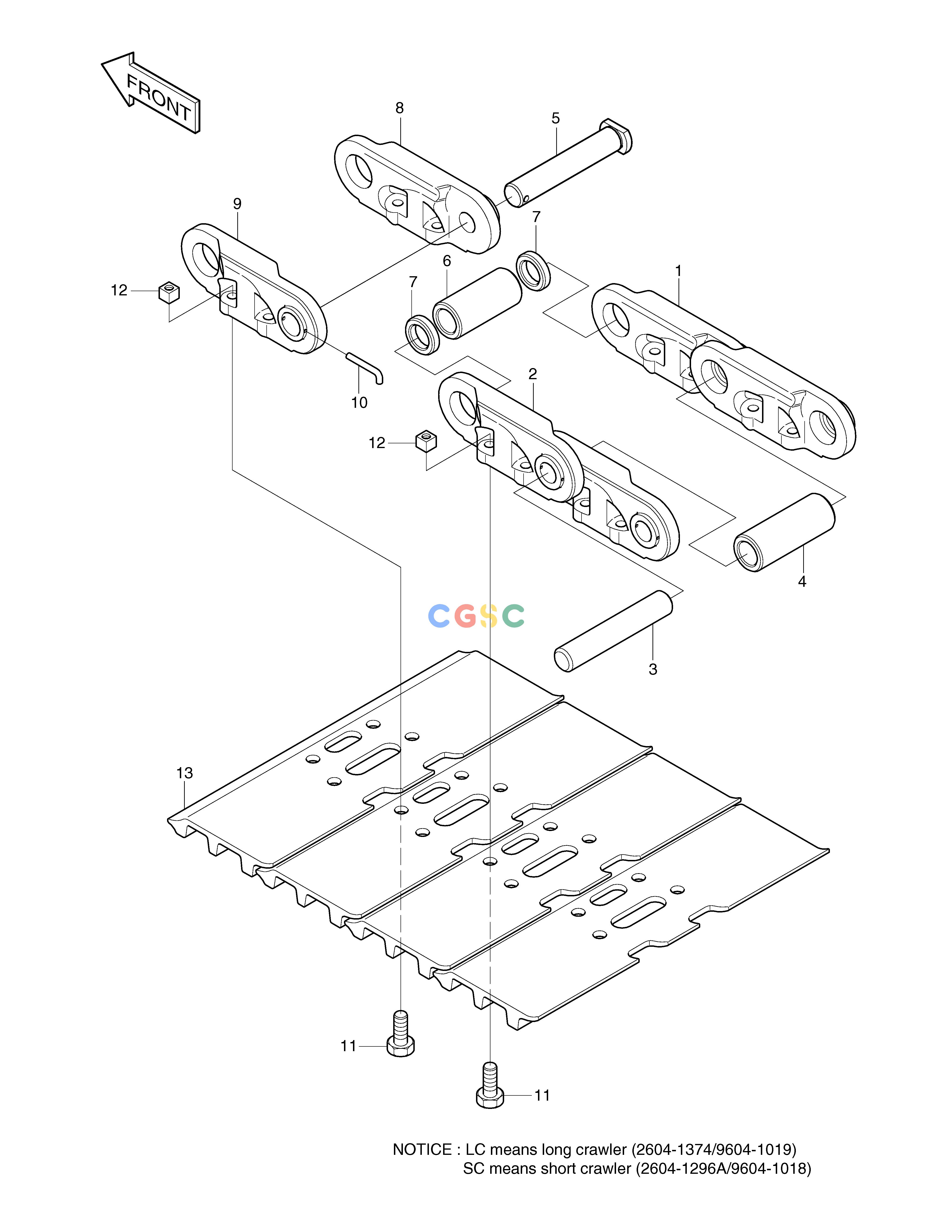

斗山零件查询TRACK SHOE ASS'Y-600-ED SOLAR 130LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
478 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
9273-6007D5
|
[2] |
TRACK SHOE ASS'Y-600 (LC)
|
|
| -. |
9273-6007D2
|
[2] |
TRACK SHOE ASS'Y-600 (SC)
|
|
| 1. |
9272-6017
|
[45] |
LINK;MASTER(R.H)
|
|
| 1. |
9272-6017
|
[42] |
LINK;MASTER(R.H)
|
|
| 11. |
9120-6006D12
|
[184] |
BOLT
|
|
| 11. |
9120-6006D12
|
[172] |
BOLT
|
|
| 12. |
9121-6005D11
|
[184] |
NUT
|
|
| 12. |
9121-6005D11
|
[172] |
NUT
|
|
| 13. |
9273-7020
|
[46] |
SHOE-600mm (LC)
|
|
| 13. |
9273-7020
|
[43] |
SHOE-600mm (LC)
|
|
| 14. |
9272-6014D2
|
[2] |
LINK ASS'Y
|
|
| 15. |
9272-6014D1
|
[2] |
TRACK LINK ASS'YSC)
|
|
| 2. |
9272-6016
|
[45] |
LINK;MASTER(L.H)
|
|
| 2. |
9272-6016
|
[42] |
LINK;MASTER(L.H)
|
|
| 3. |
9123-6009
|
[45] |
PIN;TRACK (SC)
|
|
| 3. |
9123-6009
|
[42] |
PIN;TRACK (SC)
|
|
| 4. |
9110-6004
|
[45] |
BUSHING;TRACK (LC)
|
|
| 4. |
9110-6004
|
[42] |
BUSHING;TRACK (LC)
|
|
| 5. |
9123-6010
|
[1] |
PIN;MASTER
|
|
| 6. |
9110-6005
|
[1] |
BUSHING;MASTER
|
|
| 7. |
9114-6006
|
[2] |
SPACER
|
|
| 8. |
9272-6017
|
[1] |
LINK;MASTER(R.H)
|
|
| 9. |
9272-6016
|
[1] |
LINK;MASTER(L.H)
|
|
