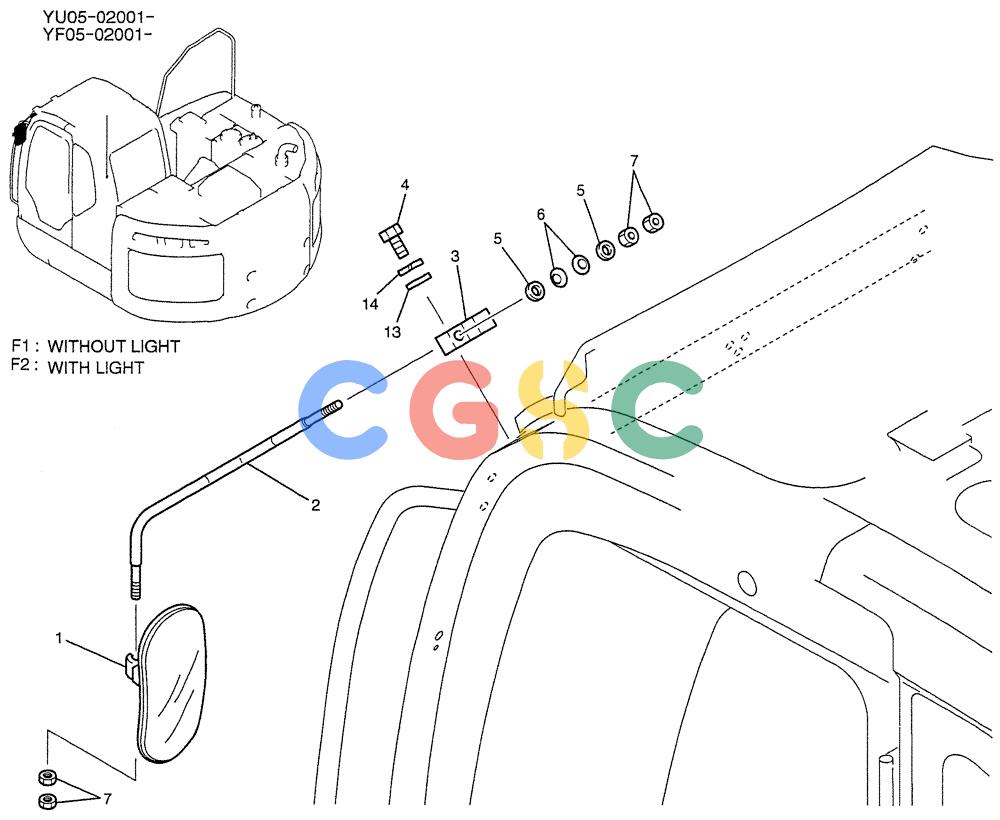

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (06-001) - MIRROR INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52C00004F1 | [1] | MIRROR | KOBINSTAL |
| 1. | 2456Z253 | [1] | MIRROR | KOBBACK |
| 2. | YN52C01007P1 | [1] | STAY | KOBSTAY |
| 3. | YN02C01762P1 | [1] | BRACKET | KOBFOR F1 ONLY |
| 4. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBCAP, FOR F1 ONLY |
| 5. | ZW16X12000 | [2] | WASHER | KOB |
| 6. | R16T0137D1 | [2] | WASHER | KOB |
| 7. | ZN18C12010 | [4] | NUT | KOBFOR F1 ONLY |
| 13. | ZW16H10000 | [2] | WASHER | KOB |
| 14. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, For F1 Only |
