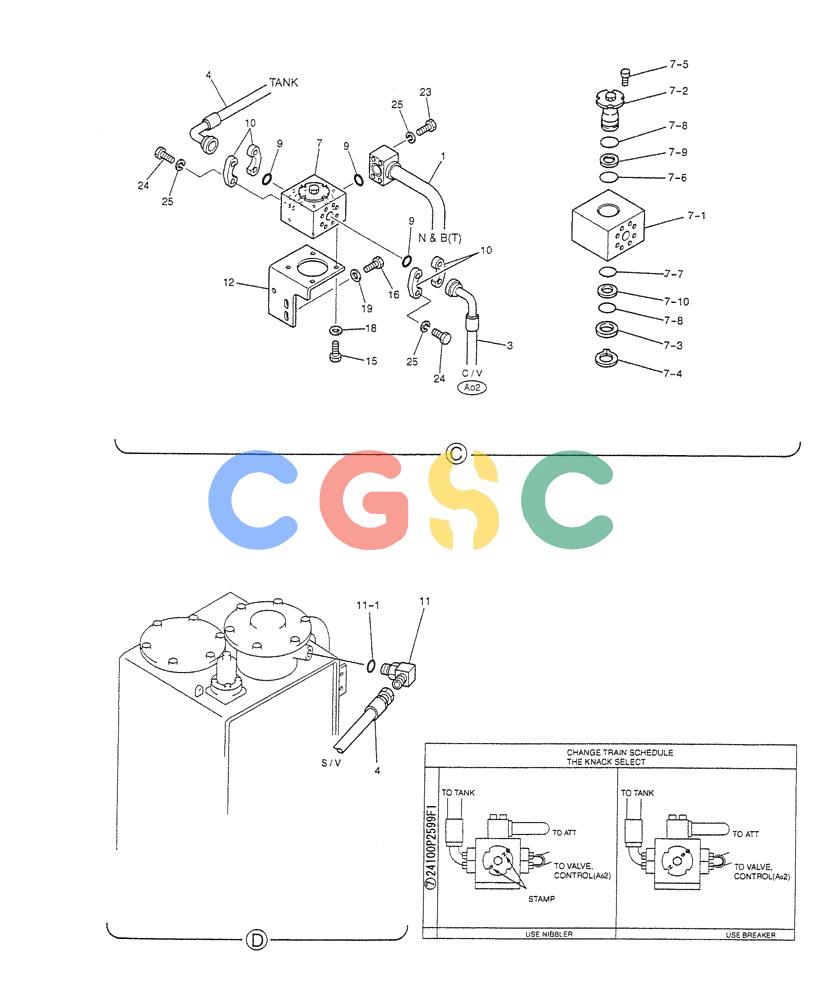

| . . | YB03H00019F1 | [1] | HYD LINES, UPP | |
| 1. | YB03H01048P1 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: YB03H01052P1 |
| 2. | YB03H01016P1 | [1] | TUBE | KOB |
| 3. | YB03H01049D1 | [1] | HOSE | KOBHOSE |
| 4. | YB03H01032D1 | [1] | HOSE | KOBHOSE |
| 5. | 2444T2682 | [1] | HYD CONNECTOR | KOB |
| 5-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | HG23H12012G1 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 6-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 7. | 24100P2599F1 | [1] | VALVE | KOB Superseded by part number: 24100P2599F2 |
| 7-1. | 2436N184 | [1] | BODY, VALVE | |
| 7-2. | 2436P183 | [1] | VALVE | KOB |
| 7-3. | 2418T11522D1 | [1] | SPACER | KOB |
| 7-4. | ZR16X05000 | [1] | RING | KOBRetaining -- ID 50 x OD 64 x Th 2.0mm |
| 7-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 7-6. | ZD12P04400 | [1] | O-RING | KOB |
| 7-7. | ZD12P05000 | [1] | O-RING | KOB |
| 7-8. | ZD11G05000 | [2] | O-RING,3.1mm Thk x 49.4mm ID, 70 Duro | KOBO-Ring -- ID 49.40 ± 0.45 x OD 55mm |
| 7-9. | ZD85P04400 | [1] | BACK-UP RING | KOB |
| 7-10. | ZD75P05000 | [1] | RING | KOB |
| 8. | ZG33F12012 | [1] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB90° -- 1-3/16" -12UN x 3/4" PF (Incls. O-Ring ZD12P02400) |
| 8-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 9. | ZD12P03400 | [3] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 10. | ZE13X16000 | [4] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 11. | 2444Z3203 | [1] | ELBOW | KOB Superseded by part number: HH35X16016G1 |
| 11-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 12. | YB03H01047P1 | [1] | U-BRACKET | KOBBRACKET Superseded by part number: YB03H01060P1 |
| 13. | YB03H01025P1 | [1] | SUPPORT | KOBSUPPORT |
| 14. | YB03H01046P1 | [1] | CLAMP | KOBCLAMP |
| 15. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 16. | ZS18C12030 | [5] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 17. | ZS18C12085 | [2] | SCREW,Hex, M12 x 85mm | KOBM12x1.75x85mm |
| 18. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 19. | ZW16H12000 | [9] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 20. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 21. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 22. | ZD12A02100 | [2] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 23. | ZS28C12070 | [4] | CAPSCREW,Hex Socket Head, M12 x 70mm | KOBSCREW M12x1.75x70mm |
| 24. | ZS28C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 25. | ZW26K12000 | [12] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
