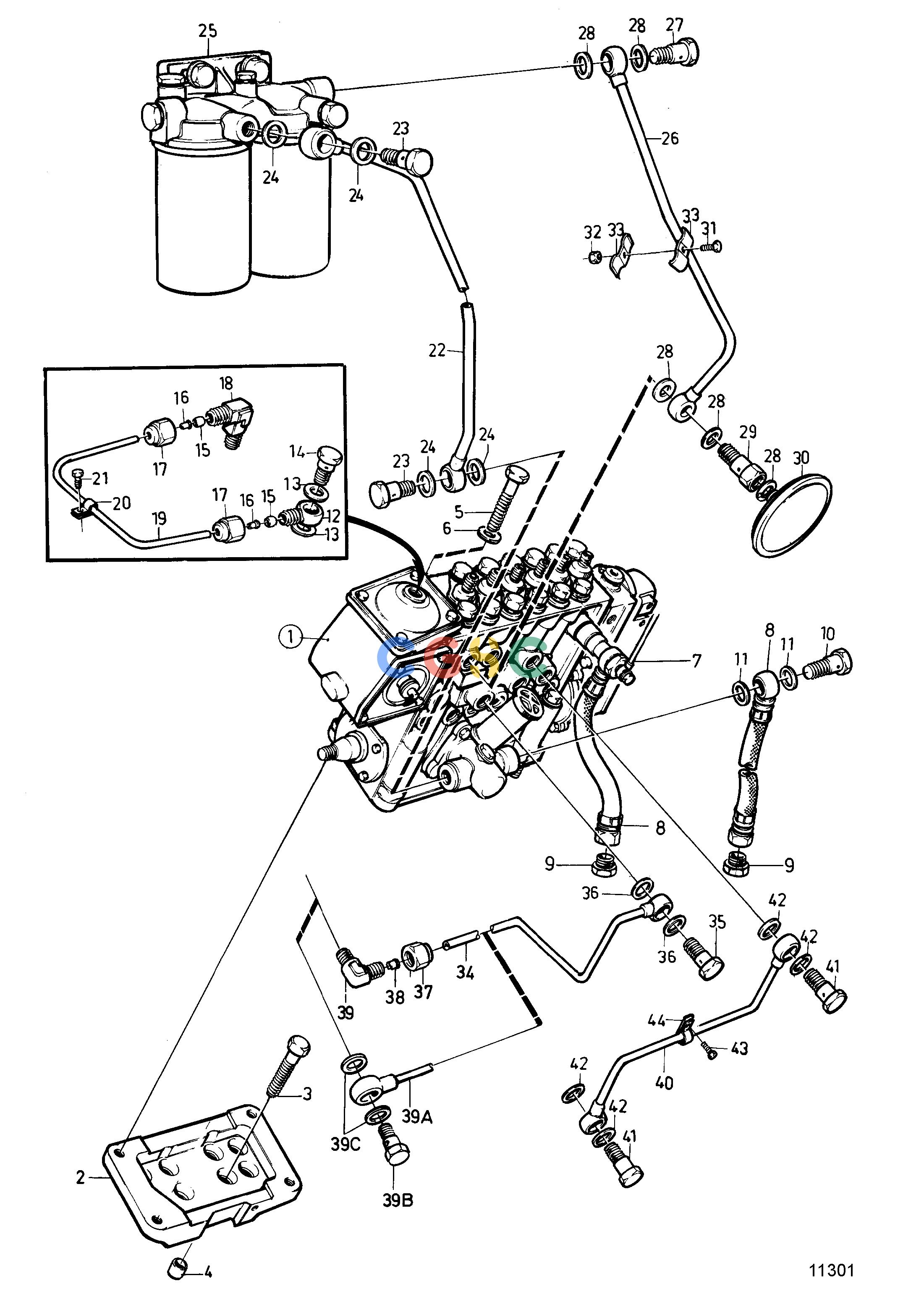

沃尔沃零件查询TAMD61A; TAMD62AFuel SystemFuel Injection Pump and Fuel Filter. Standard Fuel System: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
865415
|
[1] |
Injection pump
|
|
| 1. |
3803777
|
[1] |
Injection pump
|
|
| 2. |
477793
|
[1] |
Shelf
|
(465838)
|
| 3. |
959241
|
[4] |
Hex. socket screw
|
L=40mm
|
| 4. |
417588
|
[2] |
Guide sleeve
|
|
| 5. |
965189
|
[4] |
Flange screw
|
L=90mm
|
| 6. |
190509
|
[4] |
Washer
|
|
| 7. |
7746650_037
|
|
Leak-off line, fuel hose connection
|
|
| 8. |
866964
|
[2] |
Hose
|
(845372)
|
| 9. |
22753
|
[2] |
Nipple
|
|
| 10. |
25167
|
[1] |
Hollow screw
|
|
| 11. |
969011
|
[2] |
Gasket
|
|
| 12. |
945417
|
[1] |
Banjo nipple
|
|
| 13. |
11994
|
[2] |
Gasket
|
|
| 14. |
969299
|
[1] |
Hollow screw
|
|
| 15. |
954364
|
[2] |
Sleeve
|
|
| 16. |
944717
|
[2] |
Support sleeve
|
|
| 17. |
954356
|
[2] |
Fitting nut
|
|
| 18. |
954385
|
[1] |
Elbow nipple
|
|
| 19. |
945460
|
[1] |
Tube
|
L=650mm
|
| 20. |
940374
|
[1] |
Clamp
|
|
| 21. |
946440
|
[1] |
Flange screw
|
|
| 22. |
848169
|
[1] |
Fuel pipe
|
|
| 23. |
25167
|
[2] |
Hollow screw
|
|
| 24. |
969011
|
[4] |
Gasket
|
|
| 25. |
7746650_032
|
|
Fuel filter, with installation comps.
|
|
| 26. |
848168
|
[1] |
Fuel pipe
|
|
| 27. |
25167
|
[1] |
Hollow screw
|
|
| 28. |
969011
|
[5] |
Gasket
|
|
| 29. |
849853
|
[1] |
Hollow screw
|
|
| 30. |
477173
|
[1] |
Pressure equalizer
|
|
| 31. |
956095
|
[1] |
Cross recessed screw
|
|
| 32. |
955781
|
[1] |
Hexagon nut
|
|
| 33. |
404279
|
[2] |
Attaching clamp
|
|
| 35. |
48634
|
[1] |
Hollow screw
|
|
| 36. |
947281
|
[2] |
Gasket
|
|
| 39A. |
848628
|
[1] |
Oil pressure pipe
|
SN-XXXXXXXXXX/78664
|
| 39. |
866124
|
[1] |
Oil pressure pipe
|
SNXXXXXXXXXX/78665-
|
| 39. |
48634
|
[1] |
Hollow screw
|
|
| 39. |
947281
|
[1] |
Gasket
|
|
| 40. |
848629
|
[1] |
Oil return pipe
|
|
| 41. |
25167
|
[4] |
Hollow screw
|
|
| 42. |
969011
|
[4] |
Gasket
|
|
| 43. |
944926
|
[1] |
Flange screw
|
|
| 44. |
18387
|
[1] |
Clamp
|
|
