神钢零件查询(NIBBLER) - BREAKER & EXTRA ATTACHMENTS - SK200SR & SK200SRLC (1/01-12/06) (01-009[02]) - HYD LINES, UPP (BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
287 次

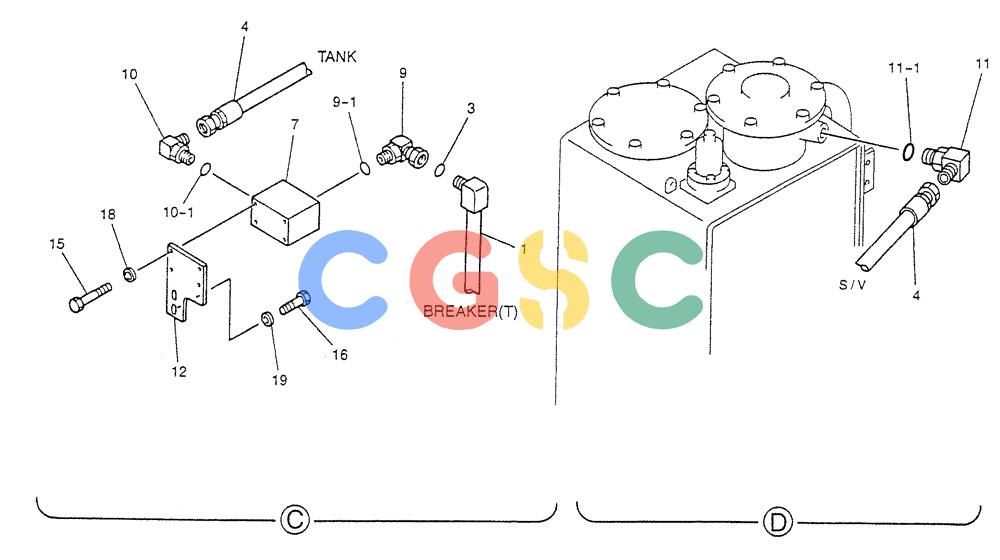

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB03H00003F1 | [1] | HYD LINES, UPP | |
| 1. | YB03H01011P1 | [1] | TUBE | KOBTUBE |
| 2. | YB03H01016P1 | [1] | TUBE | KOB |
| 3. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 4. | 2444Z3722D9 | [1] | HOSE | KOBHOSE |
| 5. | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 5-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | HG23H12012G1 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 6-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 7. | YV03H01023P1 | [1] | BLOCK | KOB |
| 8. | ZD12A02100 | [2] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 9. | HG33H12012G1 | [1] | HYD CONNECTOR | KOBELBOW |
| 9-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 10. | 2444R399D7 | [1] | ELBOW | KOB |
| 10-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 11. | 2444Z3203 | [1] | ELBOW | KOB Superseded by part number: HH35X16016G1 |
| 11-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 12. | YN03H01350P1 | [1] | PLATE | KOBPLATE |
| 13. | YB03H01018P1 | [1] | SUPPORT | |
| 14. | YN03H01244P1 | [1] | CLAMP | KOB |
| 15. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 16. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 17. | ZS18C12070 | [1] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 18. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 19. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 20. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
