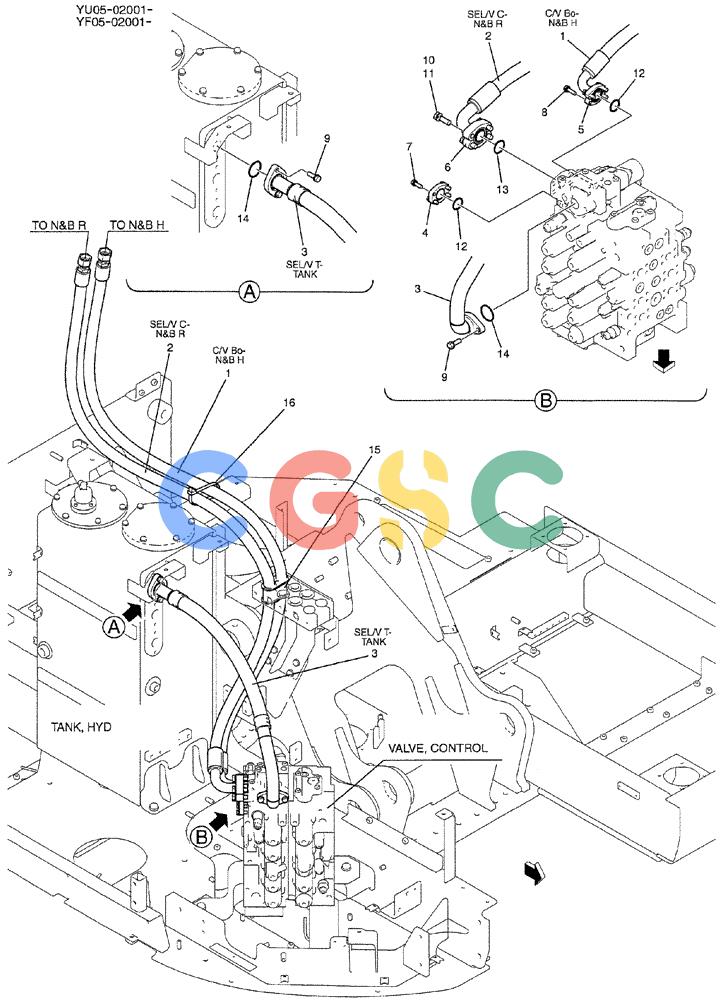

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (05-003) - HYD LINES, UPP (NIBBLER & BREAKER), P/N YF03H00027F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
263 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF03H00027F1 | [1] | HYD LINES, UPP | |
| . . | YF03H00037F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00022F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00039F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00040F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00043F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00059F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00038F1 | [1] | HYD LINES, UPP | |
| 1. | YF03H01199D4 | [1] | HOSE | KOBHOSE |
| 2. | YF03H01200D2 | [1] | HOSE | KOB |
| 3. | YF03H01198D1 | [1] | HOSE | KOB |
| 4. | ZE12Q16000 | [1] | PLUG | KOB |
| 5. | ZE12X16000 | [2] | CLAMP | KOBHALF |
| 6. | ZE13X20001 | [2] | CLAMP | KOBHALF Superseded by part number: ZE13X20000 |
| 7. | HM83C10030G1 | [4] | BOLT | KOBSEMS |
| 8. | HM83C10035G1 | [4] | BOLT | KOBSEMS |
| 9. | HM83C12035G1 | [4] | BOLT | KOBSEMS |
| 10. | ZS18C14045 | [4] | CAP,Hex, M14 x 45mm | KOBSCREW |
| 11. | ZW26X14000 | [4] | WASHER | KOB |
| 12. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| 13. | ZD12P03800 | [1] | O-RING | KOB |
| 14. | ZD12P04800 | [2] | O-RING,3.5mm Thk x 47.7mm ID | KOB |
| 15. | YF03H01255P1 | [1] | RUBBER BAND | KOB |
| 16. | YX03H01046P1 | [1] | CLIP | KOB |
