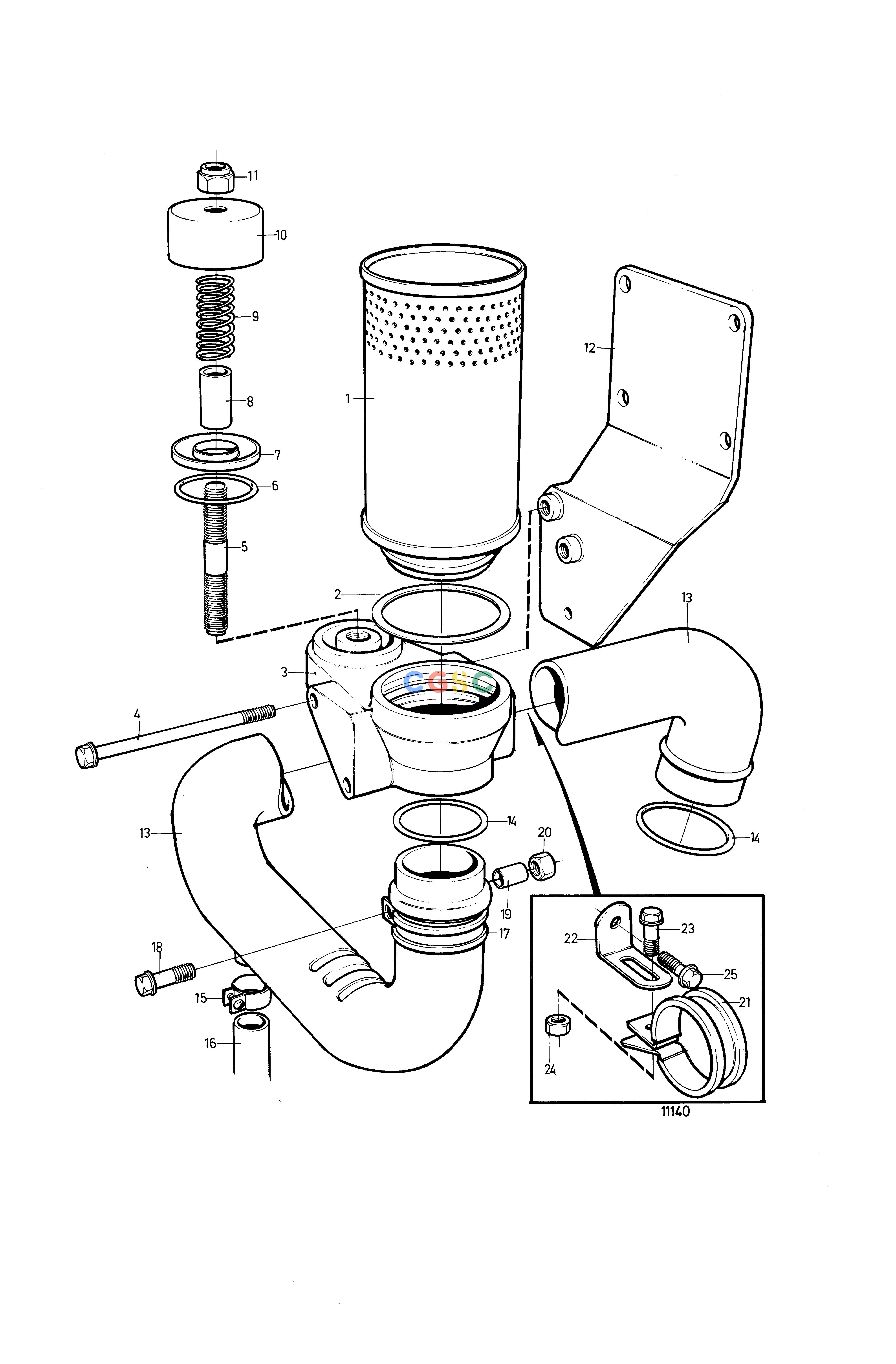

沃尔沃零件查询TAMD61A; TAMD62AIntake and Exhaust SystemCrankhouse Ventilation and Installation Components: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876069
|
[1] |
Filter
|
|
| 2. |
843449
|
[1] |
Gasket
|
|
| 3. |
843356
|
[1] |
Connecting box
|
|
| 4. |
969189
|
[2] |
Flange screw
|
|
| 5. |
924058
|
[1] |
Stud
|
|
| 6. |
421158
|
[1] |
Sealing ring
|
|
| 7. |
842972
|
[1] |
Valve disc
|
|
| 8. |
842974
|
[1] |
Spacer sleeve
|
|
| 9. |
843301
|
[1] |
Spring
|
|
| 10. |
842975
|
[1] |
Protecting casing
|
|
| 11. |
963105
|
[1] |
Lock nut
|
|
| 12. |
7746650_077
|
|
Bracket
|
|
| 13. |
863368
|
[1] |
Breather pipe
|
SN-XXXXXXXXXX/67222
|
| 13. |
864725
|
[1] |
Breather pipe
|
SNXXXXXXXXXX/67223-
|
| 14. |
421158
|
[2] |
Sealing ring
|
|
| 15. |
947935
|
[2] |
Hose clamp
|
SN-XXXXXXXXXX/67222
|
| 15. |
945754
|
[2] |
Hose clamp
|
SNXXXXXXXXXX/67223-
|
| 16. |
1272328
|
[1] |
Hose
|
SN-XXXXXXXXXX/67222
|
| 16. |
|
|
|
I.D=12mm, L=470mm
|
| 16. |
943707
|
[1] |
Hose
|
SNXXXXXXXXXX/67223-
|
| 17. |
952637
|
[1] |
Clamp
|
(943717)
|
| 18. |
965213
|
[1] |
Flange screw
|
|
| 19. |
852661
|
[1] |
Spacer sleeve
|
|
| 20. |
945407
|
[1] |
Flange nut
|
|
| 21. |
952637
|
[1] |
Clamp
|
(943717)
|
| 22. |
965552
|
[1] |
Bracket
|
(965570)
|
| 23. |
946934
|
[1] |
Flange screw
|
|
| 24. |
945407
|
[1] |
Flange nut
|
|
| 25. |
946440
|
[1] |
Flange screw
|
|
