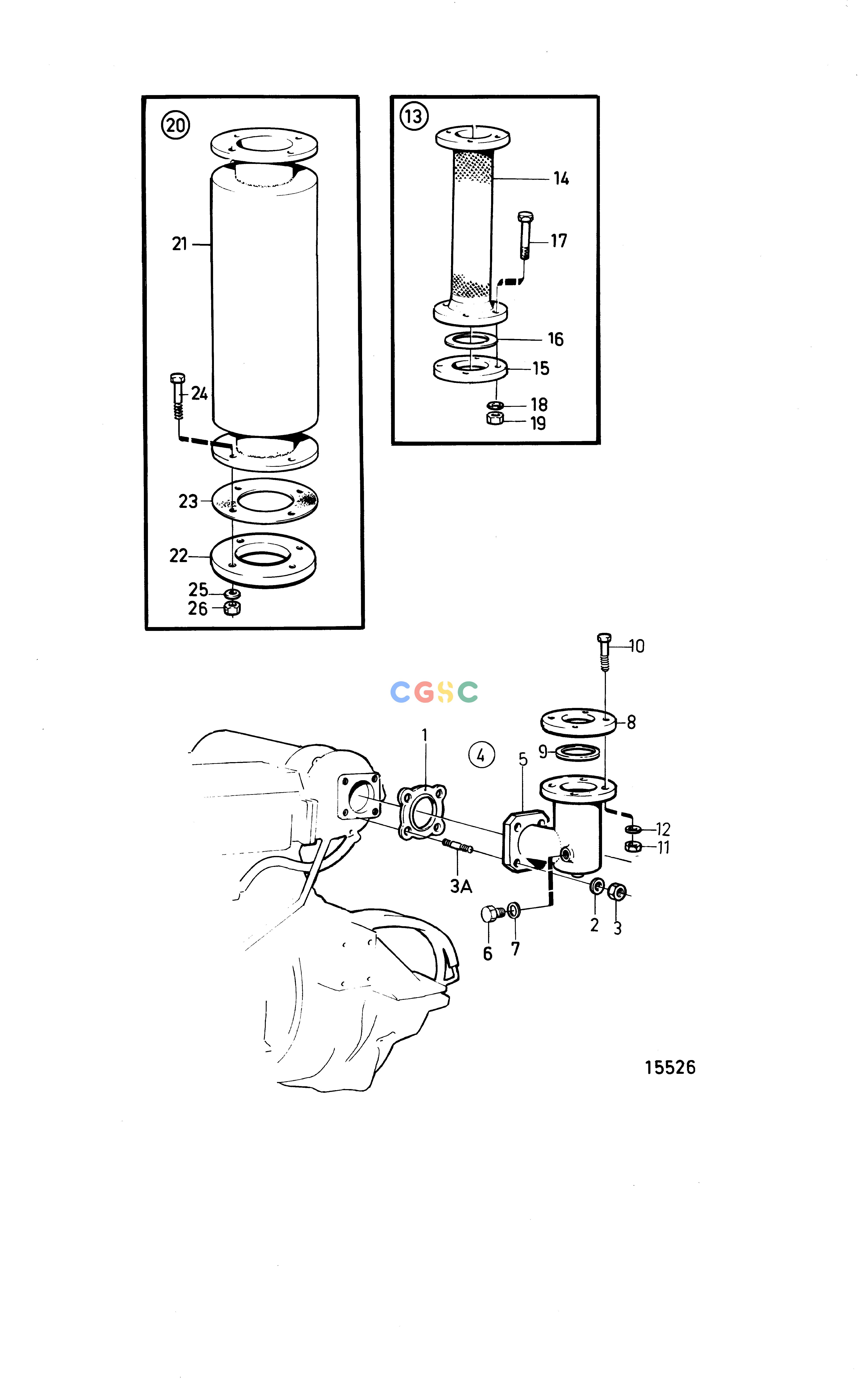

沃尔沃零件查询TAMD61A; TAMD62AIntake and Exhaust SystemDry Exhaust Line 5''(127mm)EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
424630
|
[1] |
Gasket
|
2
|
| 2. |
941908
|
[4] |
Spring washer
|
|
| 3. |
940183
|
[4] |
Hexagon nut
|
|
| 3A. |
479972
|
[4] |
Stud
|
|
| 4. |
|
|
|
|
| 5. |
866126
|
[1] |
Exhaust pipe
|
|
| 6. |
914392
|
[2] |
Plug
|
|
| 7. |
947626
|
[2] |
Gasket
|
|
| 8. |
848647
|
[1] |
Weld flange
|
|
| 9. |
848668
|
[1] |
Gasket
|
|
| 10. |
955366
|
[8] |
Hexagon screw
|
|
| 11. |
941912
|
[8] |
Spring washer
|
|
| 12. |
955785
|
[8] |
Hexagon nut
|
|
| 13. |
|
|
|
|
| 14. |
848667
|
[1] |
Exhaust hose
|
|
| 15. |
848647
|
[2] |
Weld flange
|
|
| 16. |
848668
|
[2] |
Gasket
|
|
| 17. |
955366
|
[8] |
Hexagon screw
|
|
| 18. |
941912
|
[8] |
Spring washer
|
|
| 19. |
955785
|
[8] |
Hexagon nut
|
|
| 20. |
|
|
|
|
| 21. |
836257
|
[1] |
Silencer
|
|
| 22. |
846414
|
[2] |
Weld flange
|
|
| 23. |
826977
|
[2] |
Bushing
|
|
| 24. |
955366
|
[16] |
Hexagon screw
|
|
| 25. |
941912
|
[16] |
Spring washer
|
|
| 26. |
955785
|
[16] |
Hexagon nut
|
|
