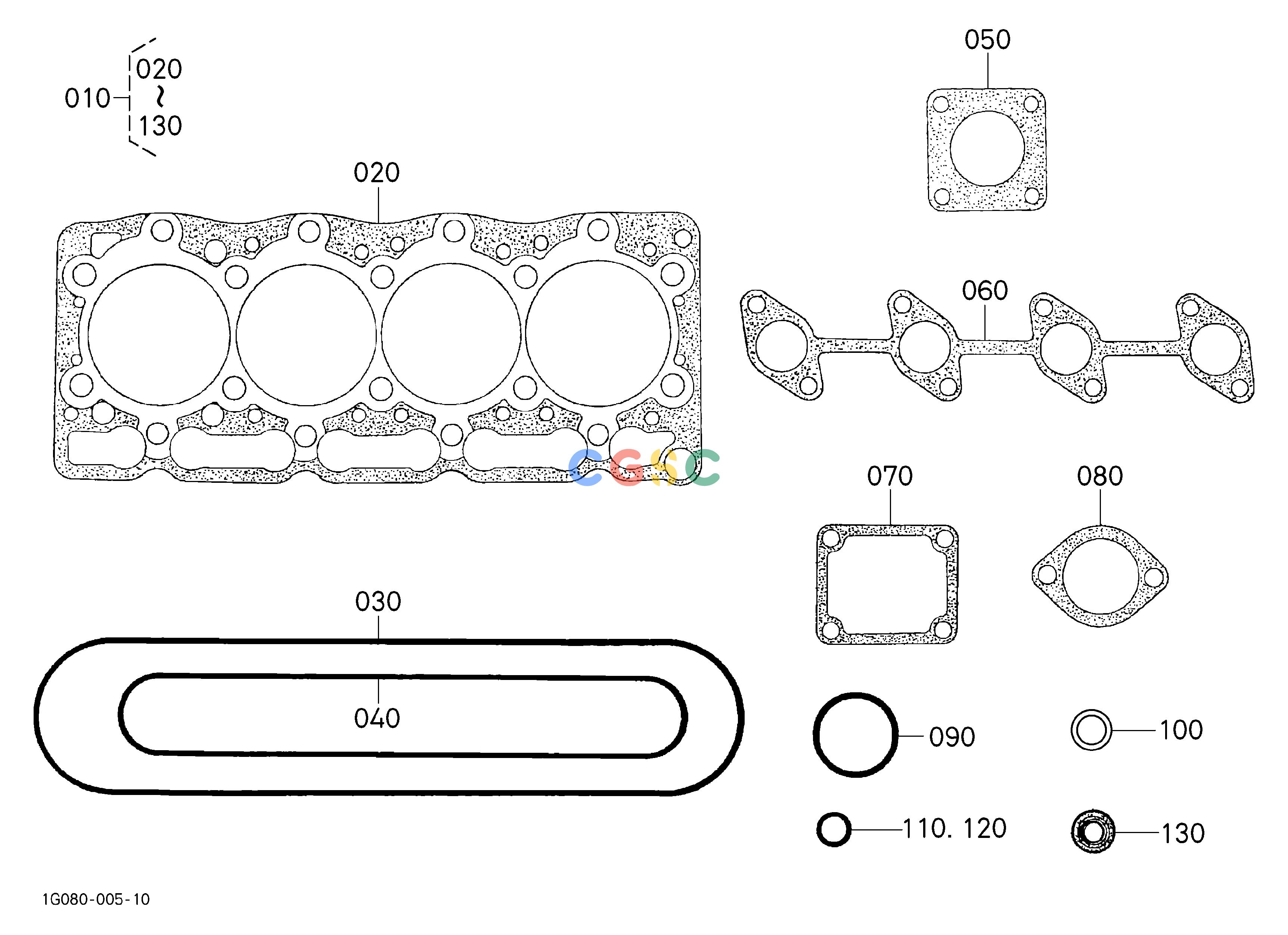

久保田零件查询090002 UPPER GASKET KIT ## S.No.>=4C0001 ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G08999350
|
[1] |
KIT GASKET UPPER
|
0.8690(lbs); 0.395
|
| 020. |
1639403310
|
[1] |
GASKET CYLINDER HEAD
|
0.4400(lbs); 0.200
|
| 030. |
1624114520
|
[1] |
GASKET HEAD COVER
|
0.0264(lbs); 0.012
|
| 040. |
1624111820
|
[1] |
GASKET IN-MANIFOLD
|
0.0220(lbs); 0.010
|
| 050. |
1526312370
|
[1] |
GASKET MUFFLER NA
|
0.0330(lbs); 0.015
|
| 060. |
1629912360
|
[1] |
GASKET EX-MANIFOLD
|
0.0440(lbs); 0.020
|
| 070. |
1626472920
|
[1] |
GASKET WATER FLANGE
|
0.0022(lbs); 0.001
|
| 080. |
1622173270
|
[1] |
GASKET THERMOSTAT
|
0.0022(lbs); 0.001
|
| 090. |
0481450300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
1595196660
|
[4] |
GASKET
|
0.0022(lbs); 0.001
|
| 110. |
0472400100
|
[8] |
GASKET
|
0.0022(lbs); 0.001
|
| 120. |
0472400120
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 130. |
1C01013150
|
[8] |
SEAL VALVE STEM
|
0.0044(lbs); 0.002
|
