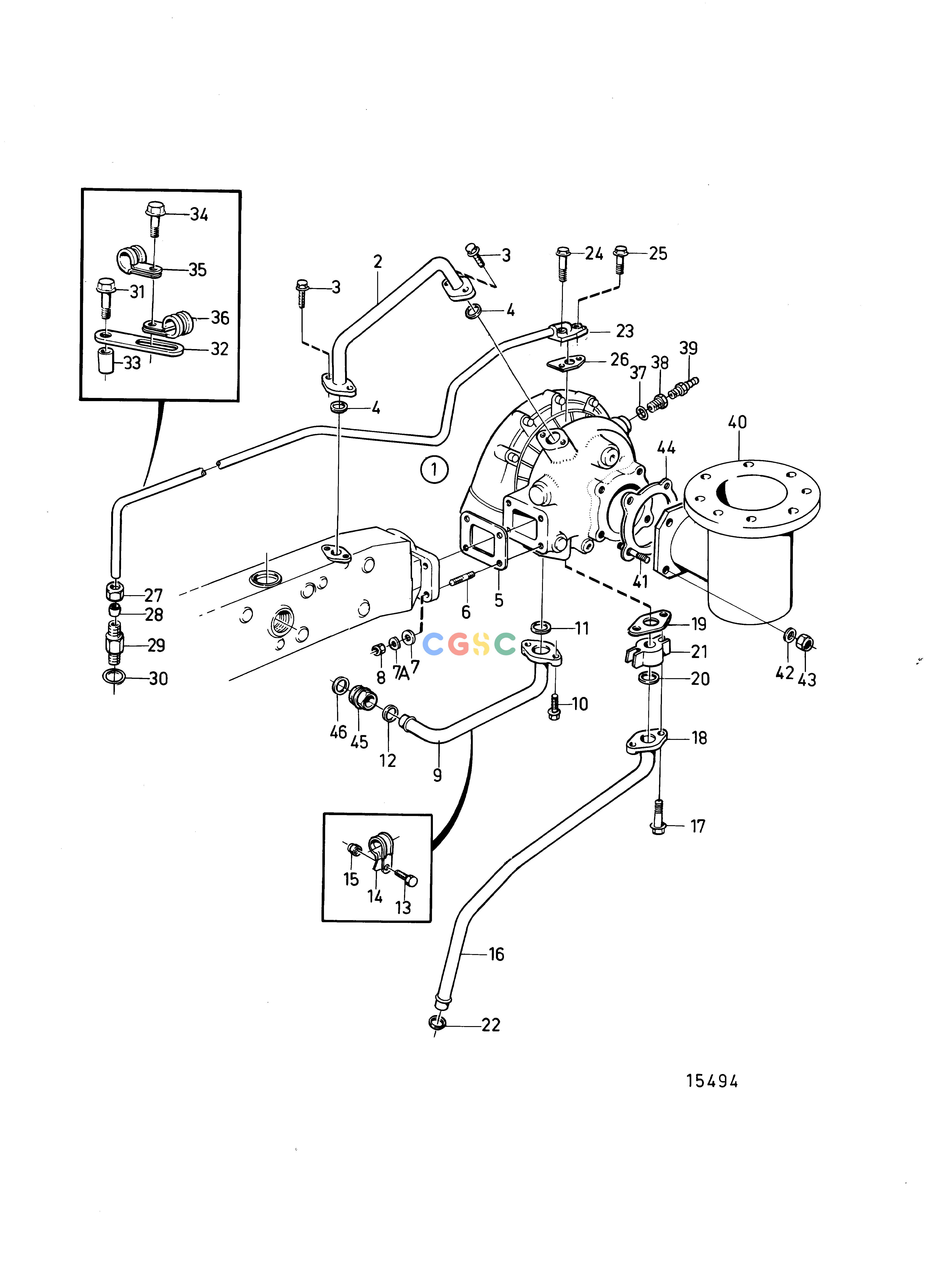

沃尔沃零件查询TAMD61A; TAMD62AIntake and Exhaust SystemTurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848275
|
[1] |
Turbocharger
|
Replaced by 1pc turbocharger 865428, 1pc hose 865367, 1pc hose clamp 943484 and 1pc bracket 865419.,
|
| 1. |
|
|
|
|
| 1. |
3802062
|
[1] |
Turbocharger
|
(865428)
|
| 2. |
847837
|
[1] |
Coolant pipe
|
|
| 3. |
945414
|
[4] |
Flange screw
|
|
| 4. |
831622
|
[2] |
Sealing ring
|
|
| 5. |
421324
|
[1] |
Gasket
|
|
| 6. |
479972
|
[4] |
Stud
|
|
| 7. |
955895
|
[4] |
Washer
|
|
| 7A. |
942336
|
[4] |
Spring washer
|
|
| 8. |
940183
|
[4] |
Hexagon nut
|
|
| 9. |
847838
|
[1] |
Coolant pipe
|
|
| 10. |
945414
|
[2] |
Flange screw
|
|
| 11. |
831622
|
[1] |
Sealing ring
|
|
| 12. |
471626
|
[1] |
Rubber moulding
|
|
| 13. |
955244
|
[1] |
Hexagon screw
|
|
| 14. |
952632
|
[1] |
Clamp
|
|
| 15. |
963104
|
[1] |
Lock nut
|
|
| 16. |
847836
|
[1] |
Oil return pipe
|
|
| 17. |
947760
|
[2] |
Flange screw
|
M8x40mm
|
| 18. |
469543
|
[1] |
Flange
|
|
| 19. |
470993
|
[1] |
Gasket
|
|
| 20. |
469601
|
[1] |
Rubber moulding
|
|
| 21. |
8148729
|
[1] |
Connector
|
(469542)
|
| 22. |
471626
|
[1] |
Rubber moulding
|
|
| 23. |
847834
|
[1] |
Oil pressure pipe
|
|
| 24. |
946671
|
[1] |
Flange screw
|
M8x30mm
|
| 25. |
945444
|
[1] |
Flange screw
|
M8x25mm
|
| 26. |
420641
|
[1] |
Gasket
|
|
| 27. |
956984
|
[1] |
Fitting nut
|
|
| 28. |
956970
|
[1] |
Ferrule
|
|
| 29. |
963948
|
[1] |
Nipple
|
|
| 30. |
948883
|
[1] |
Gasket
|
(947622)
|
| 31. |
946472
|
[1] |
Flange screw
|
|
| 32. |
965536
|
[1] |
Bracket
|
|
| 33. |
930076
|
[1] |
Spacer sleeve
|
|
| 34. |
947107
|
[1] |
Flange screw
|
|
| 35. |
946834
|
[1] |
Clamp
|
|
| 36. |
949746
|
[1] |
Clamp
|
|
| 37. |
947627
|
[1] |
Gasket
|
|
| 38. |
862173
|
[1] |
Nipple
|
|
| 39. |
949918
|
[1] |
Shut-off cock
|
|
| 40. |
|
|
|
|
| 41. |
479972
|
[4] |
Stud
|
(924079)
|
| 42. |
942336
|
[4] |
Spring washer
|
|
| 43. |
940183
|
[4] |
Hexagon nut
|
|
| 44. |
424630
|
[1] |
Gasket
|
|
| 45. |
848565
|
[1] |
Nipple
|
|
| 46. |
469328
|
[1] |
Gasket
|
|
