纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (04-002) - ELEMENT KIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
742 次

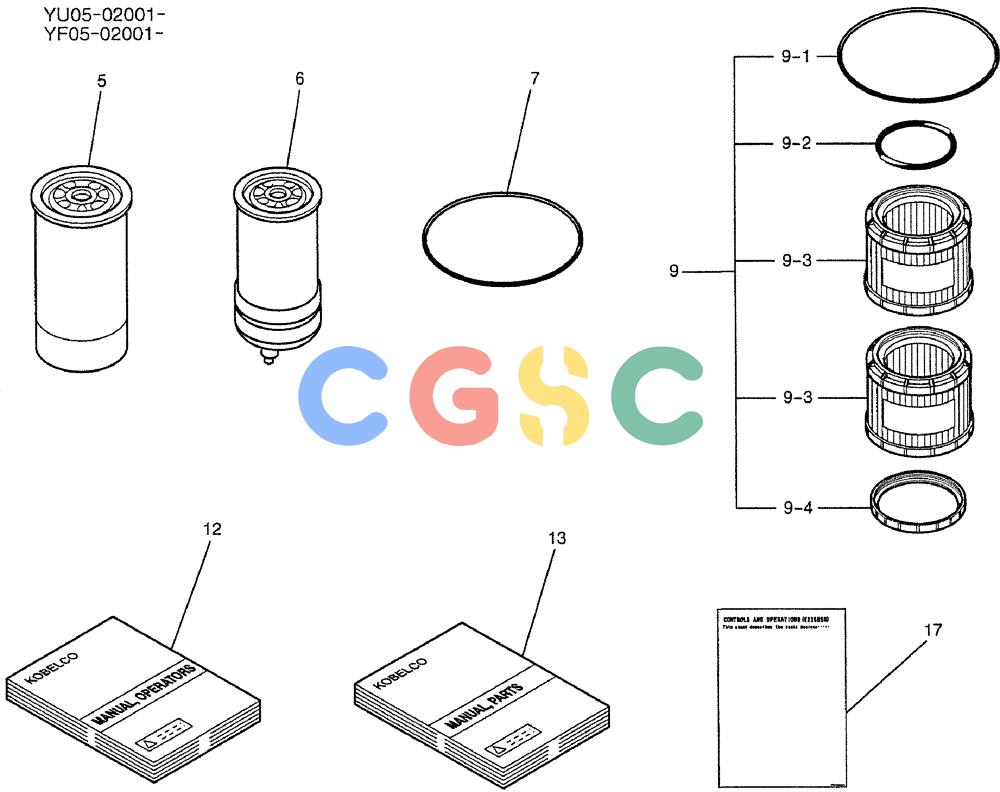

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF30T00003F4 | [1] | ELEMENT KIT | |
| 5. | YN30T01001P1 | [1] | ELEMENT | KOBELEMENT OIL Superseded by part number: VHS156072190 |
| 6. | YN30T01002P1 | [1] | ELEMENT | KOBELEMENT FUEL Superseded by part number: VH23390E0011 |
| 7. | 2445Z1136 | [4] | O-RING | KOB |
| 9. | YN52V01008R200 | [1] | ELEMENT | KOBELEMENT KIT Superseded by part number: YN52V01016R210 |
| 9-1. | ZD11G19000 | [1] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOB |
| 9-2. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| 9-3. | YN52V01013P1 | [2] | HYDRAULIC OIL FILTER | KOBFILTER Superseded by part number: YN52V01021P1 |
| 9-4. | YN52V01008S005 | [1] | PACKING | KOB |
| 12. | YF91Z00010D3 | [1] | MANUAL, OPERATORS | |
| 13. | YF91Z00012D3 | [1] | MANUAL, PARTS | |
| 17. | YF91Z00015P1 | [1] | MANUAL, OPERATORS, Start Serial: YU05-02063 | |
