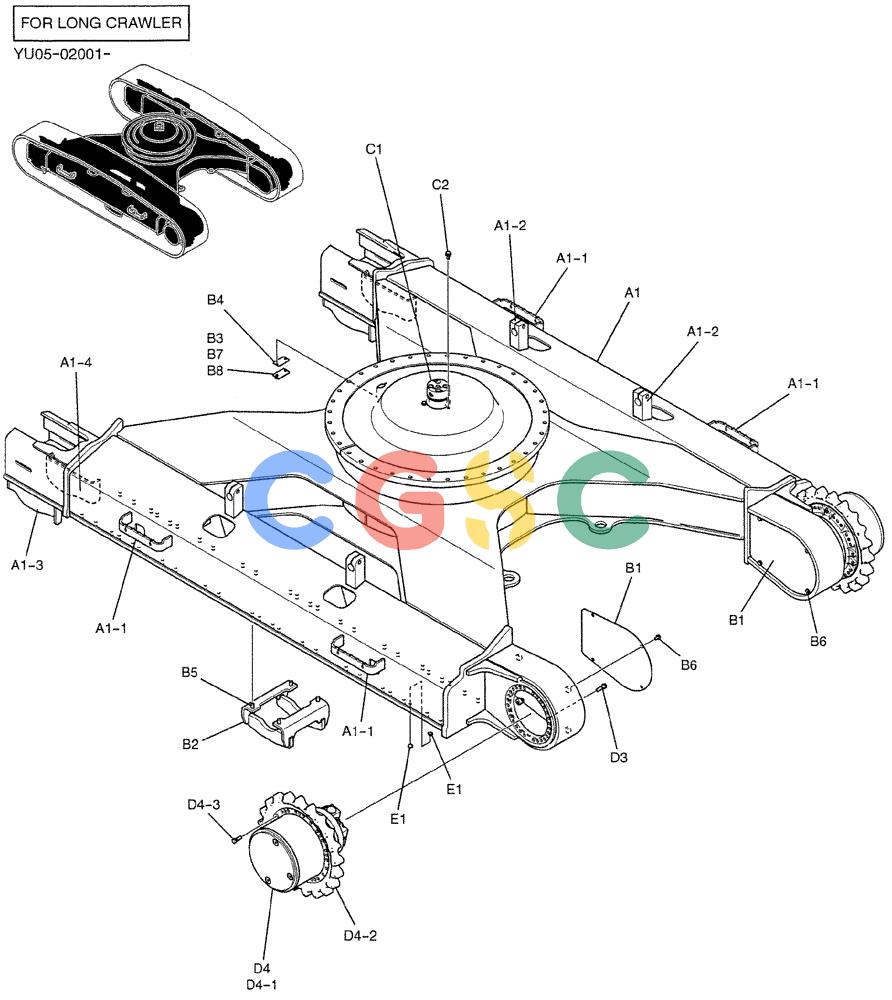

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (02-002) - LOW GROUP (FOR LONG CRAWLER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
596 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | LQ02F00071P1 | [1] | FRAME LOW | |
| A1-1. | YN41C00060P1 | [4] | STEP | KOB Superseded by part number: YN41C00077P1 |
| A1-2. | YN07F01270P1 | [4] | SUPPORT | KOB |
| A1-3. | YN07F01075P1 | [2] | GUIDE | KOB |
| A1-4. | YN07F01076P1 | [2] | GUIDE | KOB |
| . . | LQ01F00038F1 | [1] | LOW GROUP | |
| B1. | LQ01F01059P1 | [2] | COVER | KOB |
| B2. | YN63D00003P1 | [2] | GUIDE | KOBTRACK Superseded by part number: YN63D00003P2 |
| B3. | 2422T556 | [1] | PLATE | KOB |
| B4. | 2418T12274 | [1] | PACKING | KOBRUBBER |
| B5. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBSCREW |
| B6. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBSEMS |
| B7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBCAP |
| B8. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | YN19H00053F1 | [1] | JOINT INSTAL, SWIVEL | |
| C1. | YN55V00053F1 | [1] | CENTER JOINT | KOBASSY, SWIVEL |
| . . | LQ53D00010F1 | [1] | MOTOR INSTAL, PROPEL | |
| D3. | 2420P2963D3 | [56] | CAP | KOBSCREW |
| D4. | LQ53D00011F1 | [2] | MOTOR ASSY, PROPEL | |
| D4-1. | LQ15V00020F1 | [1] | HYDRAULIC MOTOR | SMASSY, PROPEL Superseded by part number: |
| D4-2. | LQ51D01004P1 | [1] | DRIVING SPROCKET | SMSPROCKET Superseded by part number: LQ51D01004P2 |
| D4-3. | ZS13C16045 | [30] | SCREW | KOBSCREW |
| . . | LQ01F01061F1 | [1] | CAP ASSY | |
| E1. | YN01F01040P1 | [32] | CAP | KOB Superseded by part number: YY01F01047P1 |
