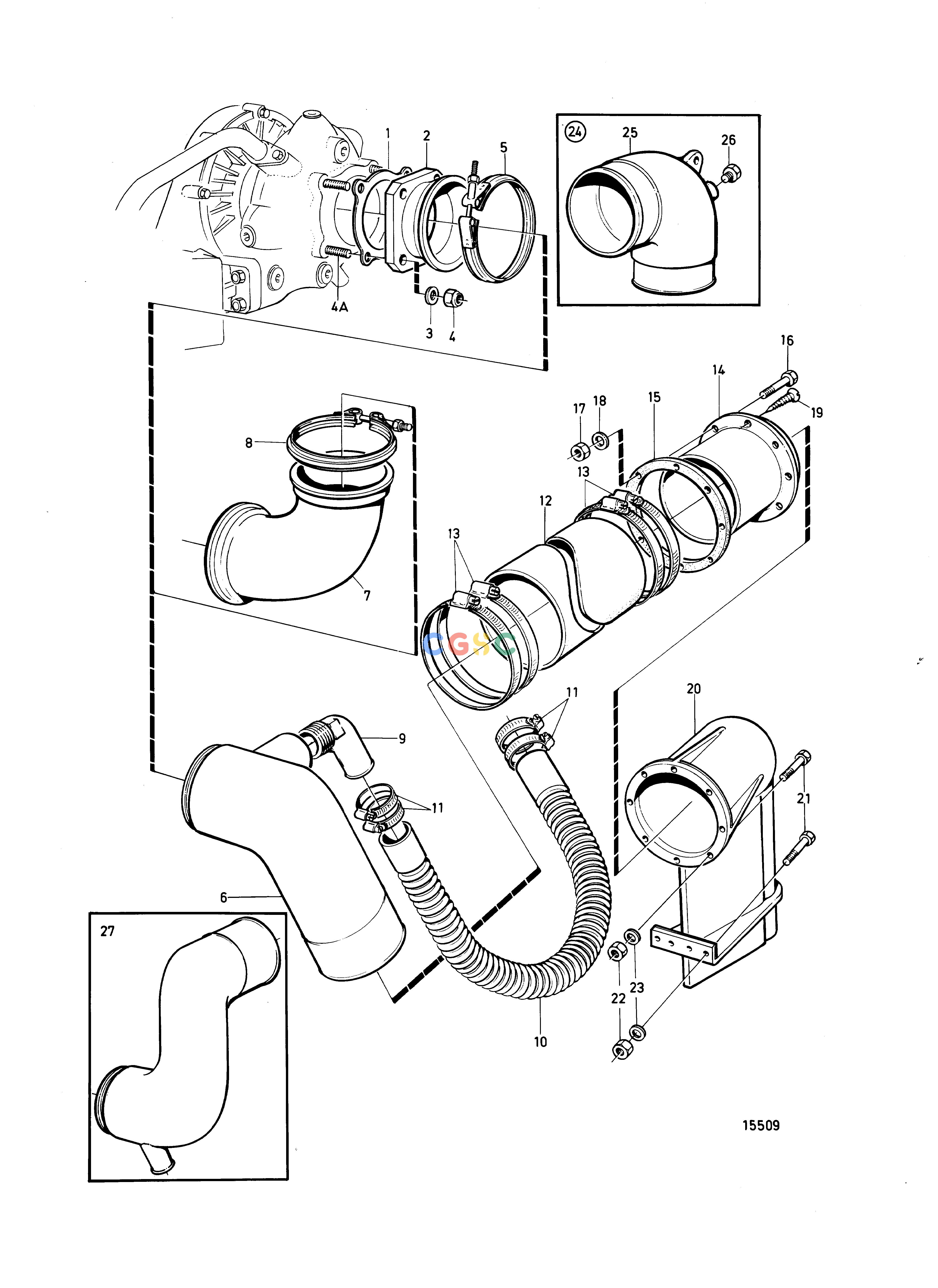

沃尔沃零件查询TAMD61A; TAMD62AIntake and Exhaust SystemWater Cooled Exhaust Line 5''(127) Incl. Exh.riserEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
477 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
424630
|
[1] |
Gasket
|
|
| 2. |
864952
|
[1] |
Flange
|
|
| 3. |
941908
|
[4] |
Spring washer
|
|
| 4. |
940183
|
[4] |
Hexagon nut
|
|
| 4A. |
479972
|
[4] |
Stud
|
|
| 5. |
865013
|
[2] |
V-clamp
|
|
| 6. |
865545
|
[1] |
Exhaust pipe elbow
|
|
| 7. |
865075
|
[1] |
Exhaust pipe elbow
|
Alt, 90°
|
| 8. |
865013
|
[1] |
V-clamp
|
Alt
|
| 9. |
848420
|
[1] |
Hose connection
|
|
| 10. |
3886729
|
[1] |
Hose
|
Oil cooler, reverse gear-exhaust pipe elbow.
|
| 11. |
943485
|
[4] |
Hose clamp
|
|
| 12. |
828489
|
[1] |
Exhaust hose
|
|
| 13. |
961672
|
[4] |
Hose clamp
|
|
| 14. |
836757
|
[1] |
Hull fitting
|
|
| 15. |
836758
|
[1] |
Gasket
|
|
| 16. |
941815
|
[8] |
Cross recessed screw
|
|
| 17. |
940190
|
[8] |
Hexagon nut
|
|
| 18. |
836768
|
[8] |
Spring washer
|
|
| 19. |
836769
|
[8] |
Wood screw
|
|
| 20. |
836823
|
[1] |
Silencer
|
|
| 21. |
959942
|
[16] |
Hexagon screw
|
|
| 22. |
940190
|
[16] |
Hexagon nut
|
|
| 23. |
940191
|
[16] |
Washer
|
|
| 24. |
|
|
|
90°, earlier prod
|
| 25. |
836925
|
[1] |
Pipe elbow
|
|
| 26. |
807044
|
[1] |
Plug
|
|
| 27. |
865949
|
[1] |
Exhaust riser
|
|
