纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (02-004) - RING ASSY, SLEWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
599 次

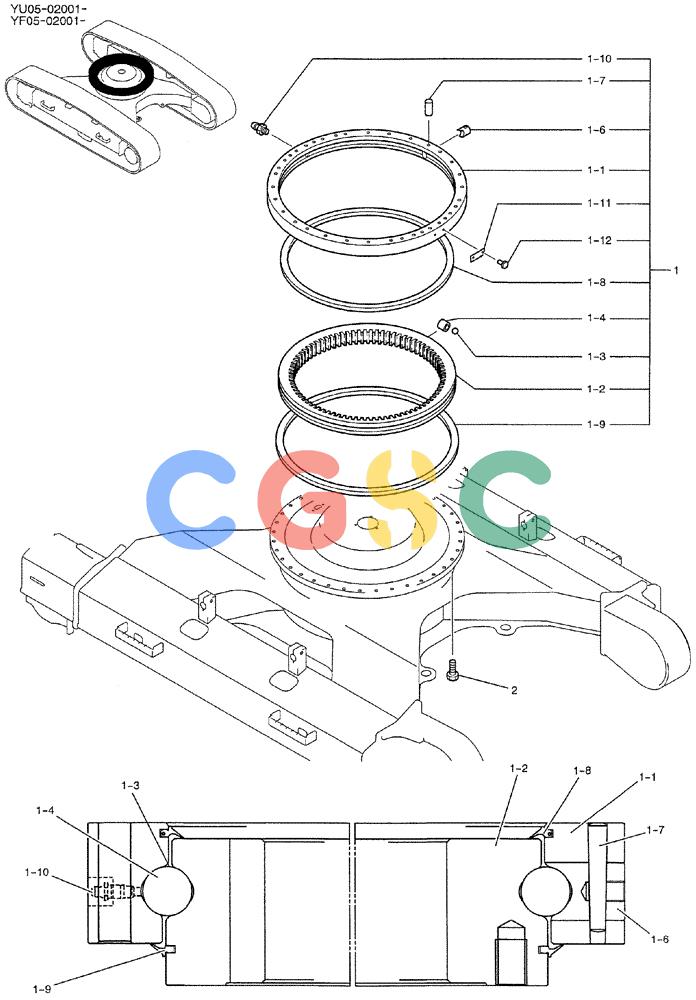

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF40F00008F1 | [1] | RING ASSY, SLEWING | |
| 1. | YF40F00007F1 | [1] | RING | KOBRING ASSY, SLEWING Superseded by part number: YF40F00007F2 |
| 1-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONRACE, OUTER |
| 1-8. | YF40F00007S008 | [1] | SEAL | KOBSEAL Superseded by part number: LQ40F00015S009 |
| 1-9. | YF40F00007S009 | [1] | SEAL | KOBSEAL Superseded by part number: LQ40F00015S009 |
| 2. | LQ40F01001P1 | [36] | SCREW,M20 x 1.5 x 70mm | KOBCAP |
