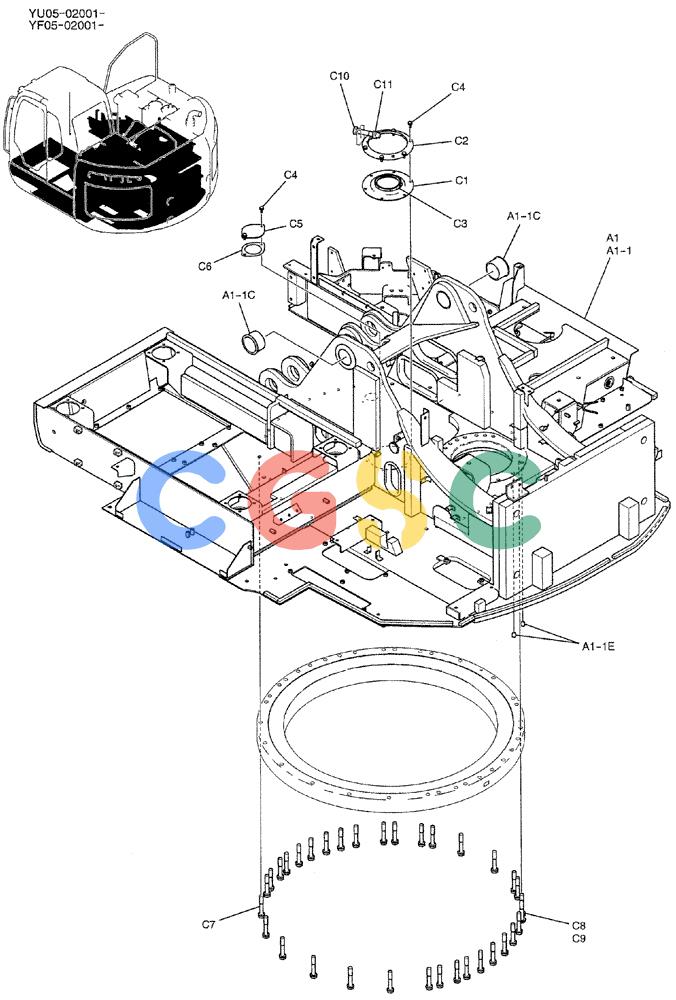

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-001[01]) - FRAME ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF52F00067F1 | [1] | FRAME ASSY, UPP | |
| A1. | YF52F00066F1 | [1] | FRAME ASSY, UPP | |
| A1-1. | YF52F00062P1 | [1] | FRAME, UPP | |
| A1-1C. | YF52F01192P1 | [2] | BUSHING | KOB |
| A1-1E. | ZS83C20020 | [2] | SCREW | KOBSET |
| . . | YF52F00071F1 | [1] | FRAME GROUP, UPP | |
| . . | YB52F00060F1 | [1] | FRAME GROUP, UPP | |
| B1. | YF52F01251P1 | [2] | RUBBER BAND | KOB |
| B2. | YF52F01209P1 | [1] | FOAM INSULATION | KOB |
| B3. | YB52F01172P1 | [1] | FOAM INSULATION | KOB |
| B4. | YF52F01202P1 | [1] | FOAM INSULATION | KOB |
| B5. | YF52F01203P1 | [1] | FOAM INSULATION | KOB |
| B6. | YB52F01173P1 | [1] | FOAM INSULATION | KOB |
| B7. | YB52F01180P1 | [1] | FOAM INSULATION | KOB |
| B8. | YB52F01181P1 | [1] | FOAM INSULATION | KOBINSULATION |
| B9. | YB52F01182P1 | [1] | FOAM INSULATION | KOBINSULATION |
| B10. | YB52F01158P1 | [1] | FOAM INSULATION | KOB |
| B11. | YB52F01159P1 | [1] | FOAM INSULATION | KOB |
| B12. | YF52F01282P1 | [1] | FOAM INSULATION | KOB |
| B13. | YF52F01248P1 | [1] | RUBBER BAND | KOB |
| B14. | YF52F01283P1 | [1] | RUBBER BAND | KOB |
| B15. | YF52F01213P1 | [1] | FOAM INSULATION | KOB |
| B16. | YF52F01250P1 | [1] | FOAM INSULATION | KOBINSULATION Superseded by part number: YF52F01250P2 |
| B17. | YF64H01050P1 | [1] | GROMMET | KOBGROMMET Superseded by part number: YF64H01050P2 |
| B18. | YF64H01032P1 | [1] | GROMMET | KOB |
| B19. | YB21P01001P1 | [2] | GROMMET | KOB |
| B20. | YF64H01052P1 | [1] | GROMMET | KOB |
| B21. | YF64H01051P1 | [1] | GROMMET | KOB |
| B22. | YF52F01233P1 | [3] | GROMMET | KOB |
| B23. | YF52F01249P1 | [1] | FOAM INSULATION | KOB |
| B25. | YX52F01071D4 | [1] | INSULATING PANEL | KOB Superseded by part number: YY52F01567D5 |
| B26. | YX52F01071D1 | [1] | RUBBER | KOB Superseded by part number: YY52F01567D5 |
| B27. | YX52F01071D2 | [2] | RUBBER | KOB Superseded by part number: YY52F01567D5 |
| B30. | YX52F01071D5 | [2] | INSULATING PANEL | KOB Superseded by part number: YY52F01567D5 |
| B31. | YB52F01174P1 | [1] | RUBBER BAND | KOB |
| B32. | YF52F01206P1 | [1] | FOAM INSULATION | KOBINSULATION Superseded by part number: YF52F01448P1 |
| B33. | YF52F01267P1 | [1] | RUBBER BAND | KOB |
| B34. | YF52F01284P1 | [1] | RUBBER BAND | KOB |
| B35. | YF52F01266P1 | [1] | RUBBER BAND | KOB |
| B36. | LS21C01104D1 | [1] | INSULATING PANEL | KOB |
| B39. | YF52F01310P1 | [1] | FOAM INSULATION | KOB |
| B40. | YF52F01309P1 | [1] | FOAM INSULATION | KOB |
| B41. | YF52F01308P1 | [1] | FOAM INSULATION | KOB |
| B42. | YF52F01307P1 | [1] | FOAM INSULATION | KOB |
| B43. | YF52F01313P1 | [1] | FOAM INSULATION | KOB |
| B44. | YF52F01311P1 | [1] | FOAM INSULATION | KOB |
| B45. | YF52F01306P1 | [1] | FOAM INSULATION | KOB |
| B46. | YF52F01312P1 | [1] | FOAM INSULATION | KOB |
| . . | YF52F00063F1 | [1] | FRAME GROUP, UPP | |
| C1. | YN52F01857P1 | [1] | SEAL | KOB |
| C2. | YN52F01615P1 | [1] | PLATE | SM |
| C3. | ZC16X12200 | [1] | CLIP | KOB |
| C4. | ZM73C10025 | [8] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
| C5. | YN52F01159P1 | [1] | PLATE | KOB |
| C6. | 2416Z434 | [1] | PACKING | KOBRUBBER |
| C7. | YN52F01100D2 | [33] | SCREW | KOBCAP |
| C8. | HS53C20120G1 | [1] | CAP,Hex, M20 x 120mm | KOBSCREW |
| C9. | ZW13H20000 | [1] | WASHER | KOB |
| C10. | ZS18F24130 | [1] | SCREW | KOBCAP, Serial Range: YU05-02001-YU05-02066 |
| C10. | ZS18F24140 | [1] | SCREW | KOBCAPSCREW, Start Serial: YU05-02067 |
| C11. | ZN18F24019 | [1] | NUT | KOB |
