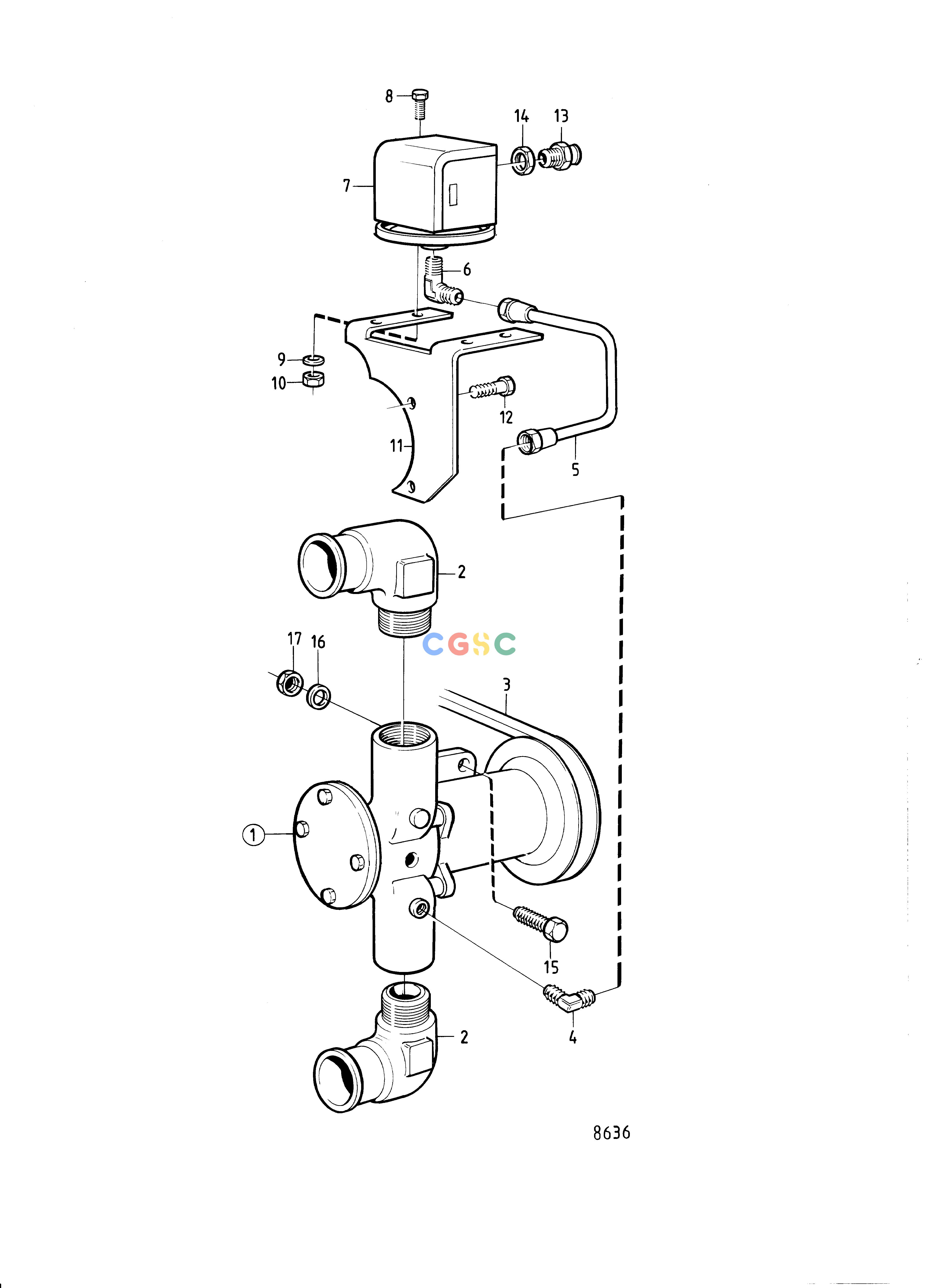

沃尔沃零件查询TAMD61A; TAMD62AMiscellaneous EquipmentBilge Pump 2''EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846105
|
[1] |
Bilge pump
|
2
|
| 1. |
|
|
|
|
| 2. |
813644
|
[2] |
Hose attachment
|
|
| 3. |
863186
|
[1] |
V-belt
|
When the pump is mounted on the bracket., L=1218mm
|
| 3. |
846361
|
[1] |
V-belt
|
When the pump is mounted on the clutch., L=1160mm
|
| 4. |
954343
|
[1] |
Elbow nipple
|
|
| 5. |
846253
|
[1] |
Copper tube
|
|
| 6. |
944155
|
[1] |
Elbow nipple
|
|
| 7. |
1144047
|
[1] |
Toggle switch
|
|
| 8. |
950005
|
[4] |
Cross recessed screw
|
|
| 9. |
941904
|
[4] |
Spring washer
|
|
| 10. |
940119
|
[4] |
Hexagon nut
|
|
| 11. |
846218
|
[1] |
Bracket
|
|
| 12. |
955525
|
[2] |
Hexagon screw
|
|
| 13. |
822327
|
[1] |
Grommet
|
|
| 13. |
881192
|
[1] |
Grommet
|
|
| 14. |
880243
|
[2] |
Nut
|
|
| 15. |
955318
|
[4] |
Hexagon screw
|
|
| 16. |
941908
|
[4] |
Spring washer
|
|
| 17. |
955783
|
[4] |
Hexagon nut
|
|
