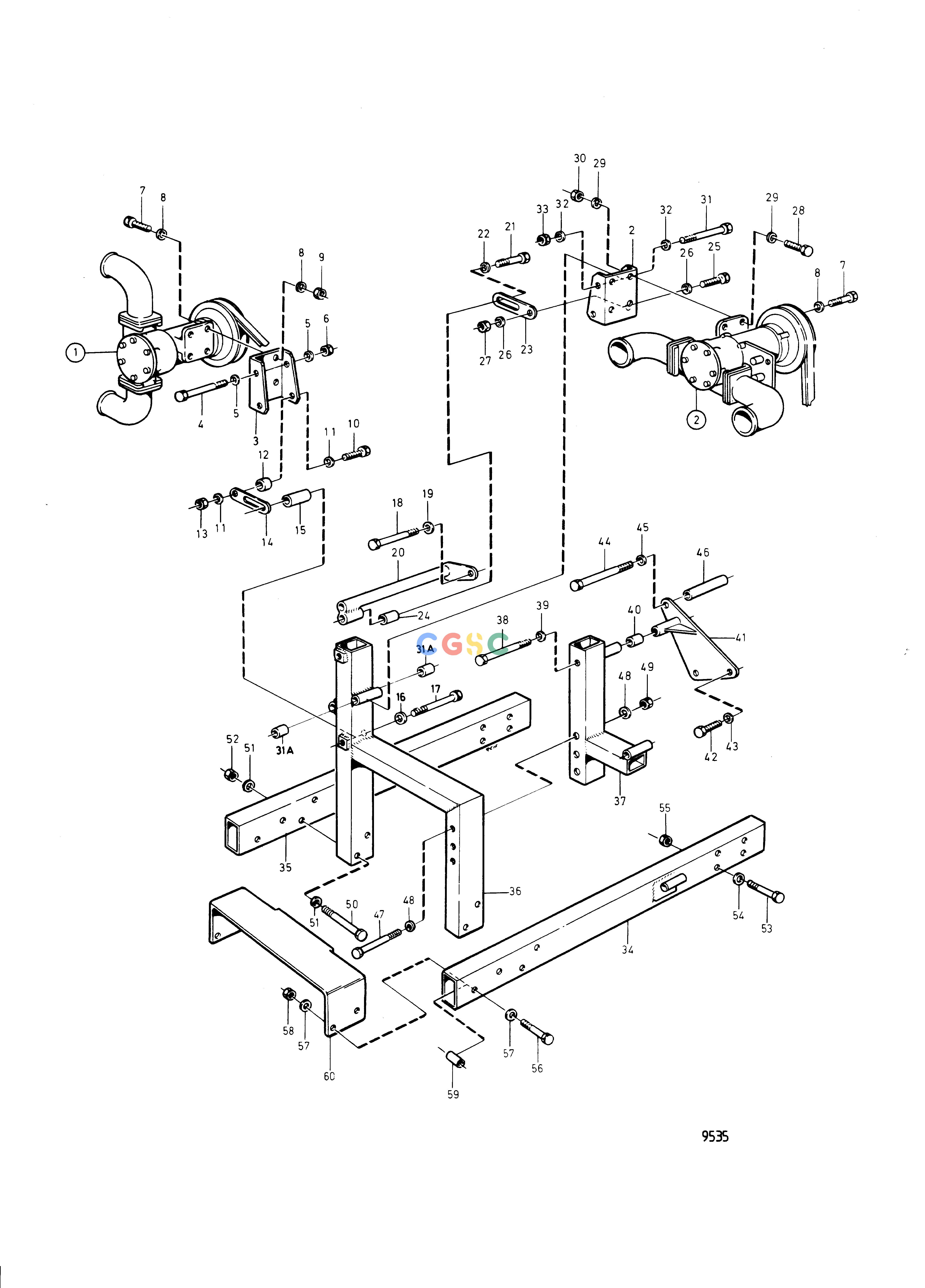

沃尔沃零件查询TAMD61A; TAMD62AMiscellaneous EquipmentBracket for Flushing/Bilge Pump with Inst. CompsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
632 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846104
|
[1] |
Sea water pump
|
1 1/4''
|
| 1. |
|
|
|
|
| 2. |
846105
|
[1] |
Bilge pump
|
2
|
| 2. |
|
|
|
|
| 3. |
847950
|
[2] |
Bracket
|
|
| 4. |
970960
|
[1] |
Hexagon screw
|
|
| 5. |
941908
|
[2] |
Spring washer
|
|
| 6. |
955783
|
[1] |
Hexagon nut
|
|
| 7. |
970948
|
[4] |
Hexagon screw
|
|
| 8. |
941908
|
[4] |
Spring washer
|
|
| 9. |
955783
|
[4] |
Hexagon nut
|
|
| 10. |
955295
|
[1] |
Hexagon screw
|
|
| 11. |
941907
|
[2] |
Spring washer
|
|
| 12. |
807183
|
[1] |
Spacer sleeve
|
|
| 13. |
955782
|
[1] |
Hexagon nut
|
|
| 14. |
807185
|
[1] |
Tensioner
|
|
| 15. |
845589
|
[1] |
Spacer sleeve
|
|
| 16. |
966674
|
[1] |
Washer
|
(960141)
|
| 17. |
940129
|
[1] |
Hexagon screw
|
|
| 18. |
940129
|
[1] |
Hexagon screw
|
|
| 19. |
966674
|
[1] |
Washer
|
(960141)
|
| 20. |
848493
|
[1] |
Bracket
|
|
| 21. |
940129
|
[1] |
Hexagon screw
|
|
| 22. |
966674
|
[1] |
Washer
|
(960141)
|
| 23. |
807185
|
[1] |
Tensioner
|
|
| 24. |
807183
|
[1] |
Spacer sleeve
|
Early type
|
| 25. |
955295
|
[1] |
Hexagon screw
|
|
| 26. |
941907
|
[2] |
Spring washer
|
|
| 27. |
955782
|
[1] |
Hexagon nut
|
|
| 28. |
970948
|
[4] |
Hexagon screw
|
|
| 29. |
941908
|
[8] |
Spring washer
|
|
| 30. |
955783
|
[4] |
Hexagon nut
|
|
| 31. |
970960
|
[1] |
Hexagon screw
|
|
| 31A. |
863990
|
[1] |
Spacer sleeve
|
|
| 32. |
941908
|
[2] |
Spring washer
|
|
| 33. |
955783
|
[1] |
Hexagon nut
|
|
| 34. |
849601
|
[1] |
Bracket
|
|
| 35. |
847985
|
[1] |
Anchor
|
|
| 36. |
847943
|
[1] |
Bracket
|
Bracket 847943 replaced by 1pc bracket 863991 and 2pcs sleeves 863990
|
| 36. |
863991
|
[1] |
Bracket
|
|
| 37. |
847947
|
[1] |
Bracket
|
|
| 38. |
970963
|
[1] |
Hexagon screw
|
|
| 39. |
941908
|
[1] |
Spring washer
|
|
| 40. |
823575
|
[1] |
Spacer sleeve
|
|
| 41. |
848495
|
[1] |
Bracket
|
|
| 42. |
955297
|
[2] |
Hexagon screw
|
|
| 43. |
941907
|
[2] |
Spring washer
|
|
| 44. |
970966
|
[2] |
Hexagon screw
|
|
| 45. |
941908
|
[1] |
Spring washer
|
|
| 45. |
960148
|
[1] |
Washer
|
|
| 46. |
822791
|
[1] |
Spacer sleeve
|
|
| 47. |
970964
|
[3] |
Hexagon screw
|
|
| 48. |
960143
|
[6] |
Washer
|
|
| 49. |
955783
|
[3] |
Hexagon nut
|
|
| 50. |
970960
|
[4] |
Hexagon screw
|
|
| 51. |
960143
|
[8] |
Washer
|
|
| 52. |
955783
|
[4] |
Hexagon nut
|
|
| 53. |
970956
|
[8] |
Hexagon screw
|
|
| 54. |
960143
|
[16] |
Washer
|
|
| 55. |
955783
|
[8] |
Hexagon nut
|
|
| 56. |
955302
|
[4] |
Hexagon screw
|
|
| 57. |
966674
|
[8] |
Washer
|
(960141)
|
| 58. |
946330
|
[4] |
Hexagon nut
|
|
| 59. |
807182
|
[1] |
Spacer sleeve
|
|
| 60. |
847951
|
[1] |
Bracket
|
For servo pump
|
| 60. |
7746650_116
|
|
Pulley, extra
|
|
