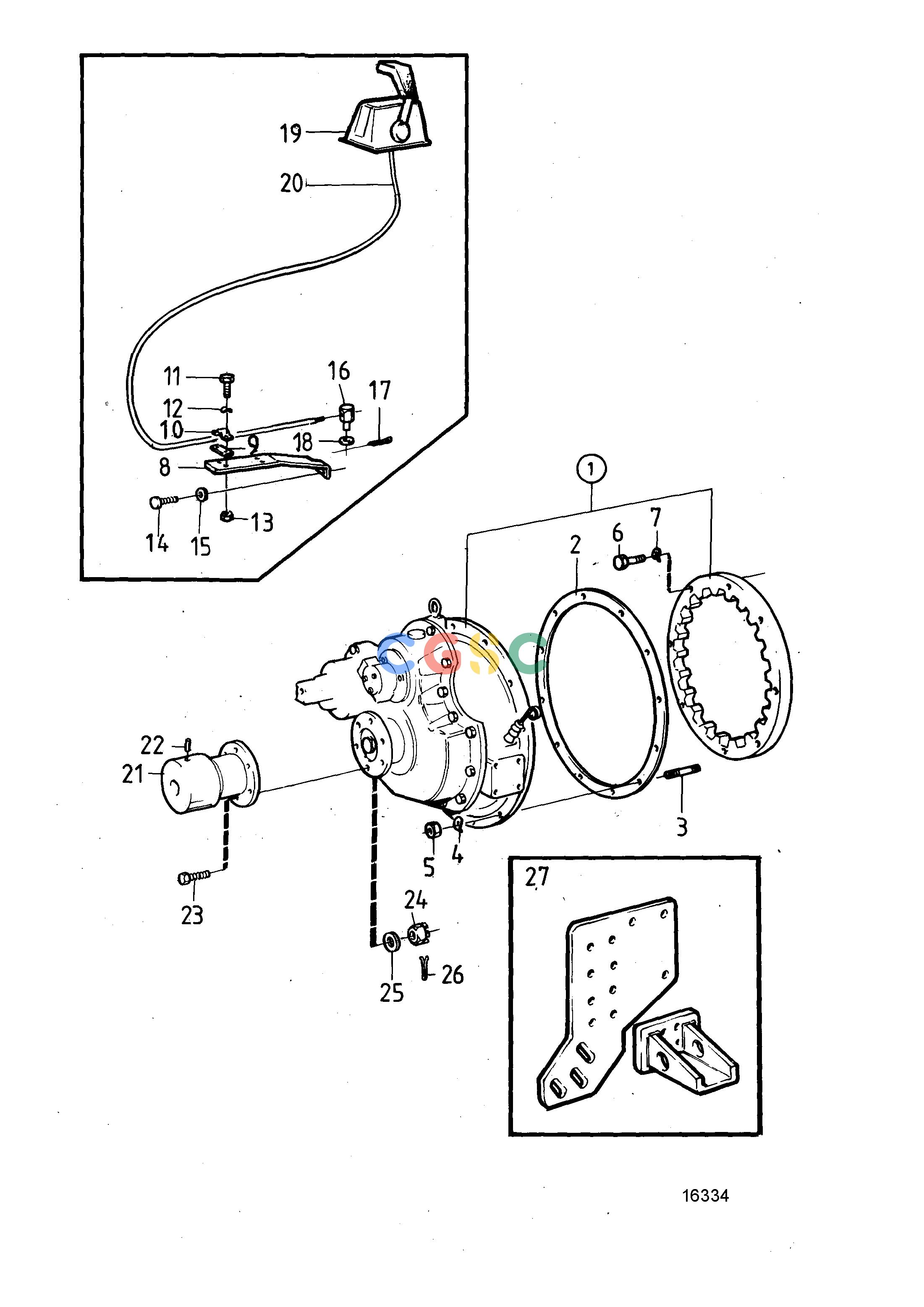

沃尔沃零件查询TAMD61A; TAMD62ATransmissionsReverse Gear MG 506AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
531 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
862623
|
[1] |
Gasket
|
|
| 3. |
953486
|
[12] |
Stud
|
Later prod
|
| 3. |
955536
|
[1] |
Hexagon screw
|
Early type
|
| 4. |
942336
|
[12] |
Spring washer
|
|
| 5. |
955827
|
[12] |
Hexagon nut
|
|
| 6. |
940162
|
[8] |
Hexagon screw
|
|
| 7. |
942336
|
[8] |
Spring washer
|
|
| 8. |
863483
|
[1] |
Bracket
|
|
| 9. |
819068
|
[1] |
Washer
|
|
| 10. |
21471054
|
[1] |
Bracket
|
For control cable 333, 33C.
|
| 10. |
6853782
|
[1] |
Cable clamp
|
For control cable 443, 43C.
|
| 11. |
956079
|
[2] |
Cross recessed screw
|
|
| 12. |
941905
|
[2] |
Spring washer
|
Later prod
|
| 13. |
963104
|
[2] |
Lock nut
|
|
| 14. |
970948
|
[1] |
Hexagon screw
|
|
| 15. |
941908
|
[1] |
Spring washer
|
|
| 16. |
853217
|
[1] |
Cube
|
|
| 17. |
17253
|
[1] |
Split pin
|
|
| 18. |
940191
|
[1] |
Washer
|
|
| 19. |
|
|
|
See group 27
|
| 20. |
|
|
|
See group 27
|
| 21. |
|
|
|
|
| 22. |
830738
|
[1] |
Clutch flange
|
|
| 23. |
955737
|
[6] |
Hexagon screw
|
|
| 24. |
955886
|
[6] |
Castle nut
|
|
| 25. |
941912
|
[6] |
Spring washer
|
|
| 26. |
907861
|
[6] |
Split pin
|
|
| 27. |
|
|
|
See group 21
|
