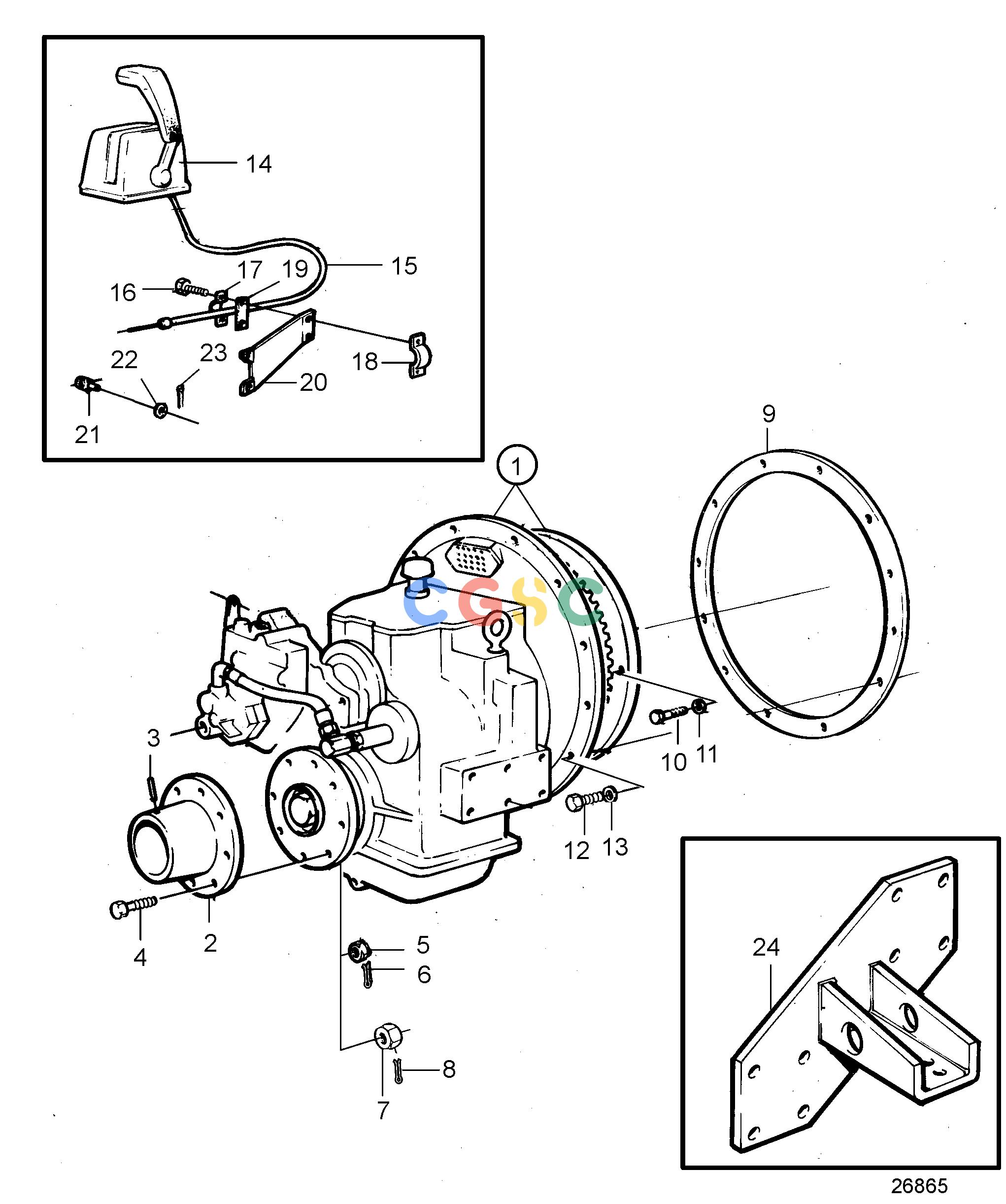

沃尔沃零件查询TAMD61A; TAMD62ATransmissionsReverse Gear MG 509EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
837093
|
[1] |
Clutch flange
|
For reverse gear ratio 3.80:1-.
|
| 2. |
837055
|
[1] |
Clutch flange
|
For reverse gear ratio -3.00:1
|
| 3. |
907661
|
[2] |
Taper pin
|
For reverse gear ratio 3.80:1-
|
| 3. |
965011
|
[2] |
Pin
|
For reverse gear ratio -3.00:1
|
| 4. |
955773
|
[8] |
Hexagon screw
|
For reverse gear ratio 3.80:1-
|
| 4. |
955750
|
[6] |
Hexagon screw
|
For reverse gear ratio -3.00:1
|
| 5. |
955889
|
[8] |
Castle nut
|
For reverse gear ratio 3.80:1-
|
| 6. |
955887
|
[6] |
Castle nut
|
For reverse gear ratio -3.00:1.
|
| 7. |
907881
|
[8] |
Split pin
|
For reverse gear ratio 3.80:1-.
|
| 8. |
907861
|
[6] |
Split pin
|
For reverse gear ratio -3.00:1.
|
| 9. |
862623
|
[1] |
Gasket
|
|
| 10. |
940162
|
[8] |
Hexagon screw
|
|
| 11. |
942336
|
[8] |
Spring washer
|
|
| 12. |
955535
|
[12] |
Hexagon screw
|
|
| 13. |
942336
|
[12] |
Spring washer
|
|
| 14. |
|
|
|
See group 27
|
| 15. |
|
|
|
See group 27
|
| 16. |
950021
|
[2] |
Cross recessed screw
|
|
| 17. |
21471054
|
[1] |
Bracket
|
For control cable 333, 33C.
|
| 18. |
6853782
|
[1] |
Cable clamp
|
For control cable 443, 43C.
|
| 19. |
819068
|
[1] |
Washer
|
|
| 20. |
836117
|
[1] |
Bracket
|
|
| 21. |
853217
|
[1] |
Cube
|
|
| 22. |
940191
|
[1] |
Washer
|
|
| 23. |
907824
|
[1] |
Split pin
|
|
| 24. |
|
|
|
See group 21
|
