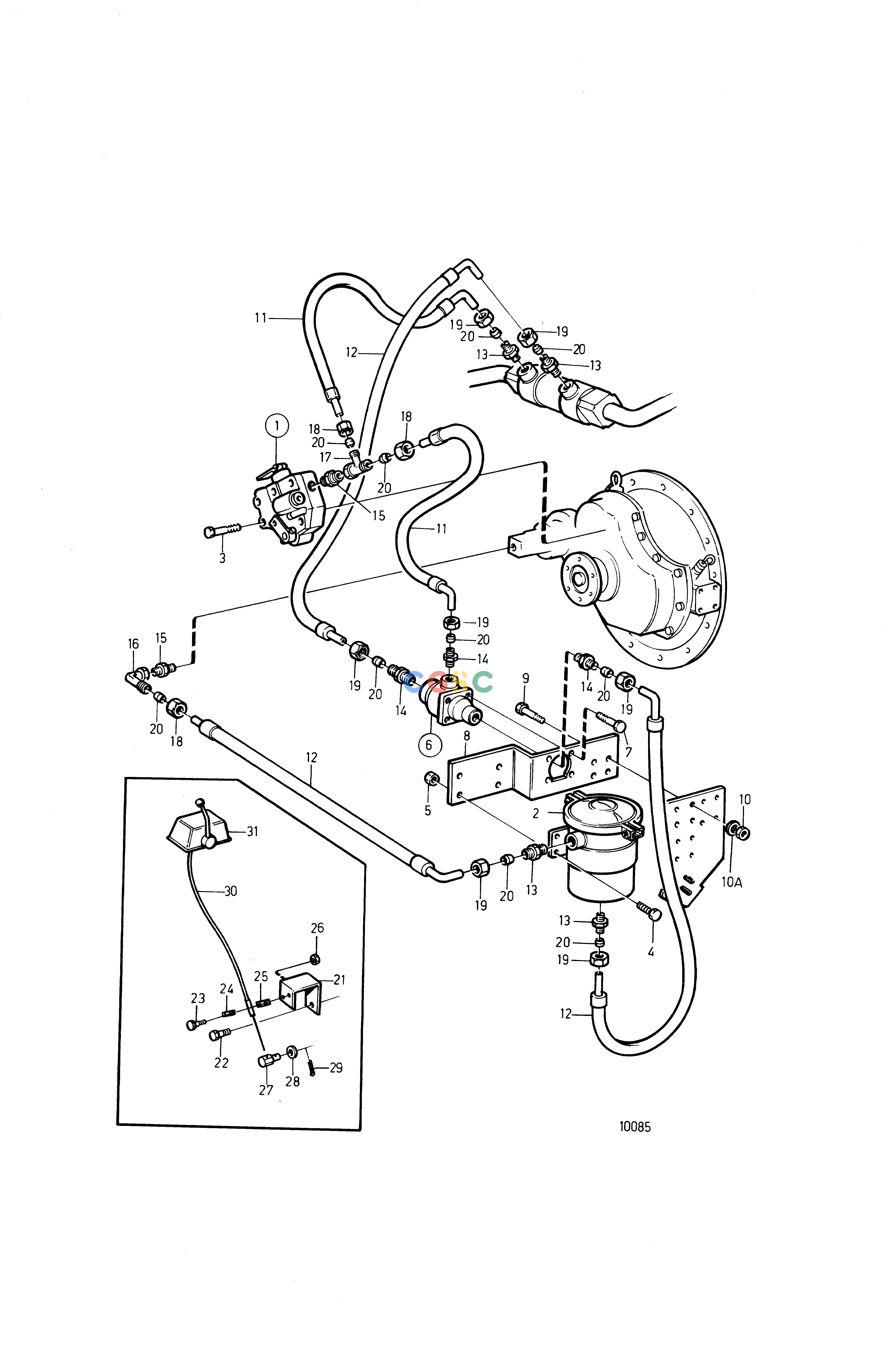

沃尔沃零件查询TAMD63L-A; TAMD63P-AClutch, Elastic CouplingTrolling ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
188 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863419
|
[1] |
Slip valve
|
For MG5061, 5061A
|
| 1. |
863421
|
[1] |
Slip valve
|
For MG507-1, 507A-1
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
946329
|
[4] |
Flange screw
|
|
| 5. |
971098
|
[4] |
Flange lock nut
|
|
| 6. |
863420
|
[1] |
Thermostat valve
|
|
| 7. |
940117
|
[4] |
Hexagon screw
|
|
| 8. |
863313
|
[1] |
Bracket
|
|
| 9. |
970900
|
[4] |
Hexagon screw
|
|
| 10. |
971072
|
[4] |
Hexagon nut
|
|
| 10A. |
940280
|
[4] |
Spring washer
|
|
| 11. |
837935
|
[2] |
Lubricating oil hose
|
L=420mm (837355)
|
| 12. |
837935
|
[3] |
Lubricating oil hose
|
L=460mm
|
| 13. |
968132
|
[4] |
Nipple
|
|
| 14. |
863418
|
[3] |
Nipple
|
|
| 15. |
941750
|
[2] |
Nipple
|
|
| 16. |
964016
|
[1] |
Elbow nipple
|
|
| 17. |
945837
|
[1] |
T-nipple
|
|
| 18. |
956984
|
[3] |
Fitting nut
|
|
| 19. |
941331
|
[7] |
Fitting nut
|
|
| 20. |
1677898
|
[10] |
Ferrule
|
(956970)
|
| 21. |
863295
|
[1] |
Bracket
|
|
| 22. |
946472
|
[1] |
Flange screw
|
|
| 23. |
956079
|
[2] |
Cross recessed screw
|
|
| 24. |
21471054
|
[1] |
Bracket
|
For control cable 333, 33C.
|
| 24. |
6853782
|
[1] |
Cable clamp
|
For control cable 443, 43C.
|
| 25. |
819068
|
[1] |
Washer
|
|
| 26. |
963104
|
[2] |
Lock nut
|
|
| 27. |
853217
|
[1] |
Cube
|
|
| 28. |
940191
|
[1] |
Washer
|
|
| 29. |
17253
|
[1] |
Split pin
|
|
| 30. |
|
|
|
See group 27
|
| 31. |
|
|
|
See group 27
|
