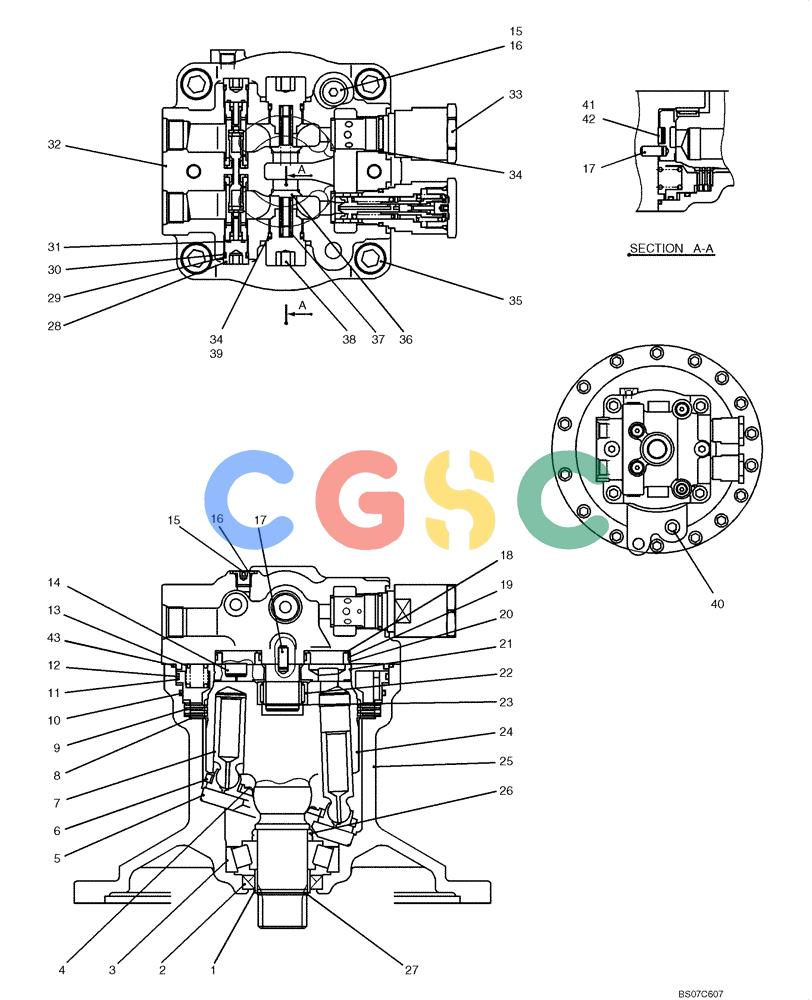

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-017[01]) - MOTOR ASSY (SWING) (YF15V00004F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF15V00004F1 | [1] | HYDRAULIC MOTOR | KOBMotor Assy, Swing |
| 1. | LQ15V00015S001 | [1] | SNAP RING | KOB |
| 2. | LQ15V00015S002 | [1] | OIL SEAL | KOB |
| 3. | LQ15V00015S003 | [1] | ROLLER BEARING | KOBRoller |
| 4. | LQ15V00015S004 | [1] | SPRING SEAT | KOB |
| 5. | LQ15V00015S005 | [1] | PLATE | KOBCam |
| 6. | LQ15V00015S006 | [1] | PLATE | KOBReturn |
| 7. | NSS | [9] | NOT SERVICED SEPARATELY | CONPiston Assy |
| 8. | LQ15V00015S008 | [3] | PLATE | KOB |
| 9. | LQ15V00015S009 | [3] | PLATE | KOB |
| 10. | 45Z91D91 | [1] | O-RING | KOB |
| 11. | LQ15V00015S011 | [1] | PISTON | KOBPiston |
| 12. | LQ15V00015S012 | [1] | O-RING | KOB |
| 13. | LQ15V00015S013 | [19] | SPRING | KOB |
| 14. | LQ15V00015S014 | [2] | PISTON | KOB |
| 15. | 2436U1309S41 | [3] | CAP | KOB |
| 16. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 17. | 2441U455S53 | [2] | PIN | KOB |
| 18. | LQ15V00015S018 | [4] | WASHER, LOCK | KOB |
| 19. | LQ15V00015S019 | [4] | RING | KOB |
| 20. | LQ15V00015S020 | [4] | BUSHING | KOB |
| 21. | LQ15V00015S021 | [1] | PLATE | KOB |
| 22. | LQ15V00015S022 | [1] | NEEDLE BEARING,45mm ID x 33mm OD x 20mm W | KOBNeedle |
| 23. | LQ15V00015S023 | [1] | RING | KOBSnap |
| 26. | LQ15V00015S026 | [1] | RING | KOBCollar |
| 27. | LQ15V00015S027 | [1] | SNAP RING | KOB |
| 28. | LQ20V00001F1 | [2] | HYDRAULIC VALVE | KOBBypass |
| 29. | LQ20V00001S008 | [2] | BACK-UP RING | KOB |
| 30. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 31. | ZD12P01200 | [2] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 33. | YF22V00002F1 | [2] | VALVE | KOBRelief; See Figure 08-08-00 |
| 34. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 35. | ZS23C16060 | [4] | SCREW,Hex Socket Head, M16 x 60mm | KOBM16x2.0x60mm |
| 36. | 2441U962S45 | [2] | CHECK VALVE | KOB |
| 37. | 2441U962S46 | [2] | SPRING | KOB |
| 38. | 2441U962S48 | [2] | PLUG | KOB |
| 39. | ZD85P02600 | [2] | BACK-UP RING | KOBID 26 x OD 32 x Th 1.25mm |
| 40. | LP15V00002S027 | [1] | PLUG | KOB |
| 41. | PH15V00004S013 | [2] | PISTON | KOB |
| 42. | PH15V00004S012 | [2] | RING | KOB |
| 43. | YF15V00004S043 | [1] | O-RING | KOB Superseded by part number: LQ15V00015S029 |
| K. | YF15V00015R100 | [1] | REPAIR KIT | KOBREPAIR KIT: CONSISTS OF 7x9, 22x1, 24x1 Superseded by part number: LQ15V00015R100 |
