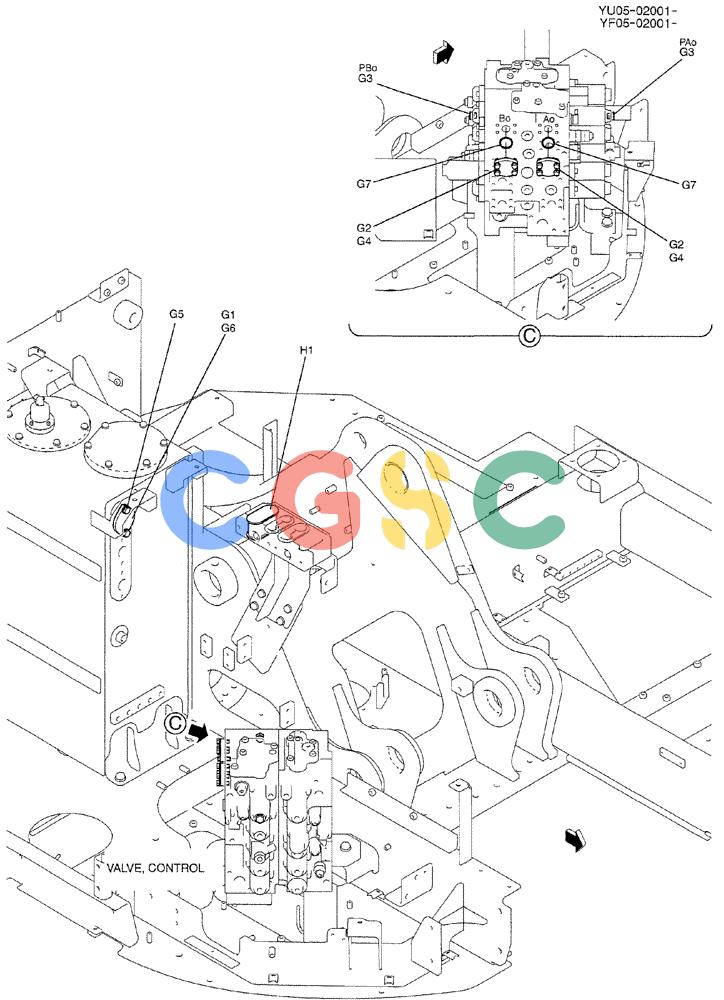

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-020[02]) - HYD LINES, UPP (MAIN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF03H00068F1 | [1] | HYD LINES, UPP | |
| . . | YF03H00037F1 | [1] | HYD LINES, UPP | |
| A1. | YF03H01086D2 | [1] | HOSE | KOB |
| A2. | LC03H01293D1 | [1] | HOSE,19mm ID x 1440mm L | KOB, Serial Range: YU05-02001-YU05-02034 |
| A2. | LC03H01293D9 | [1] | HOSE ASSY. | KOBHOSE, Start Serial: YU05-02035 |
| A3. | YF03H01090D1 | [1] | HOSE | KOBHOSE |
| A4. | YF03H01194D2 | [1] | HOSE | KOB |
| A5. | YF03H01194D3 | [1] | HOSE | KOB |
| A6. | YF03H01194D7 | [2] | HOSE | KOB |
| A7. | YF03H01195D1 | [1] | HOSE | KOBHOSE |
| A8. | YF03H01199D4 | [1] | HOSE | KOBHOSE |
| A9. | YF03H01199D5 | [1] | HOSE | KOBHOSE |
| A10. | YF03H01173P1 | [1] | TUBE | KOB |
| A11. | YF03H01174P1 | [1] | TUBE | KOB |
| A12. | YF03H01285P1 | [1] | SUPPORT | KOBSUPPORT |
| A13. | YF03H01259P1 | [1] | SUPPORT | KOB |
| A14. | YF03H01196P1 | [1] | SUPPORT | KOB |
| A16. | YF03H01203P1 | [1] | BRACKET | KOB |
| A17. | YF03H01242P1 | [1] | CLAMP | KOB |
| A19. | YF03H01209P1 | [1] | CLAMP | KOB |
| A20. | YN03H01840P1 | [1] | CLAMP | KOB |
| A21. | ZC27M28012 | [1] | CLAMP | KOB |
| A22. | ZC27M35014 | [1] | CLAMP | KOB |
| A23. | YF03H01255P1 | [1] | RUBBER BAND | KOB |
| A24. | YF03H01256P1 | [1] | RUBBER BAND | KOB |
| A25. | ZE12X16000 | [20] | CLAMP | KOBHALF |
| A26. | YF03H01222P1 | [2] | BOLT | KOB |
| A27. | ZS18C10065 | [1] | SCREW,Hex, M10 x 65mm | KOBCAP |
| A28. | ZS18C10080 | [2] | SCREW,Hex, M10 x 80mm | KOBCAP |
| A29. | ZS18C12075 | [1] | SCREW,Hex, M12 x 75mm | KOBCAP |
| A30. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| A31. | ZM73C10030 | [4] | BOLT,M10x30mm - Course Thread | KOBSEMS |
| A32. | ZM73C12030 | [4] | BOLT,M12x30mm - Course Thread | KOBSEMS |
| A33. | ZM73C12040 | [2] | BOLT,M12x40mm - Course Thread | KOBSEMS |
| A34. | HM83C10035G1 | [40] | BOLT | KOBSEMS |
| A35. | ZW16H10000 | [4] | WASHER | KOB |
| A36. | ZW16H12000 | [4] | WASHER | KOB |
| A37. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| A38. | ZN18C12010 | [1] | NUT | KOB |
| A39. | ZD12A01600 | [2] | O-RING | KOB |
| A40. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| A41. | ZD12A02100 | [3] | O-RING | KOB |
| A42. | ZD12P03400 | [10] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| A43. | YX03H01046P1 | [4] | CLIP | KOB |
| A44. | YF03H01286D1 | [1] | RUBBER PAD | KOBRUBBER |
| A45. | YF03H01286D2 | [1] | RUBBER PAD | KOBRUBBER |
| A46. | YF03H01287D1 | [1] | RUBBER PAD | KOBRUBBER |
| . . | YF03H00022F1 | [1] | HYD LINES, UPP | |
| B1. | YF03H01194D1 | [1] | HOSE | KOBHOSE |
| B2. | YF03H01087D5 | [1] | HOSE | KOB, Serial Range: YU05-02001-YU05-02009 |
| B2. | YF03H01194D8 | [1] | HOSE ASSY. | KOBHOSE, Start Serial: YU05-02035 |
| B6. | HG24F12012G1 | [1] | HYD CONNECTOR | KOB |
| B7. | ZG33F12012 | [1] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB |
| B8. | 2444Z3405 | [1] | ELBOW | KOB |
| . . | YF03H00039F1 | [1] | HYD LINES, UPP | |
| C1. | YF03H01216P1 | [1] | PLATE | KOB |
| C2. | ZM73C12025 | [2] | BOLT,M12x25mm - Course Thread | KOBSEMS |
| . . | YF03H00040F1 | [1] | HYD LINES, UPP | |
| D1. | YF03H01246P1 | [1] | RUBBER BAND | KOB |
| . . | YF03H00043F1 | [1] | HYD LINES, UPP | |
| E1. | YF03H01218P1 | [1] | PLATE | KOB |
| E2. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBM08x1.25x16mm (Incls. Washer) |
| . . | YF03H00059F1 | [1] | HYD LINES, UPP | |
| F1. | YF03H01197P1 | [1] | SUPPORT | KOBSUPPORT |
| . . | YF03H00071F1 | [1] | HYD LINES, UPP | |
| G1. | YN03H01884P1 | [1] | PLUG | SM |
| G2. | ZE12Q16000 | [2] | PLUG | KOB |
| G3. | ZE72X06000 | [2] | PLUG | KOB |
| G4. | HM83C10030G1 | [8] | BOLT | KOBSEMS |
| G6. | ZD12P04800 | [1] | O-RING,3.5mm Thk x 47.7mm ID | KOB |
| . . | YF03H00070F1 | [1] | HYD LINES, UPP | |
| H1. | YF03H01273P1 | [1] | RUBBER PAD | KOBRUBBER |
