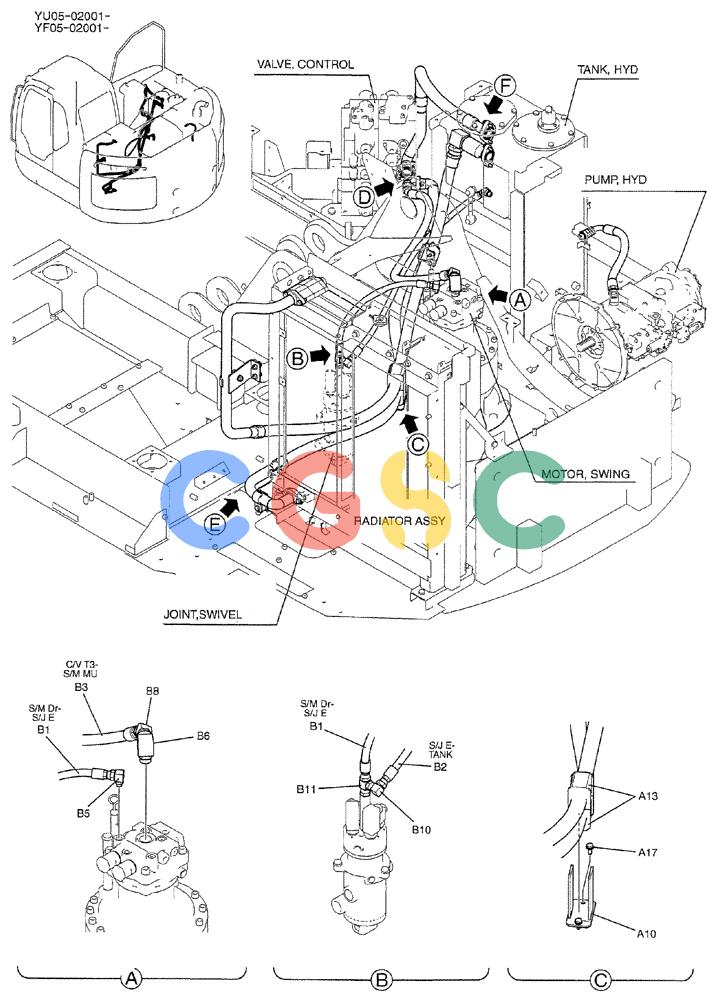

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-023[01]) - HYD LINES, RETURN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
706 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF32H00008F1 | [1] | HYD LINES, RETURN | |
| . . | YF32H00009F1 | [1] | HYD LINES, RETURN | |
| A1. | YF32H01072D2 | [1] | HOSE | KOB |
| A2. | YF32H01058D1 | [1] | HOSE | KOB |
| A3. | YF32H01046D1 | [1] | HOSE | KOB |
| A4. | ZX32M12052 | [1] | HOSE | KOBHOSE Superseded by part number: ZX32M12055 |
| A5. | YF32H01070P1 | [1] | WIRE CONNECTOR | KOB |
| A6. | YF32H01080P1 | [1] | TUBE | KOBTUBE |
| A7. | YF32H01074P1 | [1] | SUPPORT | KOB |
| A8. | YF32H01034P1 | [1] | SUPPORT | KOB |
| A9. | YF32H01049P1 | [1] | SUPPORT | KOB |
| A10. | YF32H01062P1 | [1] | SUPPORT | KOB |
| A11. | YN32H01066P1 | [2] | CLAMP | KOB |
| A12. | YF32H01009P1 | [1] | BUSHING,45mm ID x 55mm OD x 80mm L | KOB |
| A13. | YF32H01059P1 | [2] | BUSHING | KOB |
| A14. | ZH22X12000 | [1] | HYD CONNECTOR | KOB |
| A16. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| A17. | ZM73C10025 | [2] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
| A18. | ZM73C12030 | [2] | BOLT,M12x30mm - Course Thread | KOBSEMS |
| A19. | ZM73C12035 | [2] | BOLT,M12x35mm - Course Thread | KOBSEMS |
| A20. | HM83C12035G1 | [12] | BOLT | KOBSEMS |
| A21. | ZS18C12055 | [2] | SCREW,Hex, M12 x 55mm | KOBCAP |
| A22. | ZN18C12010 | [2] | NUT | KOB |
| A23. | ZW16H12000 | [2] | WASHER | KOB |
| A24. | ZD12P04800 | [4] | O-RING,3.5mm Thk x 47.7mm ID | KOB |
| A25. | HH35S24024G1 | [1] | ELBOW | KOB |
| A26. | 2436R393S4 | [1] | VALVE | KOBCHECK |
| . . | YF32H00006F1 | [1] | HYD LINES, RETURN | |
| B1. | ZX22M08064 | [1] | HOSE | KOBHOSE Superseded by part number: ZX22M08065 |
| B3. | ZX42M12130 | [1] | HOSE | KOBHOSE |
| B5. | 2444R399D9 | [1] | HYD CONNECTOR | KOB |
| B6. | HH35R16016G1 | [1] | ELBOW | HIT |
| B7. | ZH42X08000 | [1] | 45 ELBOW,Male, 30° Fl, PF 1/2" x PF 1/2", O-Ring | KOB |
| B8. | ZH42X12016 | [1] | 45 ELBOW,Male, 30° Fl, PF 3/4" x PF 1", O-Ring | KOB |
| B10. | 2444R596D3 | [1] | ELBOW | KOB |
| B11. | 2444R597D3 | [1] | TEE | KOBTEE |
