久保田零件查询E00502 BRAKE ROD BRAKEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
121 次

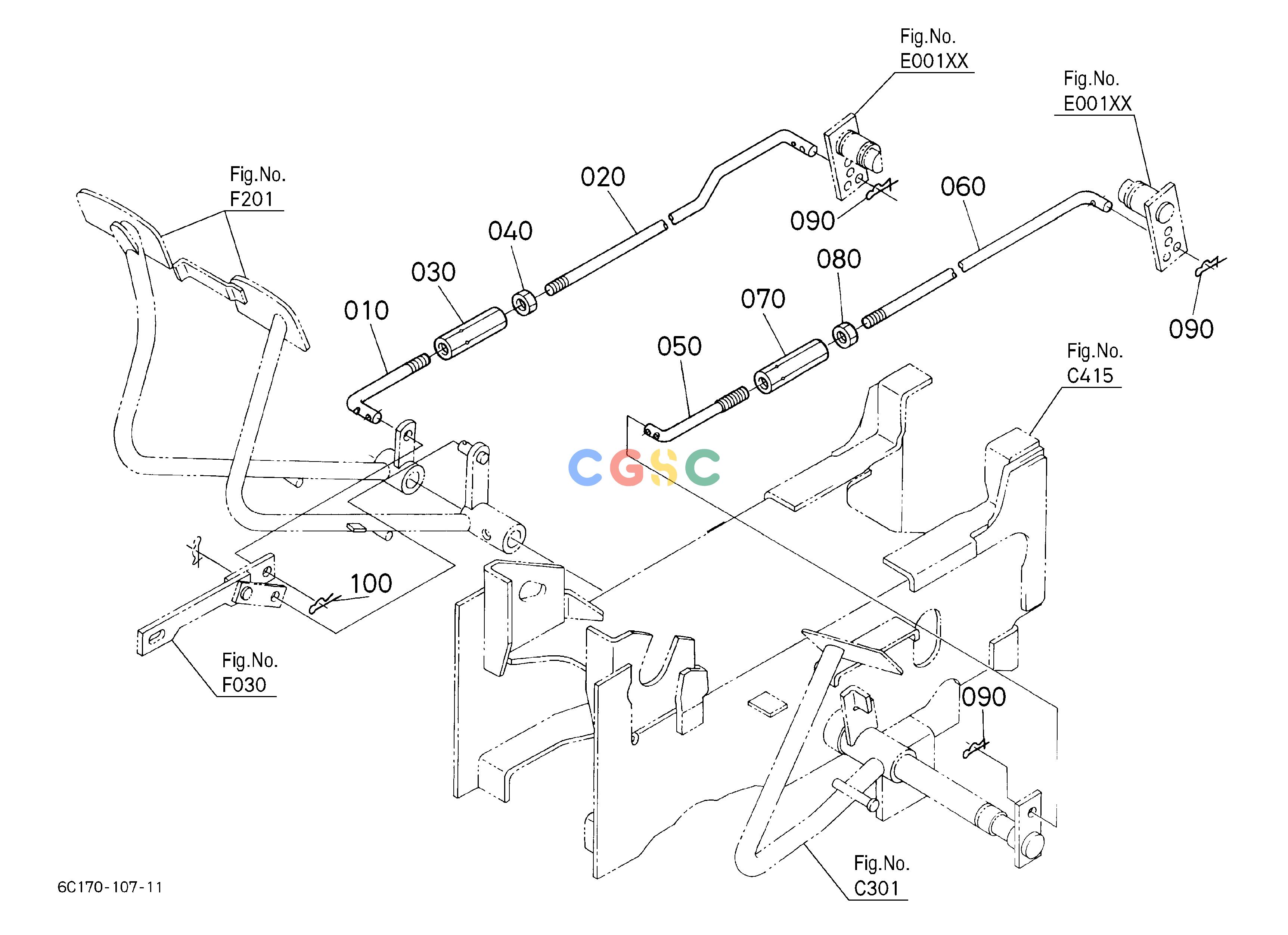

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04042350
|
[1] |
ROD BRAKE FRONT
|
0.1496(lbs); 0.068
|
| 020. |
6C17042360
|
[1] |
ROD BRAKE REAR
|
0.6160(lbs); 0.280
|
| 030. |
6C04042370
|
[1] |
TURNBUCKLE
|
0.1320(lbs); 0.060
|
| 040. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
6C04042350
|
[1] |
ROD BRAKE FRONT
|
0.1496(lbs); 0.068
|
| 060. |
6C07042360
|
[1] |
ROD BRAKE REAR
|
0.5940(lbs); 0.270
|
| 070. |
6C04042370
|
[1] |
TURNBUCKLE
|
0.1320(lbs); 0.060
|
| 080. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
6C04042390
|
[3] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 100. |
0552561000
|
[1] |
PIN SNAP
|
0.0044(lbs); 0.002
|
