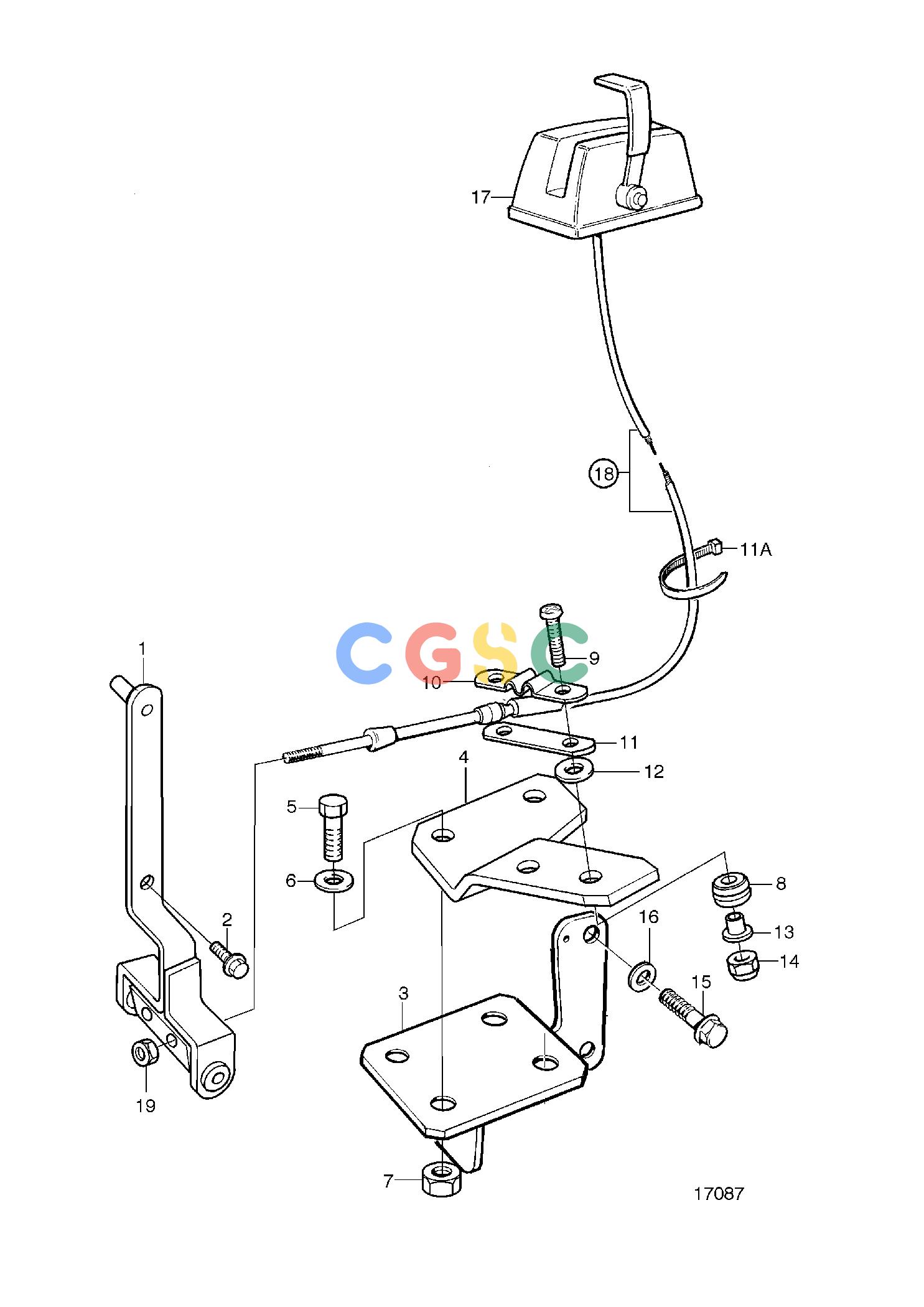

沃尔沃零件查询TAMD63L-A; TAMD63P-AControlsEngine Speed ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825214
|
[1] |
Intermediate lever
|
|
| 2. |
955272
|
[1] |
Hexagon screw
|
|
| 3. |
866652
|
[1] |
Bracket
|
|
| 4. |
3825293
|
[1] |
Bracket
|
|
| 5. |
946329
|
[2] |
Flange screw
|
|
| 6. |
190509
|
[2] |
Washer
|
|
| 7. |
971098
|
[2] |
Flange lock nut
|
|
| 8. |
824834
|
[2] |
Bushing
|
|
| 9. |
956080
|
[2] |
Cross recessed screw
|
|
| 10. |
850182
|
[1] |
Cable attachment
|
|
| 11. |
850183
|
[1] |
Spacer
|
|
| 11A. |
948211
|
[1] |
Cable tie
|
|
| 12. |
960138
|
[2] |
Washer
|
|
| 13. |
824830
|
[2] |
Spacer sleeve
|
|
| 14. |
963104
|
[2] |
Lock nut
|
|
| 15. |
|
|
|
See group 21
|
| 16. |
|
|
|
See group 21
|
| 17. |
7740790_079
|
|
Control
|
|
| 18. |
7740790_084
|
|
Control cable
|
|
| 19. |
|
|
|
|
