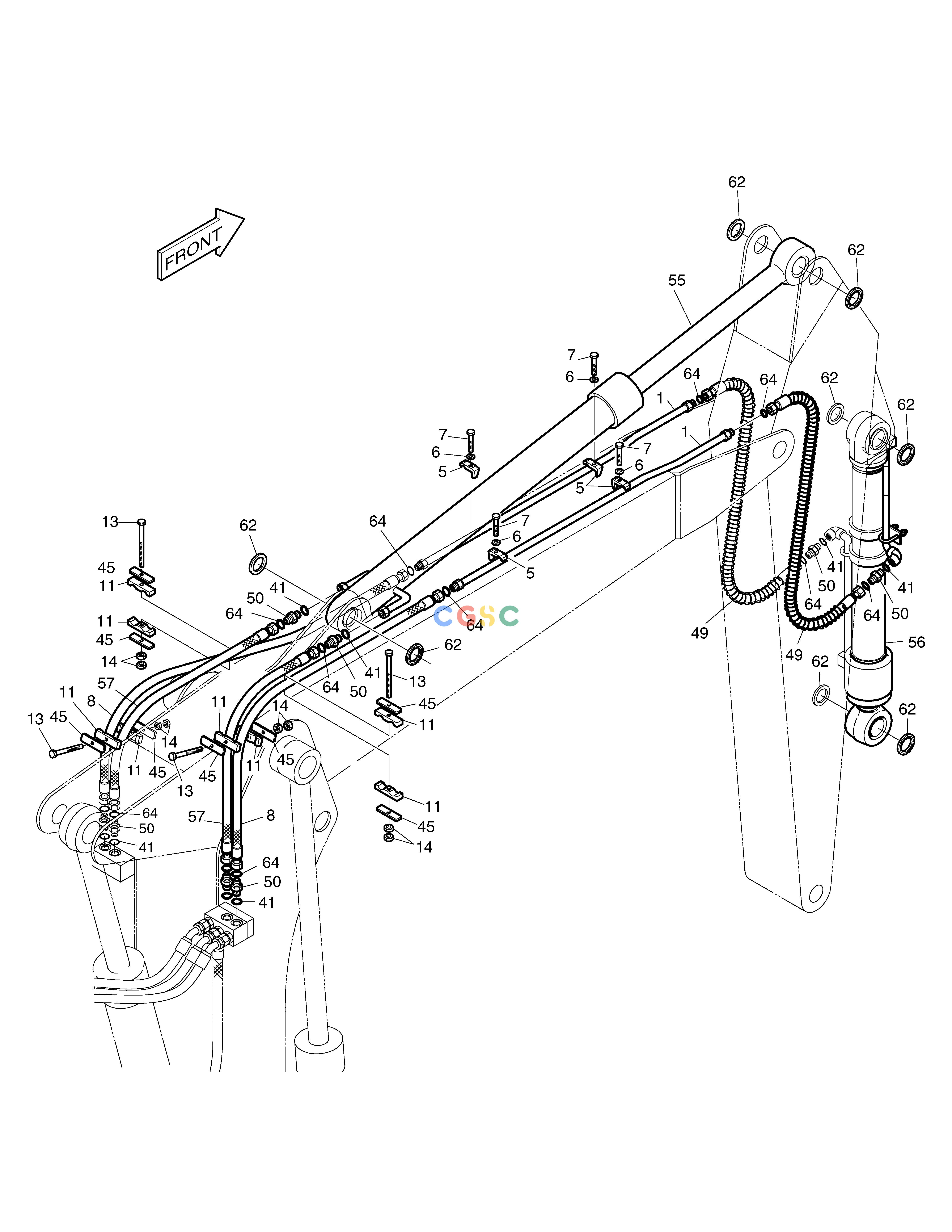

斗山零件查询FRONT PIPING(2) FOR ARTI. BOOM SOLAR 130LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1417F1
|
[-] |
PIPING;FRONT
|
|
| 1. |
2183-3427
|
[2] |
PIPE
|
|
| 11. |
2124-1226
|
[8] |
CLAMP
|
|
| 13. |
S0559553
|
[4] |
BOLT M10X1.5X100
|
|
| 14. |
S4012633
|
[8] |
NUT
|
|
| 41. |
S8000241
|
[8] |
O-RING
|
|
| 45. |
2191-4291
|
[12] |
PLATE
|
|
| 49. |
2184-1196D5
|
[2] |
HOSE-1450L
|
|
| 5. |
2124-1026D2
|
[4] |
CLAMP
|
|
| 50. |
2181-4133D5
|
[8] |
. ADAPTER
|
|
| 55. |
2440-9126
|
[1] |
CYLINDER;ARM
|
|
| 56. |
2440-9127
|
[1] |
CYLINDER;BUCKET
|
|
| 57. |
2184-1196D10
|
[2] |
HOSE UNF1 3/16-12-1700L
|
|
| 6. |
S5102703
|
[4] |
WASHER
|
|
| 62. |
2180-1106D4
|
[8] |
SEAL;DUST
|
|
| 64. |
S8030121
|
[12] |
O-RING
|
|
| 7. |
S0560753
|
[4] |
BOLT M12X1.75X50
|
|
| 8. |
2184-1196D11
|
[2] |
HOSE PF3/4-2150L
|
|
