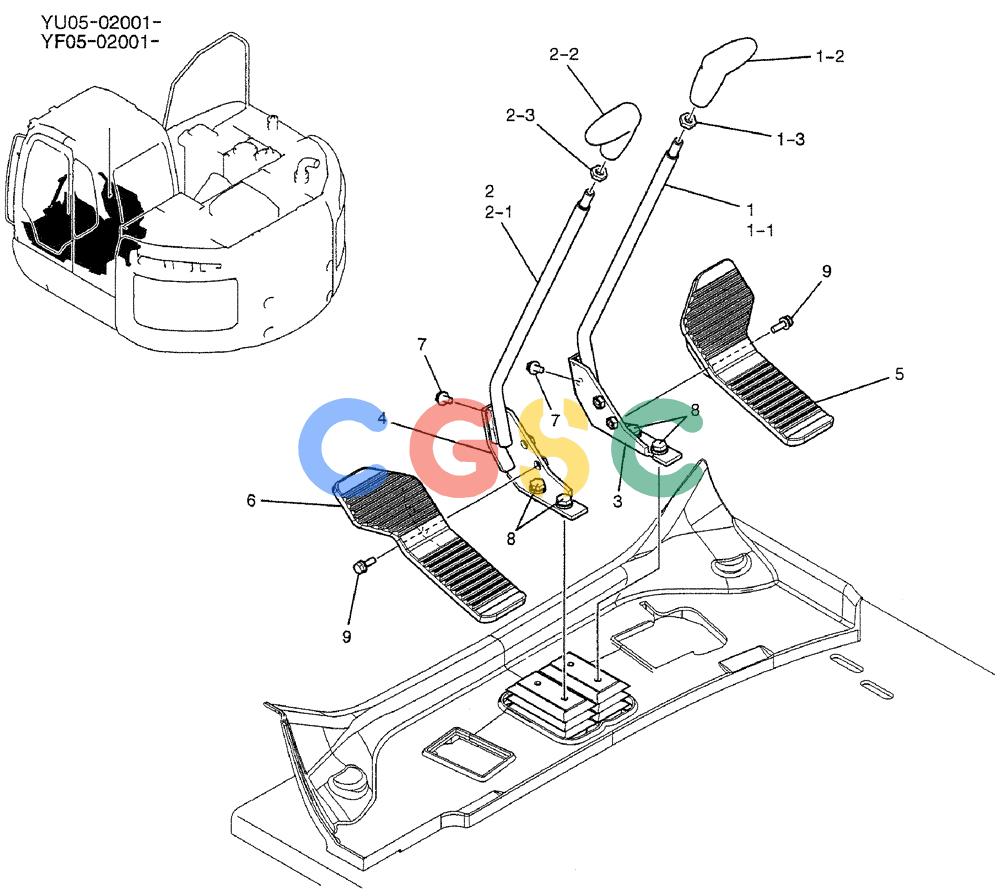

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-029) - LEVER ASSY, PROPEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
113 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN50M00015F1 | [1] | LEVER | KOBLEVER ASSY, PROPEL |
| 1. | YN50M01051F1 | [1] | LEVER | KOBASSY |
| 1-1. | YN50M01053P1 | [1] | LEVER | KOB |
| 1-2. | YN03M01040P1 | [1] | GRIP | KOB |
| 1-3. | 2420Z1232 | [1] | NUT | KOB |
| 2. | YN50M01052F1 | [1] | LEVER | KOBASSY |
| 3. | YN50M01056P1 | [1] | SUPPORT | KOB |
| 4. | YN50M01057P1 | [1] | SUPPORT | KOB |
| 5. | YN55M01010P1 | [1] | PEDAL | SM |
| 6. | YN55M01011P1 | [1] | PEDAL | SM |
| 7. | ZM73C08016 | [4] | BOLT,M8x16mm - Course Thread | KOBM08x1.25x16mm (Incls. Washer) |
| 8. | ZM73C10020 | [4] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| 9. | ZM22C08025 | [4] | BOLT | KOBSEMS |
