沃尔沃零件查询TAMD63L-A; TAMD63P-ACooling SystemAftercoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
200 次

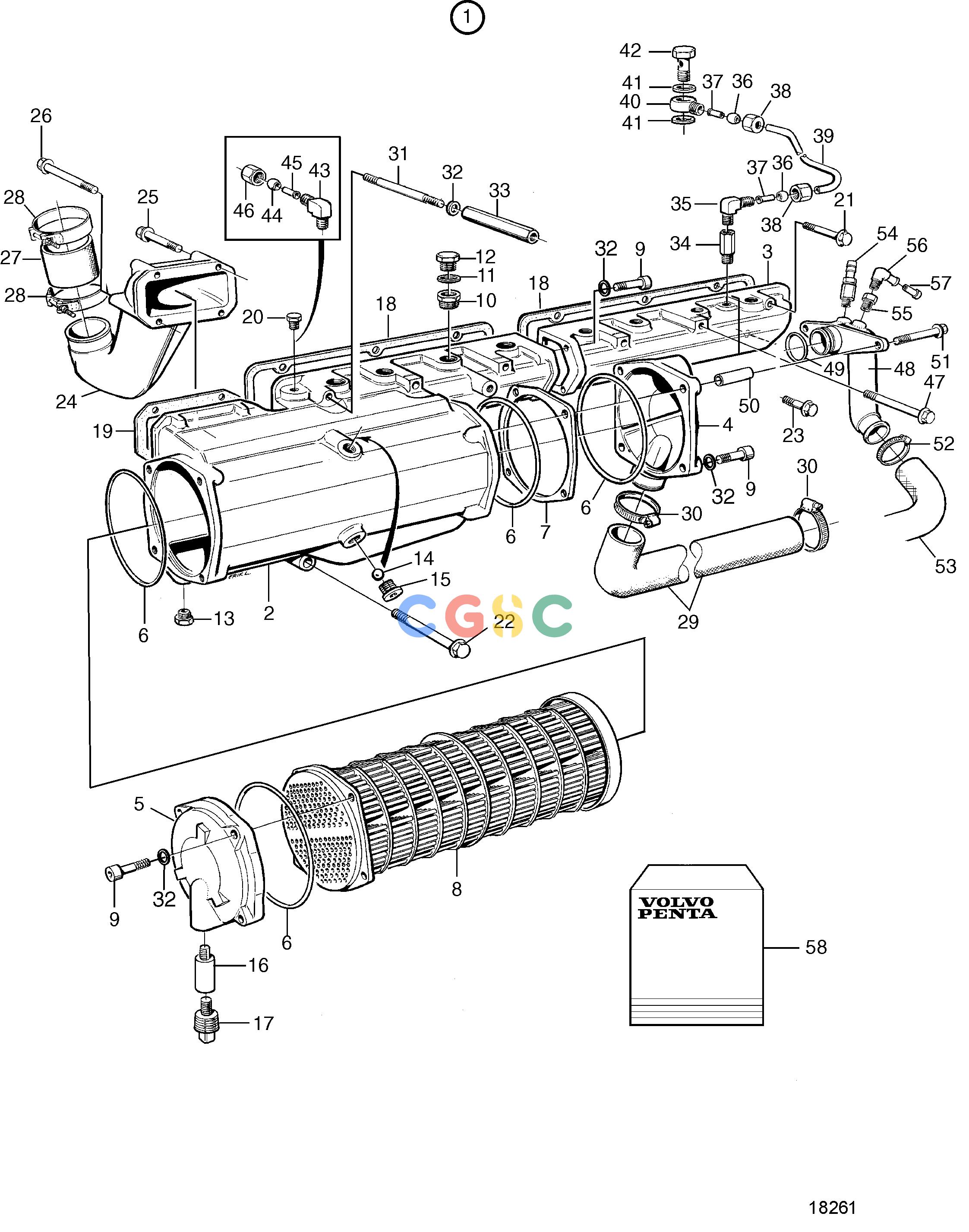

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866178
|
[1] |
Charge air cooler
|
|
| 2. |
866595
|
[1] |
Housing
|
|
| 3. |
866598
|
[1] |
Pipe
|
|
| 4. |
866596
|
[1] |
End plate
|
|
| 5. |
866597
|
[1] |
End plate
|
|
| 6. |
949272
|
[4] |
O-ring
|
|
| 7. |
866593
|
[1] |
Spacer
|
|
| 8. |
866599
|
[1] |
Charge air cooler
|
|
| 9. |
959224
|
[10] |
Hex. socket screw
|
|
| 10. |
866600
|
[8] |
Adapter
|
|
| 11. |
969011
|
[8] |
Gasket
|
|
| 12. |
960630
|
[8] |
Plug
|
|
| 13. |
866760
|
[1] |
Plug
|
|
| 14. |
866758
|
[2] |
Ball
|
|
| 15. |
866759
|
[2] |
Plug
|
|
| 16. |
838929
|
[1] |
Anode
|
|
| 17. |
838928
|
[1] |
Plug
|
|
| 18. |
3829434
|
[2] |
Intake gasket
|
Included in kit 876725., See group 99
|
| 19. |
866688
|
[1] |
Gasket
|
Included in kit 876725., See group 99
|
| 20. |
981749
|
[1] |
Plug
|
|
| 21. |
965216
|
[1] |
Flange screw
|
|
| 22. |
973096
|
[1] |
Flange screw
|
M10x130mm
|
| 23. |
946671
|
[6] |
Flange screw
|
|
| 24. |
866212
|
[1] |
Tube
|
|
| 25. |
965216
|
[2] |
Flange screw
|
|
| 26. |
965183
|
[2] |
Flange screw
|
|
| 27. |
866689
|
[1] |
Hose
|
|
| 28. |
1544731
|
[2] |
Hose clamp
|
|
| 29. |
866217
|
[1] |
Hose
|
|
| 30. |
961672
|
[2] |
Hose clamp
|
|
| 31. |
953062
|
[1] |
Stud
|
M8x100mm
|
| 32. |
941907
|
[11] |
Spring washer
|
|
| 33. |
3825171
|
[1] |
Spacer
|
|
| 34. |
862109
|
[1] |
Nipple
|
|
| 35. |
954385
|
[1] |
Elbow nipple
|
|
| 36. |
954364
|
[2] |
Sleeve
|
|
| 37. |
944717
|
[2] |
Support sleeve
|
|
| 38. |
954356
|
[2] |
Fitting nut
|
|
| 39. |
945460
|
[1] |
Tube
|
Alt, L=640mm
|
| 40. |
945417
|
[1] |
Banjo nipple
|
|
| 41. |
11994
|
[2] |
Gasket
|
|
| 42. |
969299
|
[1] |
Hollow screw
|
|
| 43. |
954385
|
[1] |
Elbow nipple
|
Alt
|
| 44. |
954364
|
[1] |
Sleeve
|
Alt
|
| 45. |
944717
|
[1] |
Support sleeve
|
Alt
|
| 46. |
954356
|
[1] |
Fitting nut
|
Alt
|
| 47. |
965182
|
[4] |
Flange screw
|
For engines in keel cooled version., M8x80mm
|
| 48. |
3825869
|
[1] |
Coolant pipe
|
For engines in keel cooled version.
|
| 49. |
866690
|
[1] |
O-ring
|
For engines in keel cooled version., Included in kit 876725.
|
| 50. |
842351
|
[2] |
Spacer sleeve
|
For engines in keel cooled version.
|
| 51. |
965183
|
[2] |
Flange screw
|
For engines in keel cooled version., M8x90mm
|
| 52. |
961672
|
[1] |
Hose clamp
|
For engines in keel cooled version.
|
| 53. |
866218
|
[1] |
Hose
|
After cooler-oil cooler., For engines in keel cooled version.
|
| 54. |
949918
|
[1] |
Shut-off cock
|
For engines in keel cooled version.
|
| 55. |
180002
|
[1] |
Nipple
|
For engines in keel cooled version.
|
| 56. |
479953
|
[1] |
Elbow nipple
|
For engines in keel cooled version.
|
| 57. |
865754
|
[1] |
Throttle sleeve
|
For engines in keel cooled version.
|
| 58. |
876725
|
[1] |
Intake gasket kit
|
See group 99
|
