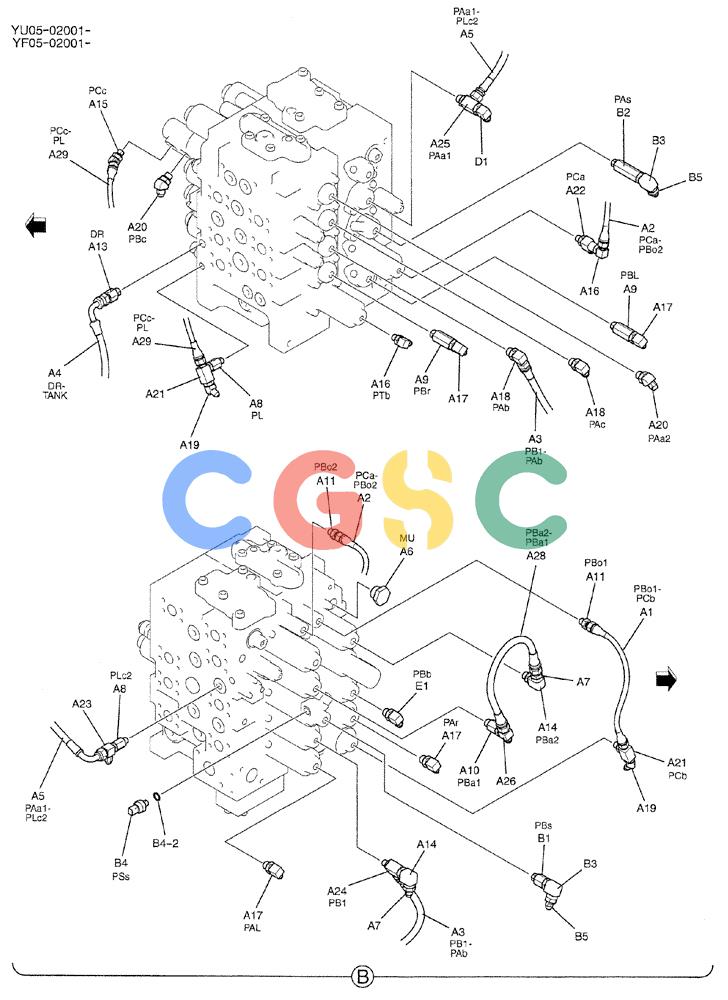

| . . | YF06H00028F1 | [1] | CONTROL LINES, MAIN | |
| . . | YF06H00018F1 | [1] | CONTROL LINES, MAIN | |
| A1. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB |
| A2. | 2420R349D110 | [1] | HOSE,1100.00 mm | KOB Superseded by part number: HX21E04110DX |
| A3. | 2420R537D110 | [1] | HOSE ASSY.,9.60mm ID x 1100mm L | KOBASSY Superseded by part number: HX21E06110DX |
| A4. | 2444R941D12 | [1] | FLEXIBLE HOSE | KOB, Serial Range: YU05-02001-YU05-02023 |
| A4. | 2444R941D15 | [1] | HOSE ASSY. | KOBHOSE, Start Serial: YU05-02024 |
| A5. | HX33L06048DX | [1] | HYDRAULIC HOSE | KOB |
| A6. | ZE72X12000 | [1] | PLUG | KOB |
| A7. | YN21V00005F1 | [2] | CHECK VALVE | KOBASSY, CHECK |
| A8. | 2444Z2525 | [2] | HYD CONNECTOR | KOB |
| A9. | 2444Z3711 | [2] | HYD CONNECTOR | KOB, Serial Range: YU05-02001-YU05-02023 |
| A10. | 2444Z2891 | [1] | HYD CONNECTOR | KOB |
| A11. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| A12. | ZH22X06000 | [2] | HYD CONNECTOR | KOB, Serial Range: YU05-02001-YU05-02023 |
| A13. | HH25X06006G2 | [1] | WIRE CONNECTOR | KOB |
| A14. | 2444Z3155 | [2] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| A15. | YN06H01045P1 | [1] | 45 ELBOW | SM |
| A16. | ZH32X04000 | [2] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB |
| A17. | ZH32X04006 | [4] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| A18. | ZH32X06000 | [2] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| A19. | ZH42X04000 | [2] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB |
| A20. | ZH42X06000 | [3] | 45 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOB, Serial Range: YU05-02001-YU05-02023 |
| A21. | 2444T2529 | [2] | TEE | KOBTEE |
| A22. | 2444Z2461 | [1] | TEE | KOB |
| A23. | 2444T3309 | [1] | TEE | KOB |
| A24. | 2444T3186 | [1] | TEE | KOB |
| A25. | 2444T3402 | [1] | HYD CONNECTOR | KOB Superseded by part number: HH55V06006G3 |
| A26. | ZH52X06000 | [1] | TEE,30° Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB |
| A27. | PY01P01043D6 | [2] | CABLE TIE,4.80mm W x 383mm L | KOB |
| A28. | 2420R537D040 | [1] | HOSE ASSY.,9.60mm ID x 400mm L | KOB |
| A29. | 2420R349D026 | [1] | FLEXIBLE HOSE | SM Superseded by part number: 2420R349D030 |
| . . | YF06H00019F1 | [1] | CONTROL LINES, MAIN | |
| B2. | HH25R06006G2 | [1] | HYD CONNECTOR | KOB |
| B4. | LC52S00019P1 | [1] | SENSOR | SMPressure (Low Pressure) -- Replaced YX52S00013P1 (Incls. O-Ring ZD12P01100) |
| B4-2. | ZD12P01100 | [1] | O-RING | KOB(Part of LC52S00019P1), ID 10.80 ± 0.18 x OD 15mm |
| B5. | YN21V00005F2 | [2] | CHECK VALVE | KOBASSY, CHECK |
| . . | YF06H00029F1 | [1] | CONTROL LINES, MAIN | |
| C1. | ZE72X06000 | [2] | PLUG | KOB |
| . . | YF06H00023F1 | [1] | CONTROL LINES, MAIN | |
| . . | YF06H00024F1 | [1] | CONTROL LINES, MAIN | |
